Ms600-Fg2 W​​Ifi Portable Flue Gas Analyzer In Petroleum Chemical Industry Environmental Protection

Place of Origin China
Brand Name Zetron
Certification CE, ISO13485, ISO9001
Model Number MS600-FG2
Minimum Order Quantity 1
Packaging Details paper carton
Delivery Time 3-7 days
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 1000 set/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Function Portable Gas Analyzer Allowable Error ≤±1% F.S (other Precision Levels Can Be Customized)
Power Supply 3.6VDC, 6000mA High Capacity Rechargeable Polymer Battery Display Mode 2.5-inch High-definition Color Screen
Response Time T90≤20 Seconds Recovery Time ≤30 Seconds
High Light

w​​ifi portable flue gas analyzer

,

petroleum portable flue gas analyzer

,

w​​ifi portable flue gas analyser

Leave a Message
Product Description

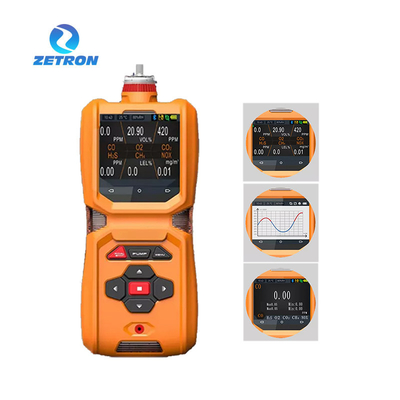

MS600-FG2 Portable Flue Gas Analyzer



OVERVIEW



MS600-FG2 can effectively predict the concentration of dangerous gas alarms, ensuring that staff life's safety is not threatened, and production equipment is not lost.
The stainless steel probe and cone-stop are perfect for residential furnace, boiler, and water heater applications. With six different fuels to select from, it provides the flexibility you need for your tuning opportunities.



Multi-alarm Mode:Concentration Alarm, Unde-voltage, AlarmFault Alarm
Lithium battery powered:  Large capacity, Long usage time, Rechargeable
Printing function: Wifi Connnect, real-time printing of test data

PARAMETER



Gases to be detected
Arbitrary combination of 1 ~ 6 types of gases such as toxic gases, oxygen gas, carbon dioxide, inflammable and explosive gases, TVOC, and so on.Optional configuration: temperature and humidity measurements.
Application scenarios
All the cases which require the portable rapid detection of gas concentrations such as petroleum, chemical, pharmaceutical, environmental protection, combustion gas distribution, warehousing, smoke gas analysis, air governance, and so on.
Detection range
0 ~ 1, 10, 100, 1000, 5000, 50000, 100000ppm, 200 mg/L, 100%LEL, 20%, 50%, 100%Vol, can be selected; and other ranges can be customized.
Resolution
0.01ppm or 0.001ppm (0 ~ 10 ppm);
0.01ppm (0 ~ 100 ppm),
0.1ppm (0 ~ 1000 ppm),
1ppm (0 ~ 10000 ppm or more),
0.01 mg/l (0 ~ 200 mg/l),
0.1% LEL,
0.01%LEL
0.001% Vol
Detection principle
Electrochemical, catalytic combustion, infrared, thermal conductivity,
PID photoionization, and so on.
Depending on the type of gas, range, field environment and user demand.
Sensor service life
Electrochemical principle: 2 ~ 3 years;
Oxygen gas: 2 years or 6 years can be selected;
Infrared principle: 5 ~ 10 years;
Catalytic combustion: 3 years;
Thermal conductivity: 5 years;
PID photoionization: 2 ~ 3 years.
Allowable error
≤±1% F.S (other precision levels can be customized)
Linearity
≤±1%
Repeatability
≤±1%
Uncertainty
≤±1%
Response time
T90≤20 seconds
Recovery time
≤30 seconds
Working environment
Temperature: -40 ℃ ~ + 70 ℃, humidity: ≤10 ~ 95% RH, and built-in filters can be used in high humidity or high dust environment.
Sample gas temperature
-40 ℃ ~ + 70 ℃, and the optional configuration of high-temperature sampling and cooling filter handle will be possible to detect the smoke gas at the temperature of 1300 ℃.
Temperature and humidity measurement
Optional configuration: temperature at -40 ℃ ~ + 70 ℃, accuracy level at 0.5 ℃; humidity at 0 ~ 100% RH, precision level at 3 % RH
Power supply
3.6VDC, 6000mA high capacity rechargeable polymer battery
Display mode
2.5-inch high-definition color screen
Detection mode
Built-in pump-suction type measurement, and flow rate at 500 ml / min. Calibration flow rate should be greater than 500 ml/min,
the three-way pipe should be connected, so as to ensure that the excessive gas will be discharged from the bypass
Alarm mode
It is possible to set a sound & light alarm, vibration alarm, sound & light + vibration alarm, turning off the alarm.
Communication interface
USB (charging and communication), optional: RS232, infrared communication, automatic recognition
Data storage
Standard configuration is the data storage capacity for 100, 000 entries; SD card storage function is optional configuration
Protection level
IP67
Explosion-proof type
Intrinsically safe type
Explosion-proof mark
Exia II CT6
Exterior dimensions
180×78×33mm (L×W×H)
Weight
350g
Standard accessories
Manual, qualification certificate, warranty card, USB charger (including the data cable), high-grade aluminum instrument case, belt clip, humidity dust filter
Optional items
1)Temperature and humidity measurement function
2)1.2 m retractable sampling handle (1-10 meter hose, and the standard length is 1meter)
3) 0.4 meter stainless steel sampling handle (with dust filter, not retractable), 4) high temperature sampling and cooling filter handle
5) high temperature humidity pretreatment system
6) multiple humidity dust filter
7) hanging rope, CD-ROM (upper level computer communication software)
8) SD card storage, wireless data communications, external mini wireless
infrared printer



APPLICATION



The detector is widely used in petroleum, chemical industry, environmental protection, metallurgy, refining, biochemical medicine, agriculture, and explosion prevention.
