UV-2100 Ozone Gas Analyzer Embedded Benchtop Negative Pressure

  • UV-2100 Ozone Gas Analyzer Embedded Benchtop Negative Pressure
  • UV-2100 Ozone Gas Analyzer Embedded Benchtop Negative Pressure
Place of Origin China
Brand Name Zetron
Certification CE, ISO13485, ISO9001
Model Number UV-2100
Minimum Order Quantity 1
Packaging Details paper carton
Delivery Time 3-7 days
Payment Terms T/T, L/C, Western Union, MoneyGram
Supply Ability 1000 set/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Range 0-40g/m3NTP (optional Range 0-100g/m3, 0-200g/m3, 0-250g/m3) Display Resolution 0.01 G/m3
Gas Flow 0.8L±0.2L/min Input Pressure <0.1 MPa
Communication Mode RS-485 Size 155*68*240mm
Highlight

uv 2100

,

uv 2100 ozone gas analyzer

,

embedded ozone gas analyzer
Leave a Message
Product Description

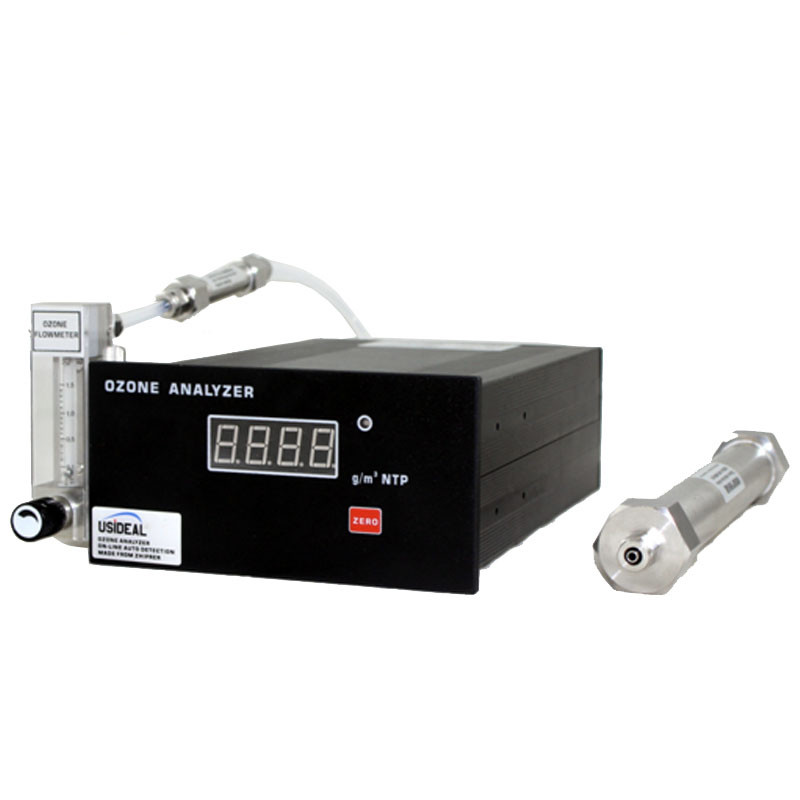

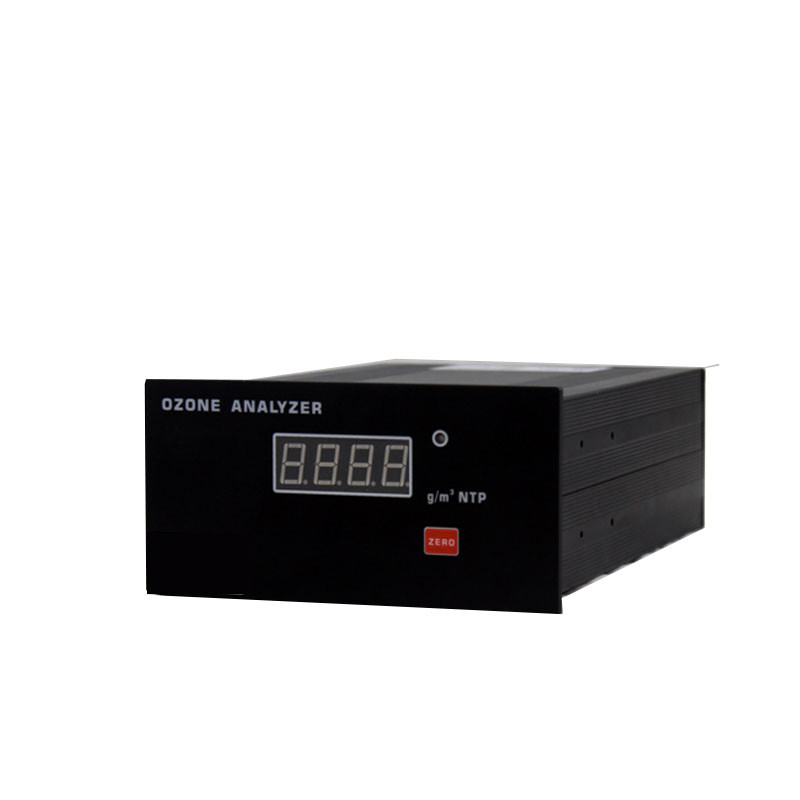

UV-2100 Ozone Gas Analyzer

OVERVIEW



UV-2100 negative pressure embedded (benchtop) ozone gas analyzer This ozone gas analyzer is mainly used for ozone concentration measurement in the ozone generator pipeline, and can continuously detect the ozone concentration in the ozone generator outlet pipeline online. It is mainly used for continuous detection of ozone gas in various industrial environments, and can also be used to detect ozone gas in operating pipelines, vessels and other environments. It is widely used in pharmaceutical, chemical, municipal and wastewater treatment industries to measure the ozone generator outlet concentration and ozone generator output.


This ozone gas analyzer is based on Lambert-Beer law, which calculates the current ozone concentration value by measuring the change of light signal intensity before and after ozone absorption of UV light. The equipment uses advanced dual-optical UV light source system with lamp intelligent management system, which can make the UV lamp reach the measurement status quickly after the power is turned on, and adopts German separated light cell technology.


The equipment automatically zero blowing once every certain time to ensure the stability of the zero point, to prevent the zero point drift affect the accuracy of the detection concentration, the gas flow, pressure and flow rate remain unchanged during the calibration zero, to prevent the impact of airflow on the calibration zero, to ensure that the equipment can operate continuously 24 hours a day.



FEATURE



Range 0-40g/m3NTP (optional range: 0-100g/m3, 0-200g/m3, 0-250g/m3).
Display resolution 0.01 g/m3.
Gas flow 0.8L±0.2L/min.
Input pressure <0.1 MPa.
Zero point drift <±0.3%.FS (MAX: ±0.6g/m3).
Sampling port pipe diameter Φ6 (6mm*4mm).
Error rate ±0.5%.
Communication mode RS-485.
Output mode 4-20mA, linear.
Size 155*68*240mm

UV-2100 Ozone Gas Analyzer Embedded Benchtop Negative Pressure 0

UV-2100 Ozone Gas Analyzer Embedded Benchtop Negative Pressure 1
