ZP800-O3 0-50ppm Circulation Type Ozone Gas Detector Electrochemical Principle For Pipelines

  • ZP800-O3 0-50ppm Circulation Type Ozone Gas Detector Electrochemical Principle For Pipelines
  • ZP800-O3 0-50ppm Circulation Type Ozone Gas Detector Electrochemical Principle For Pipelines
Place of Origin China
Brand Name Zetron
Certification CE, ISO13485, ISO9001
Model Number ZP800-O3
Minimum Order Quantity 1
Packaging Details paper carton
Delivery Time 3-7 days
Payment Terms T/T, L/C, Western Union, MoneyGram
Supply Ability 1000 set/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Range 0-50ppm Resolution 0.01ppm(0-50ppm)
Accuracy ±3%FS Display Mode Liquid Crystal Display
Operating Temperature -20℃～+50℃ Weight About 1.5Kg
Highlight

circulation type ozone gas detector

,

pipelines ozone gas detector

,

electrochemical principle o3 detector
Leave a Message
Product Description

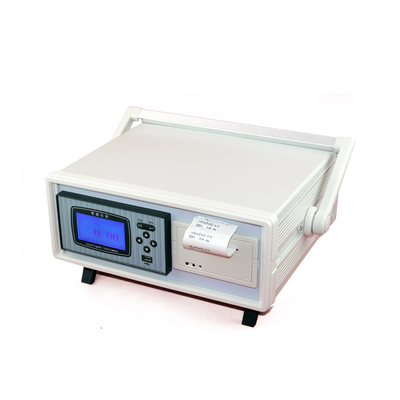

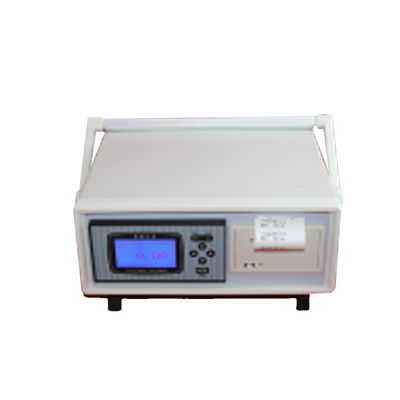

ZP800-O3 Ozone Gas Detector

OVERVIEW



Adopt British sensor, can be non-contact operation and maintenance instrument Compatible with various control alarms, PLC, DCS and other control systems, remote monitoring can be achieved, explosion-proof design, fast, reliable, stable; Ex d II CT6 full software automatic calibration function, the machine has a total of three standard keys to achieve a single person single-point field maintenance.



FEATURE



  • Monitor ozone gas concentration in the environment or in the pipeline
  • Full software automatic calibration function, zero calibration function, make gas monitoring more accurate and reliable
  • With temperature compensation, it can realize the compensation of gas concentration under different temperature environment
  • One or two switching signals can be output to drive external devices such as exhaust fans or solenoid valves
  • Working voltage: 12-36V DC power supply



PARAMETER



Detecting gas Ozone concentration in air
Detection principle electrochemical
Detection method Circulation type
Measuring range 0-50ppm
Resolution 0.01ppm(0-50ppm);
Accuracy ±3%FS
Display mode Liquid crystal display
Response time ≤ 30 seconds
Recovery time ≤60 seconds
Explosion-proof mark ExdⅡCT6
Explosion-proof connection thread 3/4" NPT
Signal output 4～20mA 2-wire standard current (load 1500 ohms)
Transmission distance 1100m (Rvv0.75 square mm shielded cable)
Operating temperature -20℃～+50℃
Relative humidity 10% ~ 95% RH (non-condensing)
Power source 24VDC±12VDC
Weight about 1.5Kg
