GT44 Portable Flammable Methane Gas Leak Monitor 4 In 1 0-10000ppm

Place of Origin China
Brand Name Zetron
Certification CE, ISO13485, ISO9001
Model Number GT44
Minimum Order Quantity 1
Packaging Details paper carton
Delivery Time 3-7 days
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 1000 set/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Function Portable Gas Analyzer Detecting Gas 1-4 Gases
Size 290 X 95 X 43 Mm (L*W*H) Weight 0.78 Kg
High Light

portable gas leak monitor

,

flammable gas leak monitor

,

4 in 1 methane leak monitoring

Leave a Message
Product Description

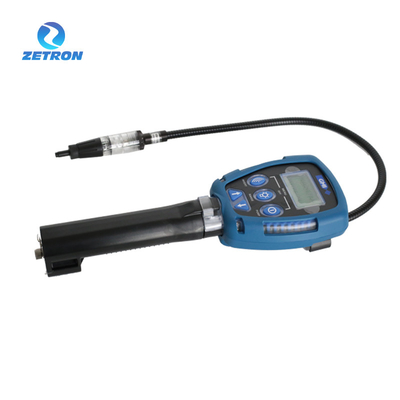

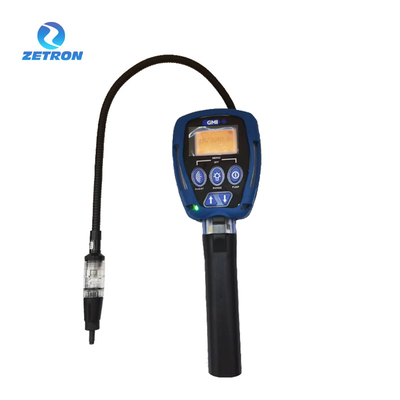

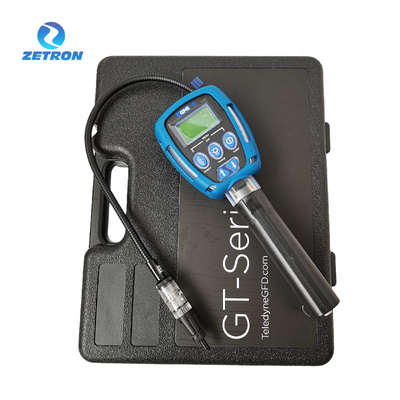

GT44 Portable Methane Monitor



OVERVIEW



The GT44 series offers technicians and workers a single instrument that can be used throughout the gas distribution and transmission pipelines for all measurements needed for leak testing, and confined space entry. Bright LED alarm lights illuminate as gas levels increase, and audible alarms are activated at preset levels should they be programmed.

Completely programmable, the GT is an industry-standard throughout the Americas and Europe and allows companies to utilize only one instrument for all their monitoring needs. The GT series is available with an optional docking station for full calibration and testing capabilities and printed cal certificates if needed.


PARAMETER



Mode
GT44
Gas
Methane flammable gas
Sensor 1
Semiconductor
Range
0-10,000ppm (1ppm)
Sensor 2
Catalytic Bead
Range
0-100% LEL (1%LEL)
Sensor 3
Thermal Conductivity Sensor
Range
0-100% Vol ( 1%%Vol)
Dimensions
290 x 95 x 43 mm /
11.4 x 3.7 x 1.7” (Excl. Probe)
Weight
0.78 kg /
1.7 lbs (Incl. Probe & Batteries)
Display
LCD with backlighting
Humidity
0-95% noncondensing
Alarms
High visibility LEDs on both sides of instrument, 85 db audible alarm
All alarms user programmable via password protected menu
Sampling
Integral pump with pressure sensor for flow fails detection. Sample path is protected by a hydrophobic filter.
Response Time
T90 < 30 seconds
Rating
IP54 (Dust protected and splashproof)
Battery
3 ‘C’ type batteries – LR14 alkaline or rechargeable
Battery Life
8 hours continuous alkaline or rechargeable
Construction
High-impact polycarbonate ABS blend
Certification
UL 913 Class I, Div 1, Groups C, D CSA Class I, Groups C, D C22.2 No. 152 SIRA05 ATEX II 2G EEx iad IIB T3 IECEx Exiad IIB T3




APPLICATION



The detector is widely used in petroleum, chemical industry, environmental protection, metallurgy, refining, biochemical medicine, agriculture, and explosion prevention.
The detector can effectively predict the concentration of dangerous gas alarms, ensuring that staff life's safety is not threatened, and production equipment is not lost.



GT44 Portable Flammable Methane Gas Leak Monitor 4 In 1 0-10000ppm 0

Tag: Pump type gas detector, Methane Leak Monitor, Portable CH4 Gas Monitor, Confined space methane detector, Flammable Gas Monitoring Device, OEM/ODM service.
