Zetron Gm3100 Methane Gas Leak Detector Multifunctional Infrared

Place of Origin German
Brand Name Zetron
Certification CE, ISO13485, ISO9001
Model Number GM3100
Minimum Order Quantity 1
Packaging Details Plastic box
Delivery Time 3-7 days
Payment Terms T/T, L/C, Western Union, MoneyGram
Supply Ability 10000 set/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Test Item CH4, H2, O2, CO, H2S Product Name Gas Analyzer
Operating Time 15 Hours Of Normal Use Power Supply 3x1.2V Rechargeable Battery Or 3x1.5V Battery
Size 215*100*60(mm) Weight 1.8 Kg
High Light

zetron methane gas leak detector


multifunctional infrared methane gas leak detector


zetron methane leak detection

Leave a Message
Product Description

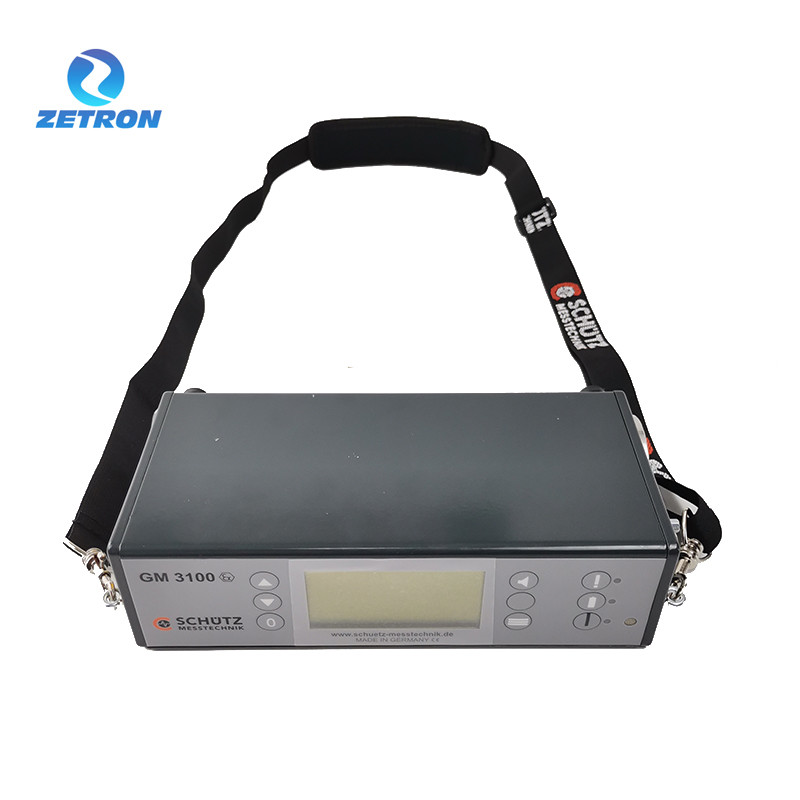

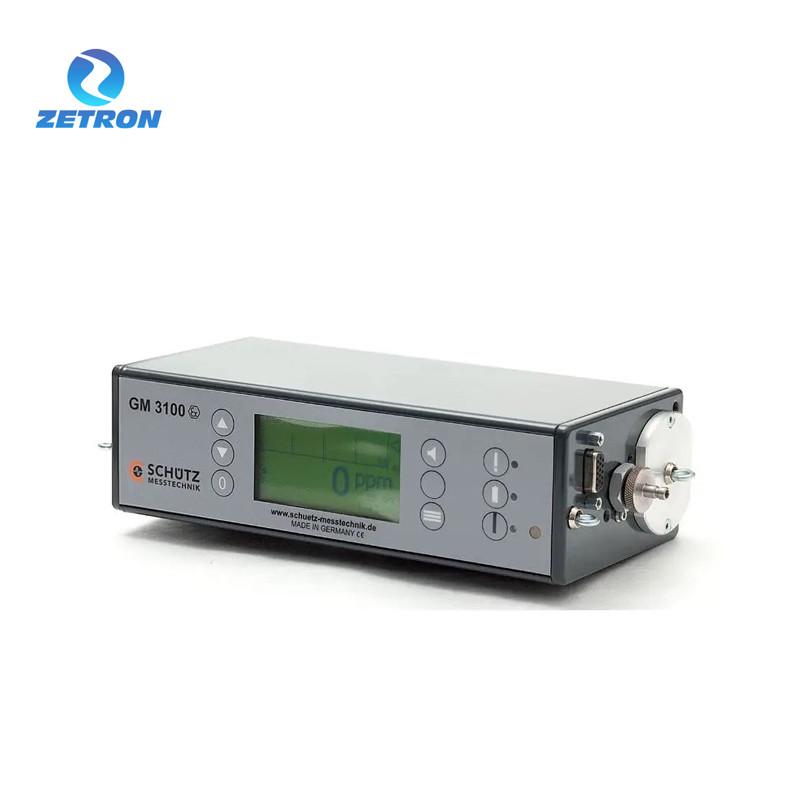

GM3100 Handheld Gas Leak Analyzer


 The GM 3100 is an all-in-one instrument for leak detection and primary line detection. Using new infrared measurement technology, the instrument accurately identifies natural gas and CO2, eliminating cross-sensitivity issues.


1. Multi-functional application

- Gas leak detection in pipeline networks

- Locating leak points through probe holes

- Measurement of the concentration in the pipeline

2. Compensated CH4 and CO2 measurement


3. Probes

- Trolley-type probe: suitable for census work on flat roads and asphalt, can exclude such as car exhaust and other exhaust gas interference, the probe uses filters, filter hoses, and connectors, equipped with rollers to move aspects, used for census gas pipeline network, along the path of probing.

- Bell-type probe: used to probe the gas leakage concentration of soft underground pipelines such as lawn, equipped with probe and hose two-stage filter, suitable for census of gas pipeline network using pumping method on the part of flat road
- Telescopic probe: this probe can be bent at will, and used to accurately measure the gas concentration of difficult-to-access pipelines, such as the 2-meter range of overhead pipelines or pipeline flange joints, etc.
- Conical probe: used for borehole positioning measurement, built-in water separator can prevent the inhalation of water vapor in the pipe, vertebrae 30CM or 55CM for deeper borehole gas monitoring work.



Display Graphical LCD display with automatic illumination
Pump 1 ppm
Sensitivity Diaphragm pump with an adjustable flow rate
Gas type Methane, Hydrogen, Carbon monoxide Oxygen, Hydrogen sulfide
Measuring range 0-10ppm0-20ppm0-100ppm0-1000ppm (vol.%)
0-1 vol.%0-10vol.%0-100vol.%
Temperature range -20'C~+40'C
Protection class IP 54
Operating time 15 hours of normal use
Dimensions 215x100x60mm
Weight 1.8 kg

Zetron Gm3100 Methane Gas Leak Detector Multifunctional Infrared 0
