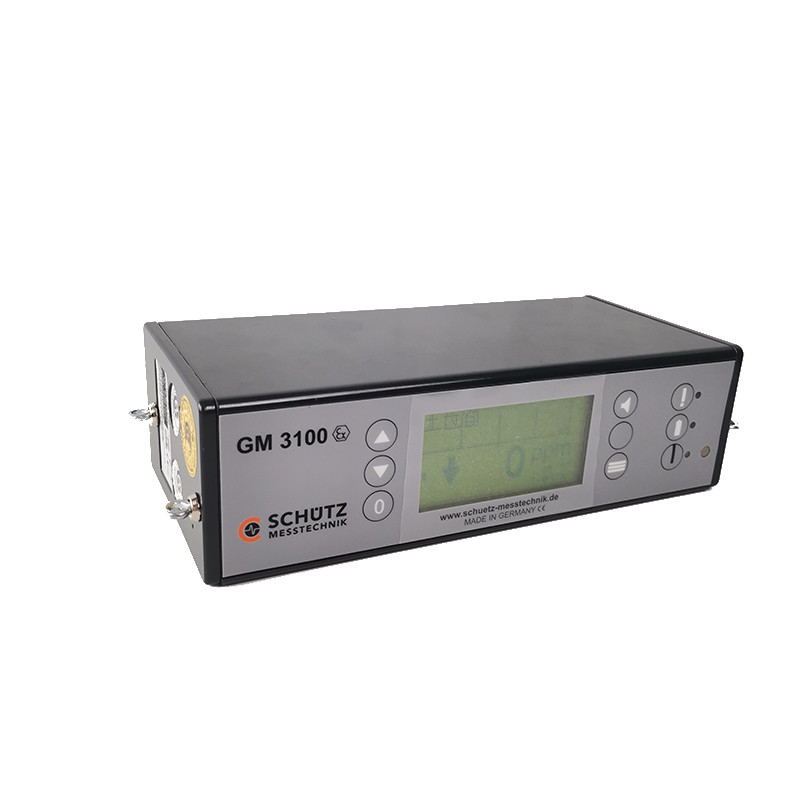

GM3100 Four In One Gas Leak Detection Instrument For Main Pipeline Detection

  • GM3100 Four In One Gas Leak Detection Instrument For Main Pipeline Detection
Place of Origin German
Brand Name Zetron
Certification CE, ISO13485, ISO9001
Model Number GM3100
Minimum Order Quantity 1
Packaging Details Plastic box
Delivery Time 3-7 days
Payment Terms T/T, L/C, Western Union, MoneyGram
Supply Ability 10000 set/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Test Item CH4, H2, O2, CO, H2S Material Aluminum Housing
Size 215*100*60(mm) Weight 1.8 Kg
Highlight

gm3100 gas leak detection instrument

,

main pipeline gas leak detection instrument
Leave a Message
Product Description
GM3100 Gas Leak Analyzer

OVERVIEW



 The GM 3100 is a Four-in-one gas instrument for leak detection and primary line detection. Using new infrared measurement technology, the instrument accurately identifies natural gas and CO2, eliminating cross-sensitivity issues.


FEATURE


1. Durable aluminum housing

2.Compensated CH4 and CO2 measurement

3. Easy maintenance with intelligent sensors

4. O2, H2S, CO can also be detected

5. Standard equipment

GM3100 main unit, carrying case, telescopic probe, rechargeable battery, 230V charger, carrying strap, 100u dust filter, operating instructions, factory certificate




TECHNOLOGY PARAMETER



Display Graphical LCD display with automatic illumination
Pump 1 ppm
Sensitivity Diaphragm pump with an adjustable flow rate
Sensor type Semiconductor sensor, chemical sensor, IR CH4, IR CO2 (optional)
Gas type Methane, Hydrogen, Carbon monoxide Oxygen, Hydrogen sulfide
Measuring range 0-10ppm0-20ppm0-100ppm0-1000ppm (vol.%)
0-1 vol.%0-10vol.%0-100vol.%
Power supply 3x1.2V rechargeable battery or 3x1.5V battery
Protection class IP 54
Dimensions 215x100x60mm
Weight 1.8 kg
