PTM100-2 Zetron Portable Gas Meter Desktop 18 In 1

Place of Origin China
Brand Name Zetron
Certification CE, ISO13485, ISO9001
Model Number PTM100-2
Minimum Order Quantity 1
Packaging Details paper carton
Delivery Time 3-7 days
Payment Terms T/T,Western Union, MoneyGram
Supply Ability 10000 set/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Gas Meter Test Item SO2 NO NO2 VOC NOX CO, Customized
Material Plastic Size 260*230*120mm
Weight 3.7kg Warranty 1 Years
High Light

Desktop Zetron Portable Gas Meter

,

18 In 1 Portable Gas Meter

Leave a Message
Product Description

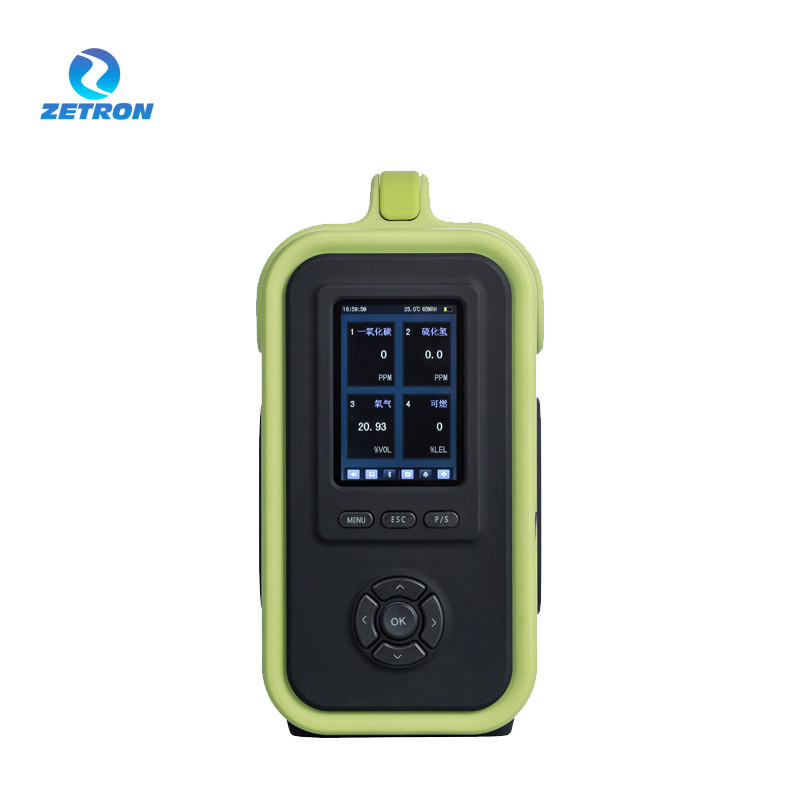

PTM100-2 Multi-Gas Analyzer
OVERVIEW

PTM100-2 gas analyzer can detect up to 18 gases simultaneously. It can integrate electrochemistry, catalysis, thermal conductivity, infrared, light ion, ultraviolet,  and other detection principles, focusing on the accuracy of gas detection and user experience.



FEATURES

Fast response & high accuracy
– with internal sampling pump, response time ≤30s
– using world-top brand sensors, and high precision, the detection result is approved by the third testing organization
Comprehensive functions
– gas concentration unit PPM and mg/m3 can be shifted by one press.
– With Self-calibration and zero calibration functions, making the detection more accurate and reliable.
– One press to restore the factory setting, free from the bother of misoperation
Alarm mode
– Alarm with light, sound, and vibration, ensuring the safety of the users.
– Alarm point is settable according to the specific requirements.

SPECIFICATION



Sampling
With internal sampling pump, flow rate is up to 1L/min
Data logging
Data logging with adjustable interval, and available for data downloading to PC through USB cable.
Precision
≤±3%F.S. (higher precision is available)
Response Time
≤10S
Zero shift
≤±1%(F.S./year)
Display
LCD dot matrix display, with display of gas type, real time gas concentration, battery power, time, gas unit.
Temperature
-20℃~50℃
Humidity
0-95%RH (non-condensing)
Explosion-Proof
ExibⅡCT4
Degree of protection
IP65
Alarm
Sound: 85dBLight: LED, low alarm: blue, high alarm: red
Vibration: the detector will vibrate when powered on
Alarm point is settable according to customer requirements.
Battery
3.6V 2300mAh lithium polymer rechargeable battery, operating time is about 12h continuously, charging time: 4-6 h
Dimensions
205x75x32mm
Weight
300g
Approval
CE, CNEX explosion proof certificate, CMC(China Metrology Certification)
Warranty
12 months



Application:

Confined Space, Combustible Detection, Oxygen Detection, Toxic Detection
Situation: Furniture, wallpaper, coating, paper making, pharmacy, health care, disinfection, chemical fertilizer, livestock farm, green household, agricultural production.
PTM100-2 Zetron Portable Gas Meter Desktop 18 In 1 0
Tags: 18in1 Gases Detector, Multi Gas Meter, Toxic Gas Concentration Alarm, Combustible Detection Detector, Complex working environment gas monitor, OEM/ODM Service.
