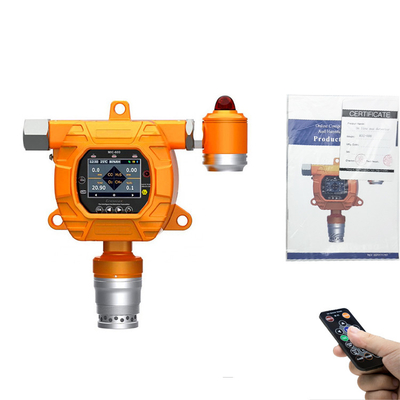

Color screen Zetron MIC600-CH4O Fixed Gas Detector Portable For Methane Leakage

  • Color screen Zetron MIC600-CH4O Fixed Gas Detector Portable For Methane Leakage
Place of Origin China
Brand Name Zetron
Certification CE, ISO13485, ISO9001
Model Number MIC600-CH4O
Minimum Order Quantity 1
Packaging Details paper carton
Delivery Time 3-7 days
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 1000 set/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Function Fixed Gas Detector Units PPM, Mg/m3, Vol%, LEL%, PPHM, Ppb, Mg/l.
Display 2.5-inch Color Screen Dimensions 210*170*85mm (L*H*W)
Weight 1.8(kg) Warraty 1 Year
Highlight

Color Screen Fixed Gas Detector

,

Pipeline Type Fixed Gas Detector

,

Methane Leakage Fixed Gas Detector
Leave a Message
Product Description

MIC600-CH4O Pump Gas Leak Detector

OVERVIEW



MIC600-CH4O Series gas detector can be used in 24-hour continuous online monitoring of concentrations of multiple types of gases in the field. The types for detection are more than 500 types.
A 4-20 mA analog output, can be integrated into a Distributed Control System (DCS) to provide warnings and enable control of high VOC levels in the working environment.

PARAMETER



Gas CH4O Range 0-50000PPM; 0-100%LEL ; 0-100%Vol.
other ranges can be customized
Size 210×170×85mm (L×H×W) Weight 1.8 Kg
Installation method Pipeline Type
Wall Mounting Type		 Display 2.5-inch high-definition color screen
Environment Temperature: -40 ℃ ~ + 70 ℃
Humidity: ≤10 ~ 95% RH (regular)		 Approvals IP66; Exd Ⅱ CT6
Accessories Manual, qualification certificate, warranty card, outer packaging box
Optional items Alarms; Wireless Transmission; Pretreatment System; SD Card;
Temperature and Humidity Measurement;
Accessory for connection with the computer for monitoring.





Color screen Zetron MIC600-CH4O Fixed Gas Detector Portable For Methane Leakage 0











APPLICATION

All the cases which require the fixed installation, and online detection of gas concentrations such as Chemical Industry, Power Generation Plants, Natural Gas Pipeline & Processing, Waste Water Treatment Plants, Commercial & Industrial HVAC, Acetylene Gas Bottlers & Users and so on.

 Color screen Zetron MIC600-CH4O Fixed Gas Detector Portable For Methane Leakage 1
