Zetron MIC300 Co Gas Analyzer Normal Type Import Sensor Concentration 0-500ppm 0-1000ppm
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Type | MIC300-CO | Detection Range | 0～1000, 2000, 5000, 10000ppm, 30%Vol, 100%Vol Optional |
|---|---|---|---|
| Explosive Grade | Exd II CT6/DIP A20 TA, T6 | Protection Level | IP66 |
| Size | 210*170*85mm (L*H*W) | Weight | 1.8(kg) |
| Highlight | normal sensor co gas analyzer,0-500ppm co gas analyzer,0-1000ppm co analyzer |
||
Product Description

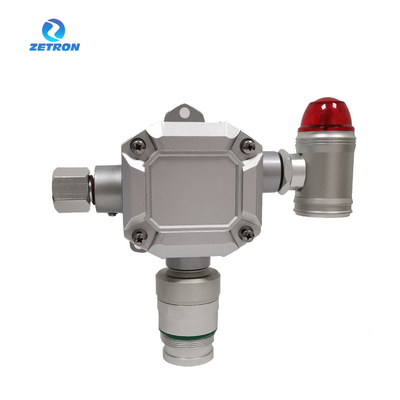

MIC300 Online Toxic and Harmful Gas Detector
OVERVIEW
● Explosion-proof, lightning-proof, anti-static, anti-reverse connection, anti-EMI, EMC electromagnetic interference, anti-pulse surge current impact;
● Comply with the latest national standards and obtain the CMC manufacturing license for measuring instruments, explosion-proof certification, and other qualifications;
3-wire 4-20mA standard signal output, 2 groups of relay switch, optional voltage output;
It also has standard bus RS485 output (RTU format) and optional integrated sound and light alarm;
● The concentration of the probe can be monitored in real-time through the computer and the data can be stored, analyzed, and printed on the computer;
● Automatic tracking of zero point to prevent drift. Support OEM or ODM customization service.
● Comply with the latest national standards and obtain the CMC manufacturing license for measuring instruments, explosion-proof certification, and other qualifications;
3-wire 4-20mA standard signal output, 2 groups of relay switch, optional voltage output;
It also has standard bus RS485 output (RTU format) and optional integrated sound and light alarm;
● The concentration of the probe can be monitored in real-time through the computer and the data can be stored, analyzed, and printed on the computer;
● Automatic tracking of zero point to prevent drift. Support OEM or ODM customization service.
SPECIFICATION
|
Type
|
Fixed Gas Detector
|
||||
|
Detection principle
|
Electrochemical, infrared, thermal conductivity, PID photoionization, and so on.
Depending on the type of gas, range, field environment and user demand,
Sensor can be customized
|
||||
|
Sensor service life
|
Electrochemical principle: 2 ~ 3 years;
Infrared principle: 5 ~ 10 years;
Thermal conductivity: 5 years
|
||||
|
Response time
|
T90≤30 seconds
|
Recovery time
|
≤30 seconds
|
||
|
Working environment
|
Temperature: -40 ℃ ~ + 70 ℃, humidity: ≤10 ~ 95% RH (regular)
|
||||
|
Power supply reference
|
24V, 2.1A is possible to drive 40 units of toxic gas detector,
or 15 units of flammable, infrared gas detector.
|
||||
|
Working method
|
Fixed type installation, online detection, diffusion type measurement
|
||||
|
Protection level
|
IP65
|
||||
|
Explosion-proof mark
|
ExdⅡCT6, certificate number: CNEx15.1283
|
||||
|
Exterior dimensions
|
233×205×65mm (L×H×W)
|
||||
|
Weight
|
1.0 Kg
|
||||
