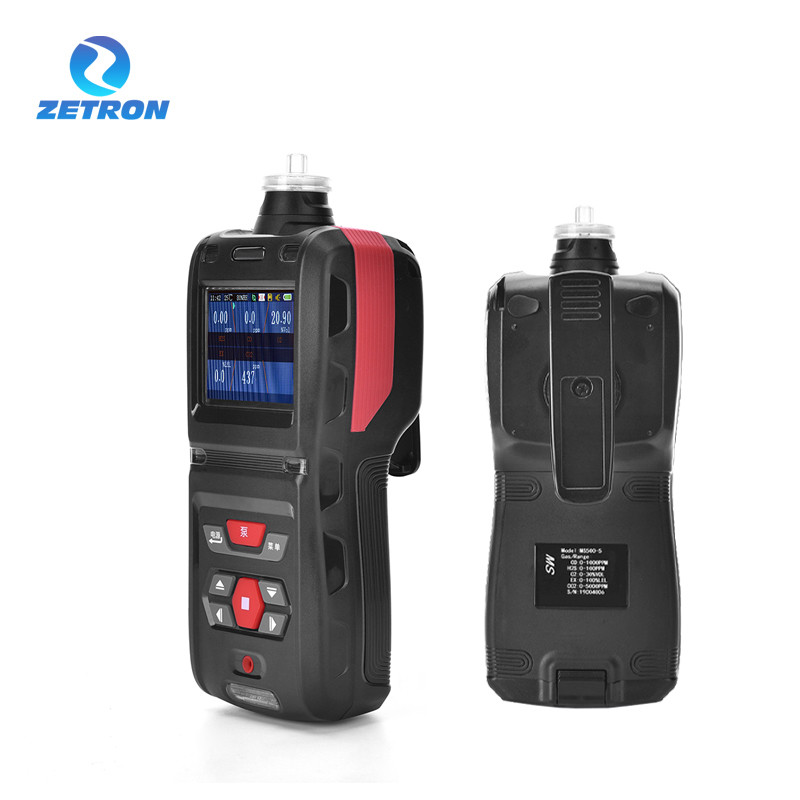

Zetron MS500 Portable Smoke Carbon Monoxide Detector IP66

Place of Origin China
Brand Name Zetron
Certification CE
Model Number MS500
Minimum Order Quantity 1 set
Packaging Details paper carton
Payment Terms L/C, D/P, D/A, T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Portable Gas Analyzer Model Number MS500
Gas Unit PPM, Mg/m3, Vol%, LEL%, PPHM, Ppb, Mg/l. Type Portable Multi Gas Detector, Infrared
Warranty 12 Months Color Black
Protection Level IP66 Customized Support OEM, ODM, OBM
Weight 350g Size 180*78*33mm
High Light

Zetron Portable Smoke Carbon Monoxide Detector

,

IP66 Portable Smoke Carbon Monoxide Detector

Leave a Message
Product Description

MS500 Portable Gas Detector



OVERVIEW


MS500 series is suitable for detecting the concentrations of gases in the atmosphere environment in the pipeline or confined space. It is possible to simultaneously detect 1 ~ 5 types of gases, and the types for detection are more than 500 types.

Simultaneously display the concentrations of five types of gases, repeatedly display the concentration of single-channel gases in large font, and display the real-time curve. And it is possible to switch between three display modes.



PARAMETERS





Measuring gas
CO
Measuring range
0-1.000,2.000,5.000ppm
Other ranges can be customized
Resolution
0.01 ppm
0.1 ppm
Other ranges can be customized
Sensor type
Other Sensor: Infrared, Electrochemical, catalytic combustion, thermal conductivity, PID photoionization, and so on.
Other Sensor can be customized
Measuring type
Built-in pump-suction type
Response time
T90<20s
Display
2.5-inch high-definition color screen
Alarm method
sound & light alarm; vibration alarm; sound & light + vibration alarm;turning off the alarm
Battery
DC3.7V, 3000mA high capacity rechargeable polymer battery
Data storage
Standard capacity is 100,000 entries.
Working temperature
-40 ℃ ~ + 70 ℃
Working humidity
≤10 ~ 95% RH
Housing
Rubber enclosure
Standard accessories
Manual, qualification certificate, warranty card, USB charger (including the data cable), high-grade aluminum instrument case,
belt clip, humidity dust filter
Dimension (L×W×H)
180×78×33mm
Weight
350g
Ex grade
Ex ia IIC T6 Ga Intrinsically safe type
Ingress protection
IP66



Zetron MS500 Portable Smoke Carbon Monoxide Detector IP66 0





APPLICATION



All the cases which require the portable rapid detection of gas concentrations such as petroleum, chemical, pharmaceutical, environmental protection, combustion gas distribution, warehousing, smoke gas analysis, air governance, and so on.



Zetron MS500 Portable Smoke Carbon Monoxide Detector IP66 1
