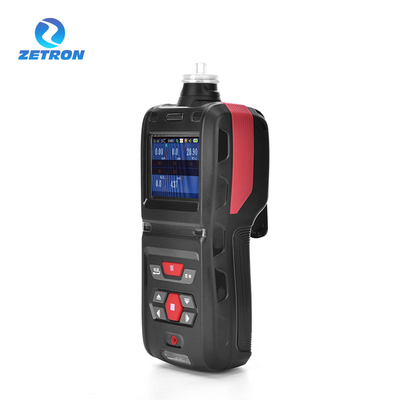

MS500 Carbon Monoxide Leak Detector Portable Multi Gas Detector For Smoke Gas Analysis

Place of Origin China
Brand Name Zetron
Certification CE
Model Number MS500
Minimum Order Quantity 1 piece
Packaging Details paper carton
Payment Terms L/C, D/P, D/A, T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Portable Gas Detector Model Number MS500
Gas Unit PPM, Mg/m3, Vol%, LEL%, PPHM, Ppb, Mg/l. Type Portable Multi Gas Detector, Infrared
Warranty 12 Months Protection Level IP66
Weight 350g Size 180*78*33mm
High Light

MS500 Carbon Monoxide Leak Detector

,

Portable Infrared Carbon Monoxide Leak Detector

,

IP66 Infrared Co Leak Detector

Leave a Message
Product Description

MS500 5 in 1 Portable Toxic And Harmful Gas Detector



OVERVIEW



Graphical display, and use the form of the curve to reflect the trend of gas concentration changes in a certain period of time. Data recovery function; in case of misoperation, it is possible to select partial or full recovery. It is possible to set whether to display the maximum value, minimum value, average value, or not. Standard USB charging port, with charging protection function, USB hot-plug supported, and the charging status instrument can work properly. 2100mA high capacity rechargeable polymer battery is adopted, so it is possible to work for a long period of time. High-precision temperature and humidity measurements (optional configuration). Real-time detection or timing detection is supported.





FEATURES



· Temperature and humidity measurement function
· 1.2 m retractable sampling handle (1-10 meter hose and the standard length is 1 meter)
· 0.4-meter stainless steel sampling handle (with a dust filter, not retractable)
· high-temperature sampling and cooling filter handle
· high-temperature humidity pretreatment system
· multiple humidity dust filter
· hanging rope
· CD-ROM (upper-level computer communication software)
·External mini wireless infrared printer



SPECIFICATION



Gases to be detected
CO Carbon monoxide
Detection range
O2:0-30%VOL,CO:0-100ppm, H2S:0-100ppm,EX:0-100%LEL
and other ranges can be customized.
Resolution
O2:0.01%VOL, CO:0.1ppm, H2S:0.01ppm,EX:1%LEL
Allowable error
≤±2% F.S (other or higher precision levels can be customized)
Linearity
≤±2%
Repeatability
≤±2%
Uncertainty
Response time
T90≤20 seconds
Recovery time
≤30 seconds
Working environment
Temperature: -40 ℃ ~ + 70 ℃, humidity: ≤10 ~ 95% RH, and built-in filters can be used in high humidity or high dust environment.
Temperature and humidity measurement
Optional configuration: temperature at -40 ℃ ~ + 70 ℃, accuracy level at 0.5 ℃; humidity at 0 ~ 100% RH, precision level at 3 % RH
Power supply
3.6VDC, 5500mA high capacity rechargeable polymer battery
Alarm mode
It is possible to set as sound & light alarm, vibration alarm, sound & light + vibration alarm, Turning off the alarm.
Communication interface
USB (charging and communication), optional: RS232, infrared communication, automatic recognition
Data storage
Standard configuration is the data storage capacity for 100, 000 entries
Protection level
IP66
Explosion-proof type
Intrinsically safe type
Exterior dimensions
180×78×33mm (L×W×H)
Weight
350g
Standard accessories
Manual, qualification certificate, warranty card, USB charger (including the data cable), high-grade aluminum instrument case,
belt clip, humidity dust filter


MS500 Carbon Monoxide Leak Detector Portable Multi Gas Detector For Smoke Gas Analysis 0
MS500 Carbon Monoxide Leak Detector Portable Multi Gas Detector For Smoke Gas Analysis 1MS500 Carbon Monoxide Leak Detector Portable Multi Gas Detector For Smoke Gas Analysis 2MS500 Carbon Monoxide Leak Detector Portable Multi Gas Detector For Smoke Gas Analysis 3MS500 Carbon Monoxide Leak Detector Portable Multi Gas Detector For Smoke Gas Analysis 4

MS500 Carbon Monoxide Leak Detector Portable Multi Gas Detector For Smoke Gas Analysis 5

MS500 Carbon Monoxide Leak Detector Portable Multi Gas Detector For Smoke Gas Analysis 6MS500 Carbon Monoxide Leak Detector Portable Multi Gas Detector For Smoke Gas Analysis 7MS500 Carbon Monoxide Leak Detector Portable Multi Gas Detector For Smoke Gas Analysis 8



APPLICATION



All the cases which requires the portable rapid detection of gas concentrations such as petroleum, chemical, pharmaceutical, environmental protection, combustion gas distribution, warehousing, smoke gas analysis, air governance, and so on.
