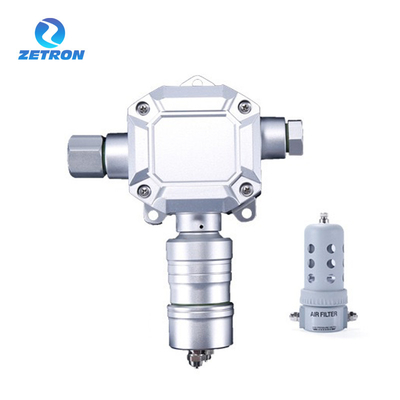

Waterproof Zetron MIC300 Fixed Gas Detector Online Carbon Monoxide Leak Detector

Place of Origin China
Brand Name zetron
Certification CE, Atex, RohS, ISO
Model Number MIC-300
Minimum Order Quantity 1 piece
Packaging Details paper box
Delivery Time in stock
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 10000 set/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Type MIC-300 Detection Range 0~1000, 2000, 5000, 10000ppm, 30%Vol, 100%Vol Optional
Explosive Grade Exd II CT6/DIP A20 TA, T6 Protection Level IP66
Material Aluminum Alloy Warranty 1 Year
High Light

Aluminum Alloy Fixed Gas Detector

,

Online CO Leak Fixed Gas Detector

,

Zetron MIC300 Online Carbon Monoxide Detector

Leave a Message
Product Description

MIC300 Online Toxic and Harmful Gas Detector

OVERVIEW



MIC300 Series gas detector can be used in 24 hours continuous online monitoring of concentrations of multiple types of gases in the filed.The types for detection are more than 500 types.
With a 4-20 mA analogue output, can be simply integrated into a Distributed Control System (DCS) to provide warnings and enable control of high levels in the working environment.
Waterproof Zetron MIC300 Fixed Gas Detector Online Carbon Monoxide Leak Detector 0
Waterproof Zetron MIC300 Fixed Gas Detector Online Carbon Monoxide Leak Detector 1
Waterproof Zetron MIC300 Fixed Gas Detector Online Carbon Monoxide Leak Detector 2

SPECIFICATION



Type
Fixed Gas Detector
Detection principle
Electrochemical, infrared, thermal conductivity, PID photoionization, and so on.
Depending on the type of gas, range, field environment and user demand,
Sensor can be customized
Linearity
≤±2%
Repeatability
≤±2%
Uncertainty
≤±2%
Response time
T90≤30 seconds
Recovery time
≤30 seconds
Working environment
Temperature: -40 ℃ ~ + 70 ℃, humidity: ≤10 ~ 95% RH (regular)
Power supply reference
24V, 2.1A is possible to drive 40 units of toxic gas detector,
or 15 units of flammable, infrared gas detector.
Working method
Fixed type installation, online detection, diffusion type measurement
Protection level
IP65
Explosion-proof mark
ExdⅡCT6, certificate number: CNEx15.1283
Exterior dimensions
233×205×65mm (L×H×W)
Weight
1.0 Kg
Standard accessories
Manual, qualification certificate, warranty card, outer packaging box



Application



Fixed gas detector is mainly used in underground tunnels, sewage treatment plants, chemical plants, steel plants, coal mines, boiler rooms, oil pipelines, gas stations, indoor air quality testing, sterilization, frozen warehouses, underground corridors and other mixed gas scenarios.
