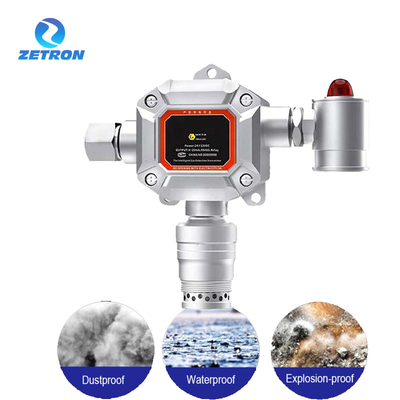

Zetron MIC 300 Fixed Gas Detector Real Time 24 Hour Online Remote Monitoring

  • Zetron MIC 300 Fixed Gas Detector Real Time 24 Hour Online Remote Monitoring
  • Zetron MIC 300 Fixed Gas Detector Real Time 24 Hour Online Remote Monitoring
Place of Origin China
Brand Name zetron
Certification CE, Atex, RohS, ISO
Model Number MIC-300
Minimum Order Quantity 1 piece
Packaging Details paper box
Delivery Time in stock
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 10000 set/month
Product Details
Product Type MIC-300 Detection Range 0～1000, 2000, 5000, 10000ppm, 30%Vol, 100%Vol Optional
Explosive Grade Exd II CT6/DIP A20 TA, T6 Protection Level IP66
Material Aluminum Alloy, Surface Anticorrosive Paint Sprayed Warranty 1 Year
Highlight

MIC-300 Fixed Gas Detector

,

24 Hour Waterproof Fixed Gas Detector

,

Zetron MIC300 Remote Carbon Monoxide Detector
Leave a Message
Product Description

MIC300 Fixed Gas Detector

OVERVIEW



MIC300 Series gas detector can be used in 24 hours continuous online monitoring of concentrations of multiple types of gases in the field. The types for detection are more than 500 types.
Fixed gas detector, the industry commonly known as online gas alarm, which is a professional instrument for real-time 24-hour online monitoring of gas, but the traditional fixed gas detector is divided into two types of integrated and split type, fixed integrated gas detector most of multi-probe combination design.

SPECIFICATION



Type
Fixed Gas Detector
Detection range
0~ 10ppm
0~ 20ppm
0~50ppm
0~100ppm
Other ranges can be customized
Resolution
0.01ppm or 0.001ppm (0 ~ 10 ppm);
0.01ppm (0 ~ 100 ppm),
Other ranges can be customized
Allowable error
≤±3% F.S (other or higher precision levels can be customized)
Linearity
≤±2%
Repeatability
≤±2%
Uncertainty
≤±2%
Working environment
Temperature: -40 ℃ ~ + 70 ℃, humidity: ≤10 ~ 95% RH (regular)
Power supply reference
24V, 2.1A is possible to drive 40 units of toxic gas detector,
or 15 units of flammable, infrared gas detector.
Protection level
IP65
Exterior dimensions
233×205×65mm (L×H×W)
Weight
1.0 Kg
Standard accessories
Manual, qualification certificate, warranty card, outer packaging box



Zetron MIC 300 Fixed Gas Detector Real Time 24 Hour Online Remote Monitoring 0
Zetron MIC 300 Fixed Gas Detector Real Time 24 Hour Online Remote Monitoring 1
Zetron MIC 300 Fixed Gas Detector Real Time 24 Hour Online Remote Monitoring 2
APPLICATION



All the cases require the portable rapid detection of gas concentrations such as petroleum, underground tunnels, sewage treatment plants, chemical plants, steel plants, coal mines, boiler rooms, oil pipelines, gas stations, and so on.

Zetron MIC 300 Fixed Gas Detector Real Time 24 Hour Online Remote Monitoring 3
