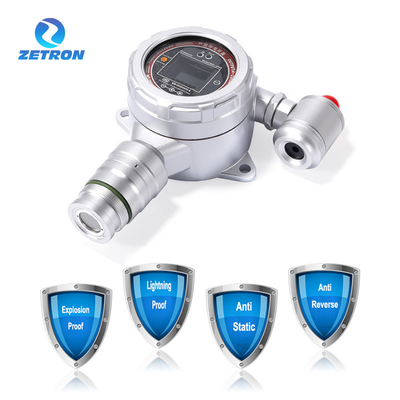

IP65 Zetron MIC500 Fixed Gas Detector Online Co Monoxide Monitor For Gas Stations

Place of Origin China
Brand Name Zetron
Certification CE
Model Number MIC500
Minimum Order Quantity 1
Price USD 300-- 1000/set
Packaging Details paper carton
Payment Terms L/C, D/A, T/T, MoneyGram

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Fixed Gas Detector Brand Name Zetron
Model Number MIC500S Gas Unit PPM, Mg/m3, Vol%, LEL%, PPHM, Ppb, Mg/l
Display Method 1.7-inch High-definition Color Screen Protection Level IP65
Weight 1.8(kg) Size 210*170*85mm (L*H*W)
High Light

IP65 Fixed Gas Detector

,

Zetron Online Fixed Gas Detector

,

IP65 Online Carbon Monoxide Detector

Leave a Message
Product Description



MIC500S Fixed CO Gas Detector



OVERVIEW



MIC500 Series gas detector can be used in 24 hours continuous online monitoring of concentrations of multiple types of gases in the filed.The types for detection are more than 500 types.
Strong, durable and explosion-proof shell and fluorocarbon surface treatment process are suitable for the use at a variety of hazardous places and corrosive environments, it is wear-resistant.
It is possible for real-time monitoring via the wired or remote wireless transmission, and network transmission.
Standard configuration includes the infrared remote control, it is possible for one-key operation via infrared remote
control function key, which can achieve the operation without opening the cover under hazardous situations.
such as: the functions like modification of the alarm point, density calibration, zero-point calibration, noise reduction,
restoring the factory setting, and so on.
IP65 Zetron MIC500 Fixed Gas Detector Online Co Monoxide Monitor For Gas Stations 0

FEATURES

IP65 Zetron MIC500 Fixed Gas Detector Online Co Monoxide Monitor For Gas Stations 1
IP65 Zetron MIC500 Fixed Gas Detector Online Co Monoxide Monitor For Gas Stations 2

IP65 Zetron MIC500 Fixed Gas Detector Online Co Monoxide Monitor For Gas Stations 3
IP65 Zetron MIC500 Fixed Gas Detector Online Co Monoxide Monitor For Gas Stations 4
IP65 Zetron MIC500 Fixed Gas Detector Online Co Monoxide Monitor For Gas Stations 5

IP65 Zetron MIC500 Fixed Gas Detector Online Co Monoxide Monitor For Gas Stations 6
■Installation type accessories
①wall mounting bracket;
②mounting clips for fixation on the pipes (1/2", 3/4" pipe);
③stainless steel threaded welding seat or flange to be installed on the pipeline
(it is necessary to mark the flange or pipe size, such as DN50, DN15 ...);
④Rain cover;
⑤24VDC or 220AC sampling pump (sampling distance is 10 m);
⑥vacuum pump (sampling distance is greater than 40 m);
⑦24V switching power supply;
⑧pressure reducing valve;
⑨flow meters.



APPLICATION



All the cases which requires the fixed installation, and online detection of gas concentrations such as petroleum, chemical, pharmaceutical, environmental protection, combustion gas distribution, warehousing, smoke gas analysis, air governance, and so on.

IP65 Zetron MIC500 Fixed Gas Detector Online Co Monoxide Monitor For Gas Stations 7
