Ms600-Voc Handheld Voc Gas Detector Volatile Organic Compounds Gas Analyzer

Place of Origin China
Brand Name Zetron
Certification CE
Model Number MS600-VOC
Minimum Order Quantity 1 set
Price USD 446/set - 1298/set
Packaging Details 195*77*46mm
Delivery Time 1-10 work days
Payment Terms T/T, Western Union, MoneyGram, D/P, D/A, L/C
Supply Ability 1000 SET / week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name 6 In 1 Gas Analyzer Gas Unit PPM, Mg/m3, Vol%, LEL%, PPHM, Ppb, Mg/l.
Gas Type VOC Color Orange
Screen Size 2.5 Inch Weight 0.35(kg)
High Light

2.5 inch handheld voc gas detector

,

6in1 handheld voc gas detector

,

volatile organic compounds voc gas detector

Leave a Message
Product Description

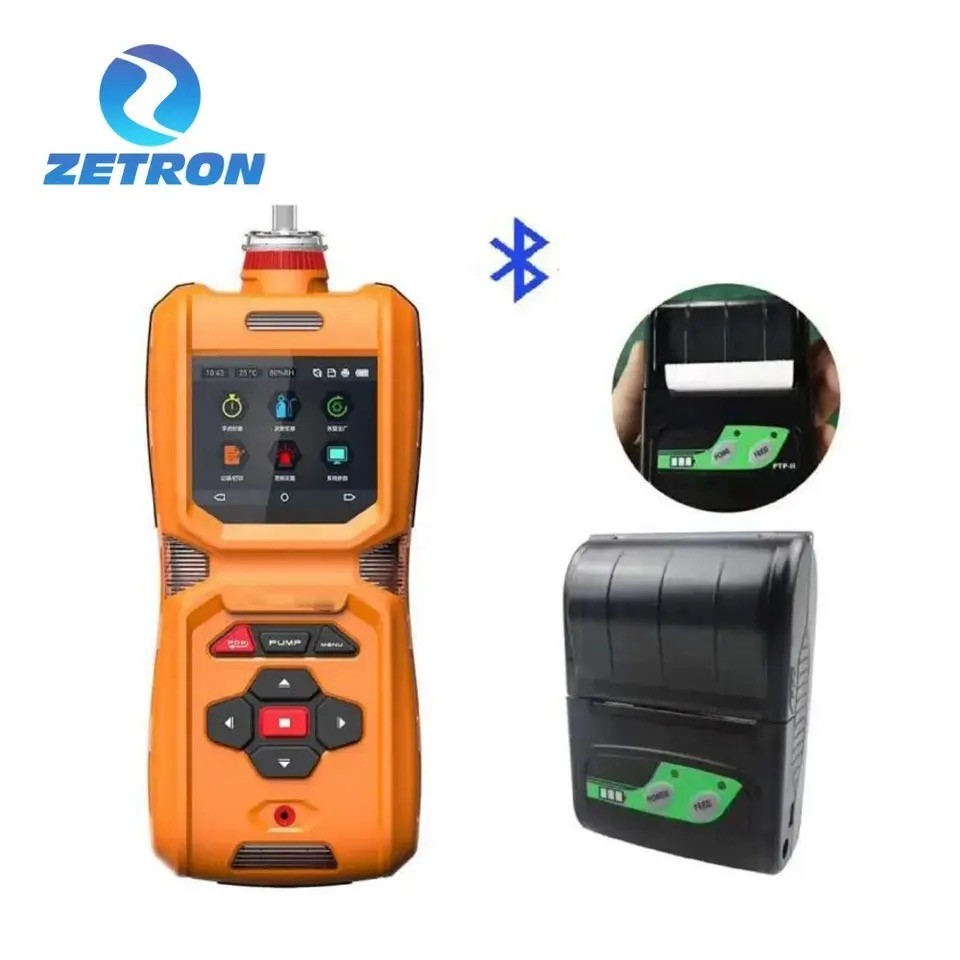

MS600-VOC Portable Multiple Gas Detector



OVERVIEW

High-precision temperature and humidity measurements (optional configuration). Real-time detection or timing detection is supported; when no detection will be done, it is possible to shut down the pump so as to extend the startup time. Multiple alarm modes, and multi-directional and three-dimensional indication alarm states. It includes sound & light alarms, vibration alarms, and display screen visual alarms. Alarm types include concentration alarms, under-voltage alarms, and failure alarms. Multiple alarm mode settings: low alarm, high alarm, interval alarm, and weighted average alarm. Mis-operation recognition function: automatic recognition and prevention of the concentration calibration misoperation, which is possible to avoid the poor performance that may be caused by human factors.



Ms600-Voc Handheld Voc Gas Detector Volatile Organic Compounds Gas Analyzer 0



FEATURES & BENEFITS
①2.5-inch high-definition color screen, display information such as real-time concentration, alarm, time, temperature, humidity, storage, and so on
②Graphical display,
③Simultaneously display the concentrations of five types of gases, repeatedly display the concentration of single-channel gases in large font, and display the real-time curve. And it is possible to switch between three display modes.
Ms600-Voc Handheld Voc Gas Detector Volatile Organic Compounds Gas Analyzer 1

· Temperature and humidity measurement function
· 1.2 m retractable sampling handle (1-10 meter hose, and the standard length is 1 meter)

· 0.4 meter stainless steel sampling handle (with dust filter, not retractable)
· High temperature sampling and cooling filter handle
· High temperature humidity pretreatment system· External remote sampling pump
· Multiple humidity dust filter· CD-ROM (upper level computer communication software)
· SD card storage
· USB disk storage
· External mini wireless infrared printer
· Wireless data communications: RS232, infrared communication, automatic recognition

Ms600-Voc Handheld Voc Gas Detector Volatile Organic Compounds Gas Analyzer 2
Ms600-Voc Handheld Voc Gas Detector Volatile Organic Compounds Gas Analyzer 3
Ms600-Voc Handheld Voc Gas Detector Volatile Organic Compounds Gas Analyzer 4



SPECIFICATION



Gas name

VOC

Detection range 0 ~ 1, 10, 100, 1000, 5000, 50000, 100000ppm, 200 mg/L, 100%LEL, 20%, 50%, 100%Vol, can be selected; and other ranges can be customized.
Resolution

0.01ppm or 0.001ppm (0 ~ 10 ppm);

0.01ppm (0 ~ 100 ppm),

0.1ppm (0 ~ 1000 ppm),

1ppm (0 ~ 10000 ppm or more),

0.01 mg/l (0 ~ 200 mg/l),

0.1% LEL,

0.01%,

0.001% Vol

Detection principle Electrochemical, catalytic combustion, infrared, thermal conductivity, PID photoionization, and so on, depending on the type of gas, range, field environment and user demand.
Sensor service life Electrochemical principle: 2 ~ 3 years; Oxygen gas: 2 years or 6 years can be selected; infrared principle: 5 ~ 10 years; catalytic combustion: 3 years; thermal conductivity: 5 years; PID photoionization: 2 ~ 3 years.
Allowable error ≤±1% F.S (other precision levels can be customized)
Linearity ≤±1% Repeatability ≤±1% Uncertainty ≤±1%
Response time T90≤20 seconds Recovery time ≤30 seconds
Working environment Temperature: -40 ℃ ~ + 70 ℃, humidity: ≤10 ~ 95% RH, and built-in filters can be used in high humidity or high dust environment.
Sample gas temperature -40 ℃ ~ + 70 ℃, and the optional configuration of high-temperature sampling and cooling filter handle will be possible to detect the smoke gas at the temperature of 1300 ℃.
Temperature and humidity measurement Optional configuration: temperature at -40 ℃ ~ + 70 ℃, accuracy level at 0.5 ℃; humidity at 0 ~ 100% RH, precision level at 3 % RH
Power supply 3.6VDC, 6000mA high capacity rechargeable polymer battery
Display mode The 2.5-inch high-definition color screen
Detection mode Built-in pump-suction type measurement, and flow rate at 500 ml/min. Calibration flow rate should be greater than 500 ml/min, three-way pipe should be connected, so as to ensure that the excess gas will be discharged from the bypass
Alarm mode It is possible to set a sound & light alarm, vibration alarm, sound & light + vibration alarm, turning off the alarm.
Communication interface USB (charging and communication), optional: RS232, infrared communication, automatic recognition
Data storage Standard configuration is the data storage capacity for 100, 000 entries; SD card storage function is an optional configuration
Protection level IP67
Explosion-proof type Intrinsically safe type
Explosion-proof mark Exia II CT6
Exterior dimensions 180×78×33mm (L×W×H)
Weight 350g
Detection mode Built-in pump-suction type measurement, and flow rate at 500 ml / min. Calibration flow rate should be greater than 500 ml / min, three-way pipe should be connected, so as to ensure that the excessive gas will be discharged from the bypass
Alarm mode It is possible to set as sound & light alarm, vibration alarm, sound & light + vibration alarm, turning off the alarm.
Communication interface USB (charging and communication), optional: RS232, infrared communication, automatic recognition
Data storage Standard configuration is the data storage capacity for 100, 000 entries; SD card storage function is optional configuration
Protection level IP67
Explosion-proof type Intrinsically safe type
Explosion-proof mark Exia II CT6





APPLICATION



All the cases which requires the portable rapid detection of gas concentrations such as petroleum, chemical, pharmaceutical, environmental protection, combustion gas distribution, warehousing, smoke gas analysis, air governance, and so on.
