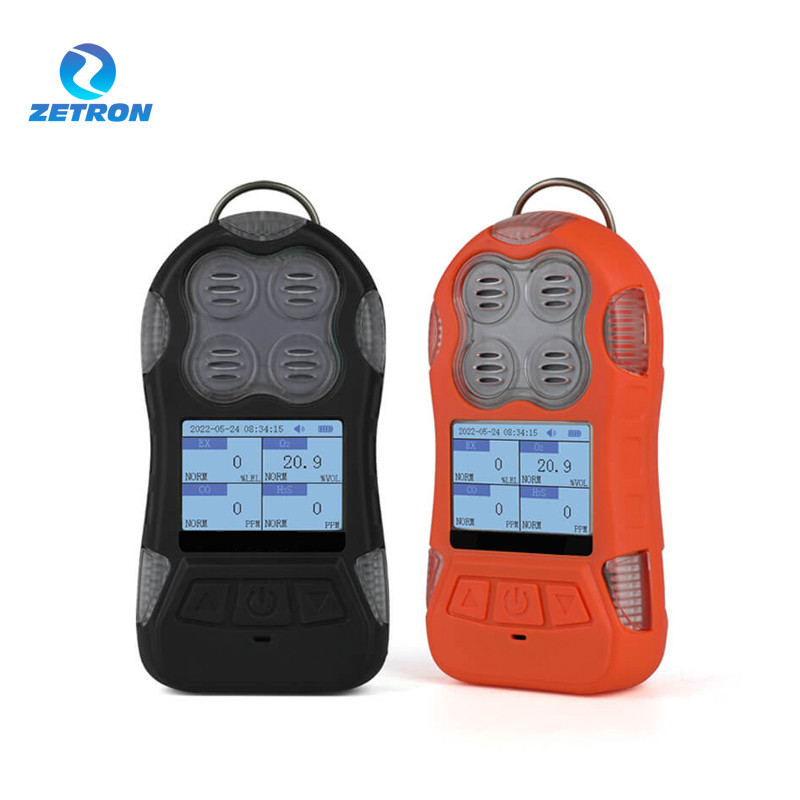

K-40 Zetron Gas Leak Detector Alarm Measurement Inspecting IP67

  • K-40 Zetron Gas Leak Detector Alarm Measurement Inspecting IP67
Place of Origin China
Brand Name Zetron
Certification CE
Model Number K-40
Minimum Order Quantity 1 set
Price USD 100/set / 900/set
Packaging Details 160*70*28mm
Delivery Time 1-10 work days
Payment Terms T/T, Western Union, MoneyGram, D/P, D/A, L/C
Supply Ability 1000 SET / week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Multi Gas Detector Sampling Method Natural Diffusion
Response Time T＜60s Protection Level IP67
Exterior Dimensions 136mm×72mm×32mm Weight 300g
Highlight

Zetron gas leak detector alarm

,

IP67 gas leak detector alarm
Leave a Message
Product Description

K40 Multi-gas Detector

OVERVIEW

The K40 multi-gas detector uses an advanced large-scale integrated circuit technology, Intelligent design technology and proprietary digital simulation hybrid communication technology gas detector. The detector uses a natural diffusion method to detect gas, and the sensitive element uses high -quality gas sensors. It has excellent sensitivity and excellent repetitiveness, convenient use and maintenance, which greatly meets the safety of the industrial sit.
The shell is made of high -strength engineering plastics and composite non-slip rubber. High intensity, good feel, waterproof, dustproof, explosion -proof. This detector is widely used in oil, chemical, environmental protection, metallurgy, refining, gas transmission and distribution, biochemical medicine, agriculture and other industries.

FEATURE



* Convert to 32 types of gas concentration
* Robust design Passed 7m drop test Waterproof and dustproof, IP67
* Wide range models Up to five combustible gases can be set as target gas (option) Enable to measure in "%LEL" and "ppm'Only for XP-3360lw and XP-3368I-WV

* Selectable power supply alkaline AA batteries / rechargeable nickel metal hydride AA batteries

* Timer and stopwatch function Only for XP-3318II and XP-3368II-W



PARAMETER

Sampling method natural diffusion
Accuracy ≦ 5% F.S.
Response time T＜60s
Explosion proof Ex ib IIB T3 Gb
Alarm Method four alarm method: sound, vibration, light, display
Operating Environment Operating temperature -10℃～55℃
Humidity ＜95%RH non-condensing
Operating voltage DC3.7V Li battery 1800mAh
Working time ≧8h continuously
Charging time 4h～6h
Sensor life 2 years
Protection category IP67
Weight about 300g (including battery but without accessories)
Dimension 136mm×72mm×32mm





Model Range Resolution L-alarm H-alarm
CO 0-1000ppm 1ppm 50ppm 150ppm
O2 0-30%vol 0.1%vol 19.5%vol 23.5%vol
H2 0-1000ppm 1ppm 50ppm 150ppm
H2S 0-100ppm 0.1ppm 10ppm 20ppm
CH4 0-100%LEL 1%lel 20%LEL 50%LEL
C2H4O 0-100ppm 1/0.1ppm 20ppm 50ppm
EX 0-100%LEL 1%lel/1%vol 20%LEL 50%LEL
C3H8 0-100%LEL 1%lel/1%vol 20%LEL 50%LEL
C2H5OH 0-100%LEL 1%lel/1%vol 20%LEL 50%LEL
NH3 0-100ppm 0.1/1ppm 20ppm 50ppm
CL2 0-20ppm 0.1ppm 5ppm 10ppm
O3 0-10ppm 0.1ppm 2ppm 5ppm
SO2 0-20ppm 0.1/1ppm 5ppm 10ppm
PH3 0-20ppm 0.1ppm 5ppm 10ppm
CO2 0-5000ppm 1ppm/0.1%vol 1000ppm 2000ppm
NO 0-250ppm 1ppm 50ppm 150ppm
NO2 0-20ppm 0.1ppm 5ppm 10ppm
HCN 0-50ppm 0.1/0.01ppm 10ppm 20ppm
HCL 0-20ppm 0.001/0.1ppm 5ppm 10ppm
CH2O 0-20ppm 1/0.1ppm 5ppm 10ppm
HF 0-100ppm 0.01/0.1ppm 2ppm 5ppm
C7H8/C8H10 0-20ppm 0.01/0.1ppm 5ppm 10ppm



Note: Not all gases and ranges are listed, if you need more information, please get in touch with us.
