GT-K90 Zetron Fixed Gas Leak Monitor Various Communication Methods Display In Real Time

Place of Origin China
Brand Name Zetron
Certification CE
Model Number GT-K90
Minimum Order Quantity 1 set
Packaging Details 160*70*28mm
Delivery Time 1-10 work days
Payment Terms T/T, Western Union, MoneyGram, D/P, D/A, L/C
Supply Ability 1000 SET / week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Product Name Fixed Gas Detector Connection Port M27*1.5mm
Humidity 0-93%RH (no Dew) Temperature -40℃~70℃
Size 26*19*13.5cm Installation Method Wall-mounted
High Light

Zetron gas leak monitor


Real Time Display gas leak monitor


Zetron co2 leak detector

Leave a Message
Product Description

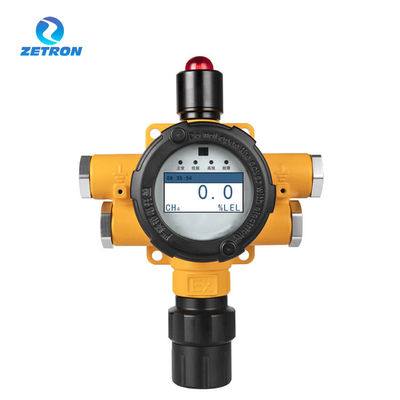

GT-K90 Fixed Gas Detector


GT-K90 fixed gas detector supports customization of more than 300 kinds of gases such as CO, EX, H2S, CO2, O2, CH4, 03, SO2, HCL, etc., and customization of different ranges. This gas detector is a smart product with various communication methods and displays in real time. This product uses 2.4 inches inch industrial grade OLED screen with high stability, high accuracy, and high intelligence real time monitoring and alarming can be carried out through simple settings.




* Integrated sound and light alarm indication

* SD memory card plus FLASH, data storage, and export are more convenient

* Full-scale temperature compensation, over-range protection

* Equipped with infrared remote control, the remote control distance is up to 8 meters

* Replace the sensor, no need for calibration

* Independent RTC dock

* IP66 protection grade


Protection class IP66
Connection port M27*1.5mm
Zero drift ≦±2% F.S.
Response Time ≦30s
Working pressure 36~106Kpa
Working environment

-40℃~70℃ <93%RH (no dew)

Resolution 0.1%LEL
Display error ±3%LEL
Detection principle catalytic combustion
Gas Sensor Life 2 years
Explosion-proof grade Ex d IIC T6 Gb
Cable 3x1.5mm2, 4x1.5mm'shielded cable
Weight 2.1KG
Dimensions 26*19*13.5cm
Model Range Resolution L-alarm H-alarm
CO 0-1000ppm 1ppm 50ppm 150ppm
O2 0-30%vol 0.1%vol 19.5%vol 23.5%vol
H2 0-1000ppm 1ppm 50ppm 150ppm
H2S 0-100ppm 0.1ppm 10ppm 20ppm
CH4 0-100%LEL 1%lel 20%LEL 50%LEL
C2H4O 0-100ppm 1/0.1ppm 20ppm 50ppm
EX 0-100%LEL 1%lel/1%vol 20%LEL 50%LEL
C3H8 0-100%LEL 1%lel/1%vol 20%LEL 50%LEL
C2H5OH 0-100%LEL 1%lel/1%vol 20%LEL 50%LEL
NH3 0-100ppm 0.1/1ppm 20ppm 50ppm
CL2 0-20ppm 0.1ppm 5ppm 10ppm
O3 0-10ppm 0.1ppm 2ppm 5ppm
SO2 0-20ppm 0.1/1ppm 5ppm 10ppm
PH3 0-20ppm 0.1ppm 5ppm 10ppm
CO2 0-5000ppm 1ppm/0.1%vol 1000ppm 2000ppm
NO 0-250ppm 1ppm 50ppm 150ppm
NO2 0-20ppm 0.1ppm 5ppm 10ppm
HCN 0-50ppm 0.1/0.01ppm 10ppm 20ppm
HCL 0-20ppm 0.001/0.1ppm 5ppm 10ppm
CH2O 0-20ppm 1/0.1ppm 5ppm 10ppm
HF 0-100ppm 0.01/0.1ppm 2ppm 5ppm
C7H8/C8H10 0-20ppm 0.01/0.1ppm 5ppm 10ppm


Note: Not all gases and ranges are listed, if you need more information, please contact us.
