Particle Size PM2.5 PM10 Air Quality Monitor Stationary Online Monitoring Zetron K-G60-TSP

Place of Origin China
Brand Name Zetron
Certification CE
Model Number K-G60-TSP
Minimum Order Quantity 1 set
Packaging Details 246*201*110mm
Delivery Time 1-10 work days
Payment Terms T/T, Western Union, MoneyGram, D/P, D/A, L/C
Supply Ability 1000 SET / week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Fixed Gas Detector Sensor PM2.5 PM10
Pressure 86 ~ 106Kpa Temperature -40℃~70℃
Size 236*181*90mm Voltage DC24V±15%
High Light

stationary pm2 5 detector

,

pm10 air quality monitor

,

pm2 5 air quality monitor

Leave a Message
Product Description

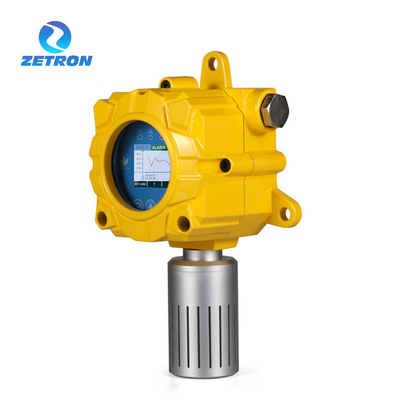

K-G60-TSP Fixed Dust Detector

OVERVIEW


K-G60-TSP intelligent dust detector is a stationary detector that can continuously detect PM2.5 and PM10 concentrations in the business environment.

The concentration value of the dust on the LCD display suitable for factory application should be higher than the preset alarm point to immediately start the sound and light alarm signal or drive the exhaust system; International standard 4-20ma signal can be directly connected to the plant DCS system or PLC, and RS485 digital signal can be connected to the plant host computer.





FEATURE



* Integrated sound and light alarm indication

* SD memory card plus FLASH, data storage, and export are more convenient

* Full-scale temperature compensation, over-range protection

* Equipped with infrared remote control, the remote control distance is up to 8 meters

* Replace the sensor, no need for calibration

* Independent RTC dock

* IP66 protection grade



PARAMETER

Sensor PM2.5, PM10
Pressure 86 ~ 106Kpa
Sampling method Laser Scattering
T&H -20℃-50℃, <95%RH
Response Time ≤10s
Voltage

DC24V±15%

Range (0-1000)ug/m3
  (0-6000)ug/m3
Display 2.0-inch colored LCD
Gas Sensor Life 1 year
Size 236*181*90mm

Particle Size PM2.5 PM10 Air Quality Monitor Stationary Online Monitoring Zetron K-G60-TSP 0
Tag: Dust detector, PM2.5, PM10, TSP detector, Fixed dust monitor, Total suspended particulate matter, OEM/ODM service.
