Electrochemical Sensor Combustible Gas Analyzer IP65 Zetron MS400

Place of Origin China
Brand Name Zetron
Certification CE
Model Number MS400
Minimum Order Quantity 1 set
Price USD 100/set / 900/set
Packaging Details 160*70*28mm
Delivery Time 1-10 work days
Payment Terms T/T, Western Union, MoneyGram, D/P, D/A, L/C
Supply Ability 1000 SET / week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name 4 In 1 Multi Gas Detector Gas Ex/LEL/CH4/O2/CO/H2S(optional)
Sampling Method Built-in Pump Sampling Sensor Catalytic Combustion Sensor
Alarm Type Light+Sound+Vibration Protection Level IP65
Exterior Dimensions 160×70×28mm Weight 300 G
High Light

electrochemical sensor combustible gas analyzer

,

ip65 combustible gas analyzer

,

electrochemical sensor portable gas leak detector

Leave a Message
Product Description

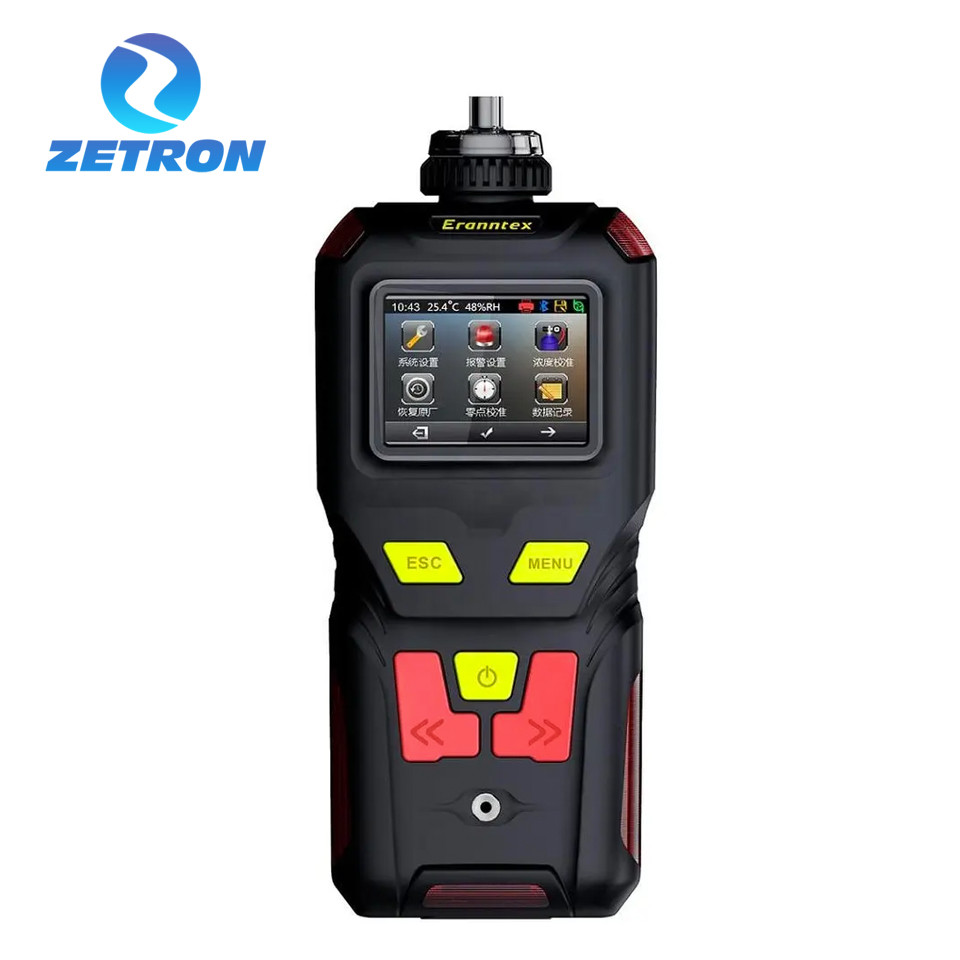

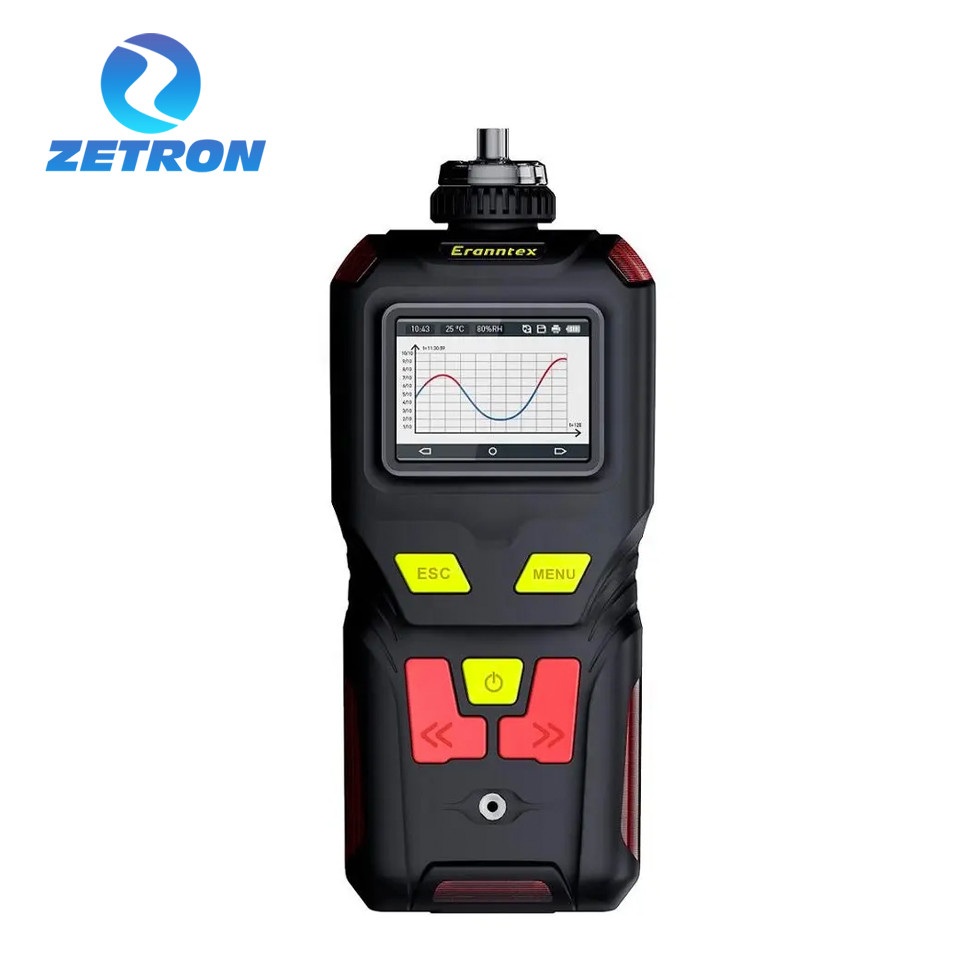

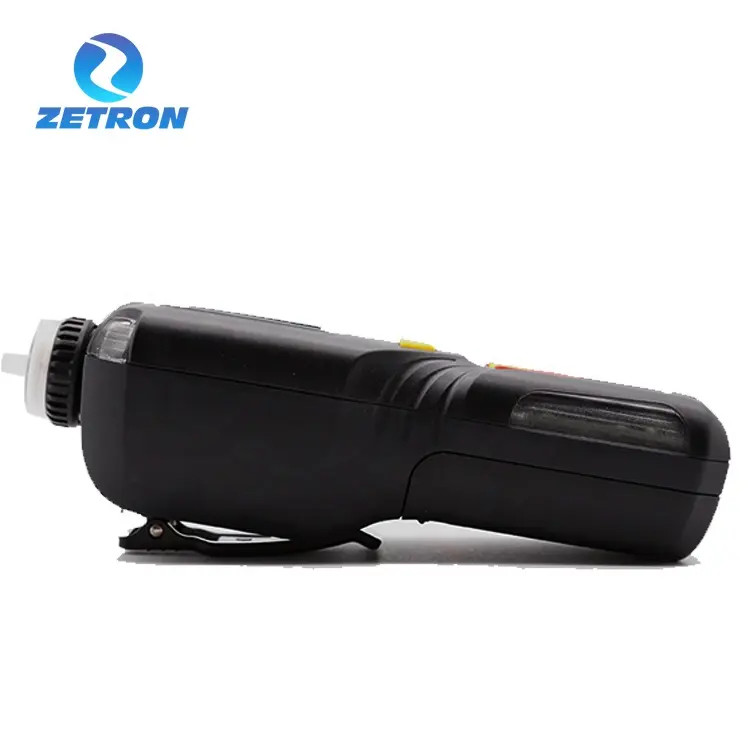

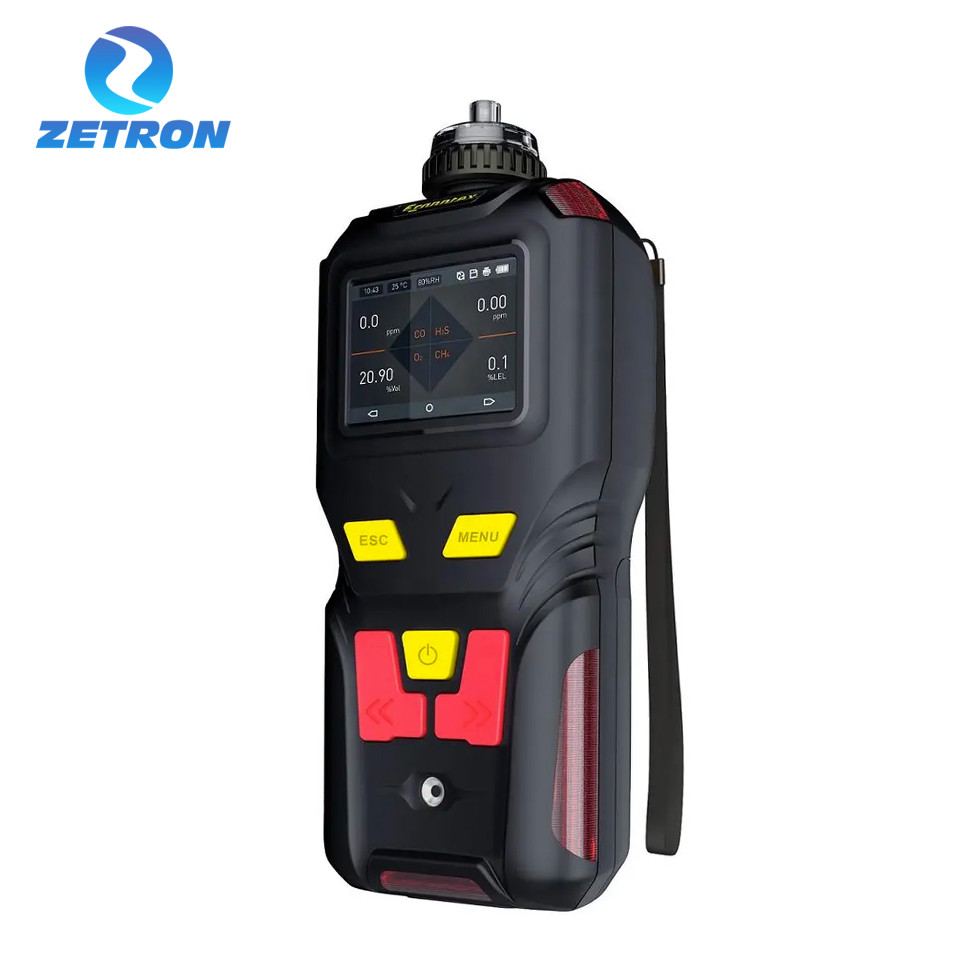

MS400 Four-in-One CombustibleGas Detector



OVERVIEW



In some specific places there are often gas emissions, such as petrochemical, coal, metallurgy, chemical, municipal gas, environmental monitoring and many other places. And some of these gases may be dangerous, such as flammable, explosive or contaminated, then you need to use the gas detector to detect them.

MS400 Series Gas Detector is up to 4 potential atmospheric hazards including oxygen, combustible and toxic gases, the types of gases for detection are more than 500 types, MS400 is unparalleled in its versatility, capability, and overall value.
It's adopted water-resistant line of portable gas detectors has transformed the market with its matchless array of features.
Continuously monitoring and displaying concentrations of up to 4 gases, the compact and lightweight MS400 was designed and engineered with an extensive host of applications in mind.



FEATURES & BENEFITS



1. Specially Designed for Use With Its Internal Pump, Optimized for Your Requirements

The MS400 is equipped with a very powerful internal pump.
It can be connected with hoses of up to 45 meters in length.
This means the pump is only operated when you actually need it. That saves energy, reduces wear and tear, and thereby extends the lifespan of the pump.



2. Compact Design, Easy to Use

Handy and durable, the MS400 is intuitive to operate single-handedly using three function keys. The easy-to-read color display clearly lays out all the information for you. Thanks to its compact and robust construction, the device can withstand even the harshest conditions.



3. Large Data Storage Management, Release, and Documentation In No Time
Standard configuration is the data storage capacity for 100, 000 entries.
Real-time storage and fixed time storage are supported, or only the data of the alarm concentration will be stored.
It is supported to use the localhost to view, delete data, and upload the data via USB interface to the computer for data analysis or printing.RS485 communication is an optional configuration.



APPLICATION


All the cases require the portable rapid detection of gas concentrations such as petroleum, chemical, pharmaceutical, environmental protection, combustion gas distribution, warehousing, smoke gas analysis, air governance, and so on.



SPECIFICATION



Measuring gas
Hydrogen sulfide (H2S)
Carbon monoxide (CO)
Oxygen (O2)
Sulfur dioxide (SO2)
Measuring range
H2S:0-100000ppm
CO:0-10000ppm
O2:0-100%Vol
SO2:0-10000ppm
and other ranges can be customized
Resolution
0.01 ppm
1 ppm
0.01 %Vol
0.1 %Vol
Other resolution can be customized
Sensor type
Infrared Sensor
Other Sensor:Laser , Electrochemical, Thermal conductivity, catalytic combustion, thermal conductivity, PID photoionization, and so on.
Depending on the type of gas, range, field environment and user demand,
Other sensors can be customized.
Measuring type
Built-in Pump sunction
Response time
T90<30s
Display
2.31-inch high-definition color screen
Alarm method
sound & light alarm;
vibration alarm;
sound & light + vibration alarm;
turning off the alarm
Battery
DC3.7V, 4500mA high capacity rechargeable polymer battery
Data storage
Standard capacity is 100, 000 entries
Working temperature
-40 ℃ ~ + 70 ℃
Working humidity
≤10 ~ 95% RH
Housing
Rubber enclosure
Standard accessories

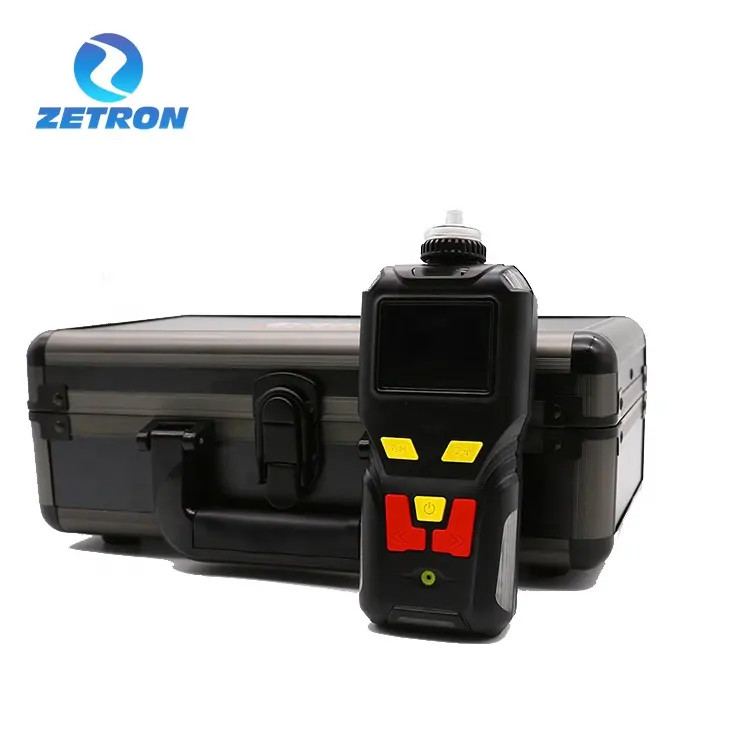

Manual, qualification certificate, warranty card, USB charger (including the data cable), belt clip, colorful packaging box (optional high-grade aluminum instrument case)
Dimension
160×70×28mm (L×W×H)
Weight
300g
Ex grade
Ex ia IIC T6 Ga Intrinsically safe type
Ingress protection
IP65
