UVO-201 Portable Ozone Gas Detector With Digital Tube Screen In Ozone Concentration

Place of Origin China
Brand Name Zetron
Model Number UVO-201
Minimum Order Quantity 1 pcs
Packaging Details paper carton
Delivery Time 3-7 days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 1000 set/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name UVO-201 Ozone Gas Analyzer Measuring Range 0~5ppm
Accuracy 0.01ppm Measuring Time 10s
Measurement Mode Automatic Overall Dimension 280*120*110mm
Weight 3.5kg
High Light

0.01ppm portable ozone gas detector

,

high accuracy portable ozone gas detector

Leave a Message
Product Description

UVO-201 Ozone Gas Analyzer



OVERVIEW

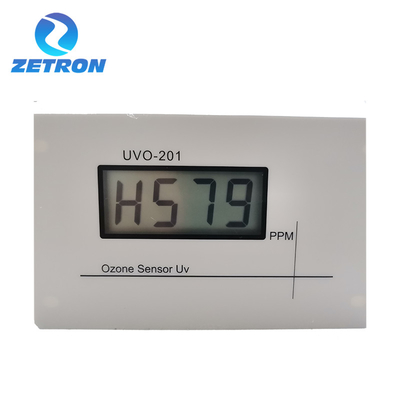

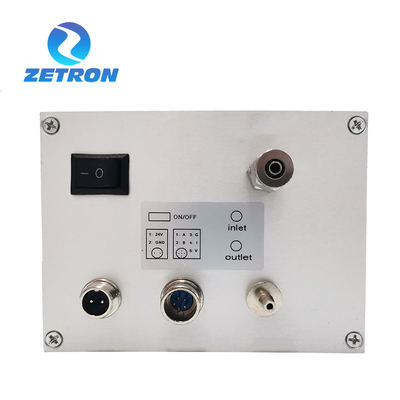

UVO-201 ozone detector (hereinafter referred to as the instrument) is used to measure the concentration of ozone, the detection data is displayed directly through the digital tube, and you can read the analog signal corresponding to the measurement data through the analog signal output terminal at the back of the instrument. The instrument adopts imported ultraviolet light source with long service life and high stability coefficient.



FEATURE



● Over-range measurement, up to 500ppm.

● Multiple signal outputs for secondary product development

● Measurement data is displayed directly, no need to operate

● Lightweight, stable performance, high measurement accuracy



APPLICATION



This instrument is mainly used in ozone preparation workshop (ozone generator, ozone plant, etc.), chemical, petroleum, paper, textile, pharmaceutical and flavor and fragrance industry, water treatment, food and medicine sterilization workshop and other occasions.



PARAMETER



Measuring range 0~5ppm
Accuracy 0.01ppm
Measuring time 10s
Power-on warm-up time 30min
Ambient Temperature 0~40℃
Gas flow rate 1.5L/min
Measurement mode automatic
Power supply DC24V10 / 400mA
Overall Dimension 280*120*110mm
Weight 3.5kg
