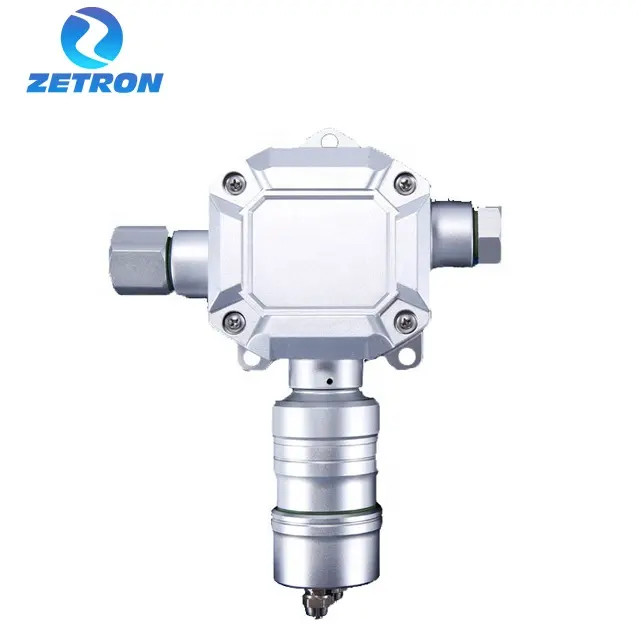

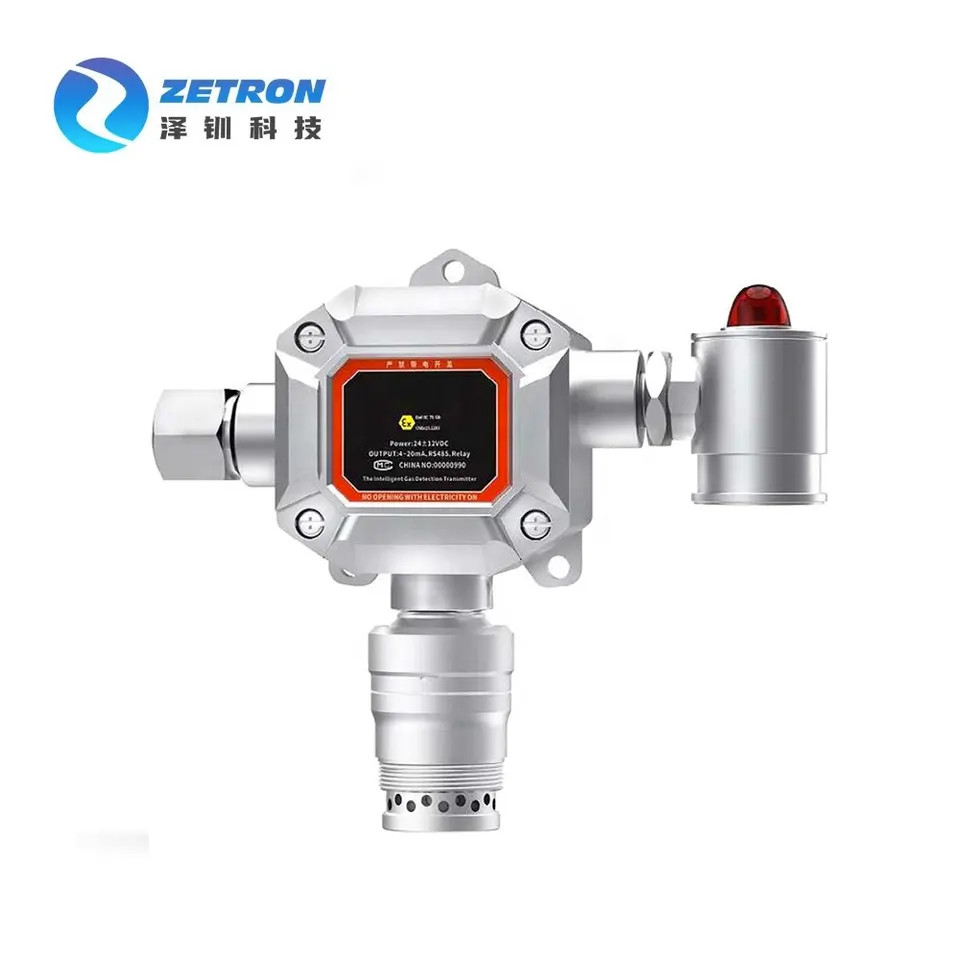

PID Zetron MIC300 Harmful Gas Detector Online ip66
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Type | MIC-300 | Detection Range | 0～1000, 2000, 5000, 10000ppm, 30%Vol, 100%Vol Optional |
|---|---|---|---|
| Gas Unit | PPM, Mg/m3, Vol%, LEL%, PPHM, Ppb, Mg/l. | Explosive Grade | Exd II CT6/DIP A20 TA, T6 |
| Protection Level | IP66 | Material | Aluminum Alloy |
| Warranty | 1 Year | Size | 210*170*85mm (L*H*W) |
| Highlight | pid harmful gas detector,ip66 harmful gas detector |
||
Product Description
MIC300 Bromomethane CH3Br Gas Monitoring Equipments
PID Detection Principles
OVERVIEW
MIC300 Series gas detector can be used in 24 hours continuous online monitoring of concentrations of multiple types of gases in the filed.The types for detection are more than 500 types.
With a 4-20 mA analogue output, can be simply integrated into a Distributed Control System (DCS) to provide warnings and enable control of high levels in the working environment.
FEATURES
Broad operating temperatures: -40～+70℃, and temperature compensation is supported.
Intrinsically safe circuit design, explosion-proof, with Level II lightning protection, and anti-static capabilities. Meet the national standard, and it is resistant to the high-intensity pulse surge current. With the function of preventing the reverse connection. It is compliant with EMI, and EMC standards.
Intrinsically safe circuit design, explosion-proof, with Level II lightning protection, and anti-static capabilities. Meet the national standard, and it is resistant to the high-intensity pulse surge current. With the function of preventing the reverse connection. It is compliant with EMI, and EMC standards.
Strong, durable and explosion-proof shell is suitable for the use at a variety of hazardous places and harsh industrial environments, is widely used in the industries such as petroleum, chemical, metallurgy, refining, gas transmission and distribution, biochemical and pharmaceutical, and so on.
Application
Fixed gas detector is mainly used in underground tunnels, sewage treatment plants, chemical plants, steel plants, coal mines, boiler rooms, oil pipelines, gas stations, indoor air quality testing, sterilization, frozen warehouses, underground corridors and other mixed gas scenarios.
SPECIFICATION
|
Type
|
Fixed Gas Detector
|
||||
|
Detection range
|
0~ 10ppm
0~ 20ppm
0~50ppm
0~100ppm
Other ranges can be customized
|
||||
|
Resolution
|
0.01ppm or 0.001ppm (0 ~ 10 ppm);
0.01ppm (0 ~ 100 ppm), Other ranges can be customized
|
||||
|
Detection principle
|
Electrochemical, infrared, thermal conductivity, PID photoionization, and so on.
Depending on the type of gas, range, field environment and user demand,
Sensor can be customized
|
||||
|
Sensor service life
|
Electrochemical principle: 2 ~ 3 years;
Infrared principle: 5 ~ 10 years;
Thermal conductivity: 5 years
|
||||
|
Allowable error
|
≤±3% F.S (other or higher precision levels can be customized)
|
||||
|
Linearity
|
≤±2%
|
Repeatability
|
≤±2%
|
Uncertainty
|
≤±2%
|
|
Response time
|
T90≤30 seconds
|
Recovery time
|
≤30 seconds
|
||
|
Working environment
|
Temperature: -40 ℃ ~ + 70 ℃, humidity: ≤10 ~ 95% RH (regular)
|
||||
|
Working voltage
|
12 ~ 30VDC direct current
the standard power supply for a single equipment is 24V, DC stabilized voltage switching power supply of 1A or greater than 1A
|
||||
|
Power supply reference
|
24V, 2.1A is possible to drive 40 units of toxic gas detector,
or 15 units of flammable, infrared gas detector.
|
||||
|
Working method
|
Fixed type installation, online detection, diffusion type measurement
|
||||
|
Protection level
|
IP65
|
||||
|
Explosion-proof mark
|
ExdⅡCT6, certificate number: CNEx15.1283
|
||||
|
Exterior dimensions
|
233×205×65mm (L×H×W)
|
||||
|
Weight
|
1.0 Kg
|
||||
|
Standard accessories
|
Manual, qualification certificate, warranty card, outer packaging box
|
||||
