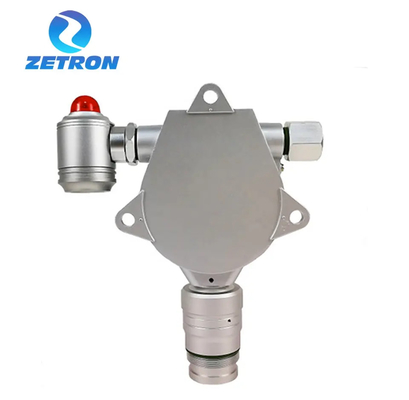

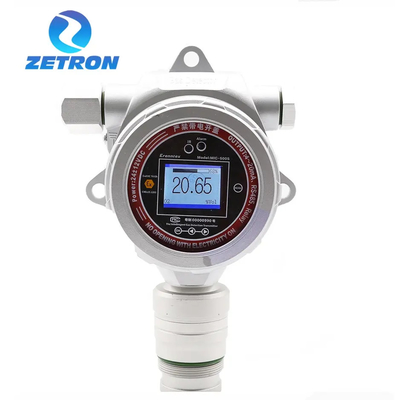

Fixed Zetron MIC500S Combustible Gas Leak Detector Pipeline Type And Wall Mounting Type

  • Fixed Zetron MIC500S Combustible Gas Leak Detector Pipeline Type And Wall Mounting Type
  • Fixed Zetron MIC500S Combustible Gas Leak Detector Pipeline Type And Wall Mounting Type
Place of Origin China
Brand Name Zetron
Certification CE
Model Number MIC500S
Minimum Order Quantity 1
Price USD 670-- 690/set
Packaging Details paper carton
Payment Terms L/C, D/A, T/T, MoneyGram

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Fixed Gas Detector Model Number MIC500S
Function Online Gas Detector Gas Unit PPM, Mg/m3, Vol%, LEL%, PPHM, Ppb, Mg/l.
Weight 1.8(kg) Size 210*170*85mm (L*H*W)
Highlight

pipeline type combustible gas leak detector

,

100ppm combustible gas leak detector

,

fixed wall mounting combustible gas detector
Leave a Message
Product Description

MIC500S Fixed Toxic And Harmful Gas Detector



OVERVIEW



MIC500S Series gas detector can be used in 24 hours continuous online monitoring of concentrations of multiple types of gases in the filed.The types for detection are more than 500 types.
With a 4-20 mA analogue output, can be simply integrated into a Distributed Control System (DCS) to provide warnings.
Simple to install service and calibrate, MIC500S requires no hot work permit and the PID sensor is accessible and changeable in a matter of seconds.

FEATURES

Mis-operation recognition function: automatic recognition and prevention of the concentration calibration mis-operation, which is possible to avoid the poor performance that may be caused by human factors. Zero-point automatic tracking; long-term use will not be affected by the zero drift. Multi-level calibration for target points, can ensure the linearity and accuracy of the measurements. Chinese or English interfaces can be selected. Broad operating temperatures: -40～+70℃, and temperature compensation is supported. Record the calibration logs, repair logs, failure history, failure countermeasure solutions, sensor service life due reminder, and function of reminder for the time of next concentration calibration.



APPLICATION

All the cases require the fixed installation, and online detection of gas concentrations such as petroleum, chemical, pharmaceutical, environmental protection, combustion gas distribution, warehousing, smoke gas analysis, air governance, and so on.


SPECIFICATION



Gas
NO/NO2
can be customized
Range
0-100ppm
other ranges can be customized
Size
210×170×85mm (L×H×W)
Weight
1.8 Kg
Installation method
Pipeline Type
Wall Mounting Type
Display
1.7-inch high-definition color screen
Environment
Temperature: -40 ℃ ~ + 70 ℃
Humidity: ≤10 ~ 95% RH (regular)
Approvals
IP65; Exd Ⅱ CT6
Accessories
Manual, qualification certificate, warranty card, outer packaging box
Working Voltage
12 ~ 30VDC direct current, the standard power supply for a single equipment is 24V, DC stabilized voltage switching power supply of 1A or greater than 1A
Working Method
Fixed type installation, online detection, diffusion type measurement; and it is possible to select the measurement of pipeline type, flow-through type, and pump-suction type.
Connecting Cable
Adopted 4 ~ 20mA three-core shielding cable, adopted four-core for RS485, when the distance exceeded 100 meters, the single wire diameter ≥1.5mm; and the shielding layer will be connected to the earth.
Optional items
Alarms;Wireless Transmission;Pretreatment System; SD Card;
Temperature and Humidity Measurement;
Accessory for connection with computer for monitoring.
Installation Type Accessories
(Optional configuration)
Wall mounting bracket, mounting clips for fixation on the pipes (1/2", 3/4" pipe),
stainless steel threaded welding seat or flange to be installed on the pipeline (it is necessary to mark the flange or pipe size, such as DN50, DN15 ...),
rain cover, 24VDC or 220AC sampling pump (sampling distance is 10 m),
vacuum pump (sampling distance is 40 m),
24V switching power supply, pressure reducing valve, flow meters
