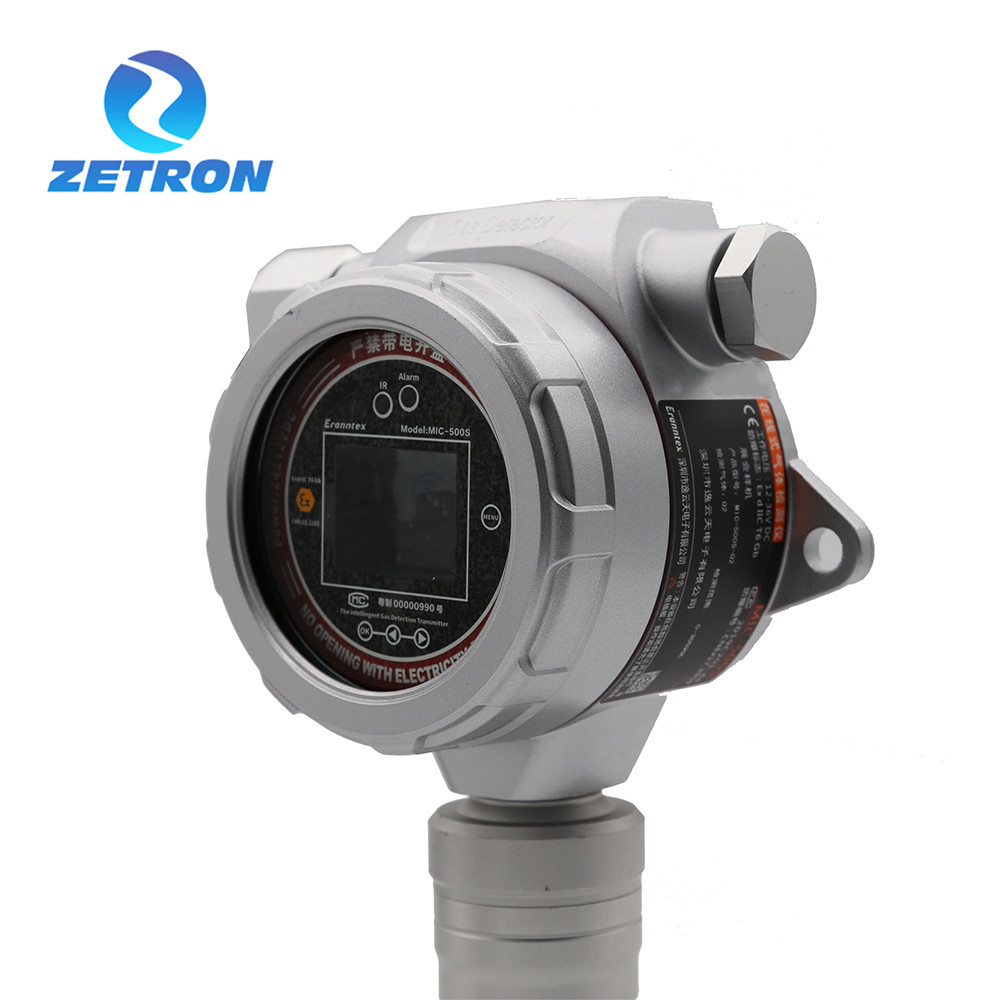

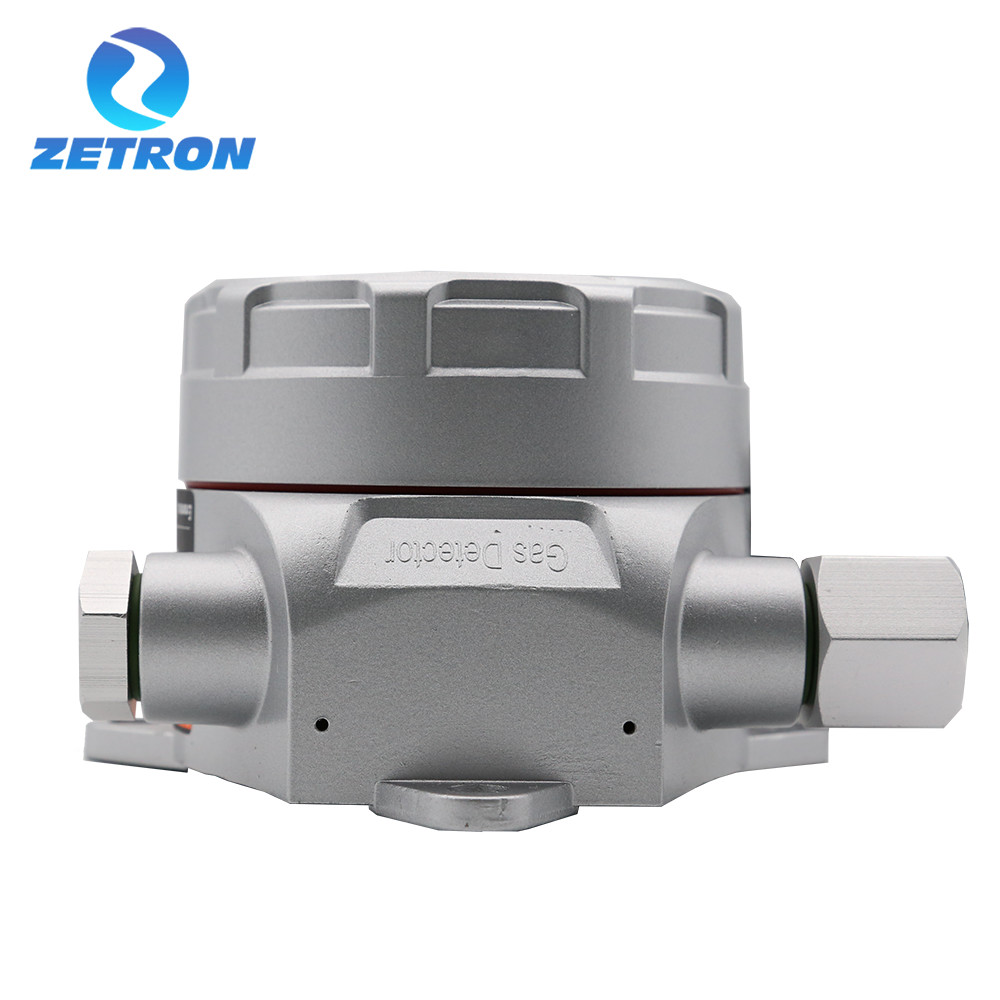

CE Zetron MIC500S Outdoor Gas Leak Detector Electrochemical / IR Sensor

Place of Origin China
Brand Name Zetron
Certification CE
Model Number MIC500S
Minimum Order Quantity 1
Price USD 670-- 690/set
Packaging Details paper carton
Payment Terms L/C, D/A, T/T, MoneyGram

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Product Name Fixed Gas Detector Model Number MIC500S
Function Online Gas Detector Gas Unit PPM, Mg/m3, Vol%, LEL%, PPHM, Ppb, Mg/l.
Weight 1.8(kg) Size 210*170*85mm (L*H*W)
High Light

mic500s outdoor gas leak detector


electrochemical outdoor gas leak detector

Leave a Message
Product Description

MIC500S Fixed Gas Detector




MIC500S Series gas detector can be used in 24 hours continuous online monitoring of concentrations of multiple types of gases in the filed.The types for detection are more than 500 types.
With a 4-20 mA analogue output, can be simply integrated into a Distributed Control System (DCS) to provide warnings.
Simple to install service and calibrate, MIC500S requires no hot work permit and the PID sensor is accessible and changeable in a matter of seconds.
User-friendly, reliable and cost-effective way to ensure safety, compliance and productivity.
Strong, durable and explosion-proof shell is suitable for the use at a variety of hazardous places and harsh industrial environments, is widely used in the industries such as petroleum, chemical, metallurgy, refining, gas transmission and distribution, biochemical and pharmaceutical, and so on.


Infrared remote control

① Standard configuration includes the infrared remote control, it is possible for one-key operation via infrared remote control function key, which can achieve the operation without opening the cover under hazardous situations, such as: the functions like modification of the alarm point, density calibration, zeropoint calibration, noise reduction, restoring the factory setting, and so on.


Powerful and convenient humanized function

① Multiple alarm modes, and multi-directional and threedimensional indication alarm states. It includes: 2 sets of relay switch output, sound & light alarm (optional configuration), and display screen visual alarm.Alarm types include: concentration alarm, and failure alarm.Multiple alarm mode settings: low alarm, high alarm, interval alarm, and weighted average alarm.

② Zero-point automatic tracking; long-term use will not be affected by the zero drift.

③ Multi-level calibration for target points, can ensure the linearity and accuracy of the measurements.

④ Log recording Record the calibration logs, repair logs, failure history, failure countermeasure solutions, sensor service life due reminder, and function of reminder for the time of next concentration calibration.

⑤ Data recovery function; in case of mis-operation, it is possible to select partial or full recovery.

⑥ Mis-operation recognition function: automatic recognition and prevention of the concentration calibration mis-operation, which is possible to avoid the poor performance that may be caused by human factors.


The detector is widely used in petroleum, chemical industry,environmental protection, metallurgy, refining, gas, biochemical medicine, agriculture, fire protection, Archaeology and other industries and places that need safety monitoring for toxicity and harmfulness, explosion prevention.


can be customized
other ranges can be customized
210×170×85mm (L×H×W)
1.8 Kg
Installation method
Pipeline Type
Wall Mounting Type
1.7-inch high-definition color screen
Temperature: -40 ℃ ~ + 70 ℃
Humidity: ≤10 ~ 95% RH (regular)
IP65; Exd Ⅱ CT6
Manual, qualification certificate, warranty card, outer packaging box
Working Voltage
12 ~ 30VDC direct current, the standard power supply for a single equipment is 24V, DC stabilized voltage switching power supply of 1A or greater than 1A
Working Method
Fixed type installation, online detection, diffusion type measurement; and it is possible to select the measurement of pipeline type, flow-through type, and pump-suction type.
Connecting Cable
Adopted 4 ~ 20mA three-core shielding cable, adopted four-core for RS485, when the distance exceeded 100 meters, the single wire diameter ≥1.5mm; and the shielding layer will be connected to the earth.
Optional items
Alarms;Wireless Transmission;Pretreatment System; SD Card;
Temperature and Humidity Measurement;
Accessory for connection with computer for monitoring.
Installation Type Accessories
(Optional configuration)
Wall mounting bracket, mounting clips for fixation on the pipes (1/2", 3/4" pipe),
stainless steel threaded welding seat or flange to be installed on the pipeline (it is necessary to mark the flange or pipe size, such as DN50, DN15 ...),
rain cover, 24VDC or 220AC sampling pump (sampling distance is 10 m),
vacuum pump (sampling distance is 40 m),
24V switching power supply, pressure reducing valve, flow meters


Gases to be detected
Response time T90
Oxygen gas ( O2 )
≤10 seconds
Nitrogen oxide ( NOX )
≤30 seconds
Chlorine gas ( CL2 )
≤30 seconds
Ammonia gas ( NH3 )
≤30 seconds
Hydrogen gas ( H2 )
≤30 seconds
Nitrogen gas ( N2 )
≤10 seconds
Carbon monoxide ( CO )
≤25 seconds
Carbon dioxide ( CO2 )
≤30 seconds
Formaldehyde ( CH2O )
≤30 seconds
Ozone ( O3 )
≤20 seconds
Note: Not all gases and range are listed, if you need more information, please contact us.
