Robust Zetron Portable Multi Gas Detector MUNI MP420 For CO / H2S / O2 / LEL

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
Product Name | 4 In 1 Compact Multi-Gas Detectors | Function | Portable Gas Detector |
---|---|---|---|
IP Rating | IP-68 | Size | 4.33 X 2.36 X 1.10 In (110 X 60 X 28 Mm) |
Weight | 8 Oz (230 G) | Temperature | -4° To 122°F (-20°C To 50°C) |
Humidity | 0% To 95% Relative Humidity (non-condensing) | ||
Highlight | robust portable multi gas detector,4in1 portable multi gas detector,robust portable multi gas analyzer |
Product Description

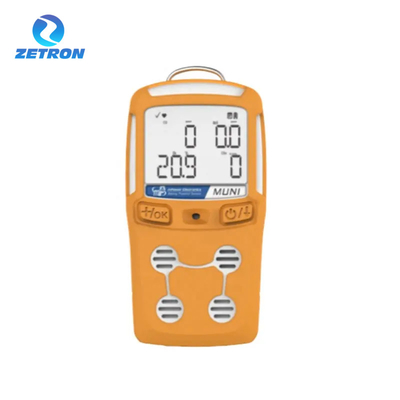

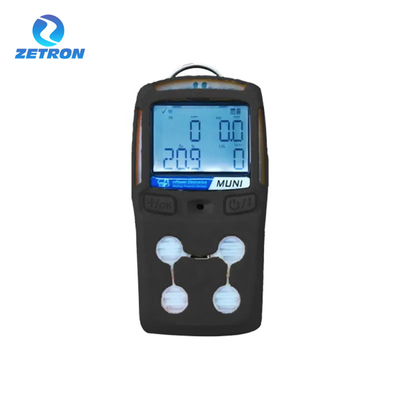

mPower MUNI MP420
4 In 1 Compact Multi-Gas Detectors
OVERVIEW
The MUNI MP420 is a compact and lightweight 4-gas detector for worker safety at hazardous locations, with four standard sensors for oxygen (O2), combustibles (LEL), carbon monoxide (CO) and hydrogen sulfide (H2S). Alternative sensors are low-power infrared methane (CH4), sulfur dioxide (SO2), and hydrogen cyanide (HCN). The detector is packaged in a robust housing with no moving parts. Its battery power offers 24 hrs for a standard 4-gas detector, and extended runtime when using a low-power infrared sensor. The simple, 2-button operation results in ultimate ease of use and significantly reduced time spent training the user. To save user cost, sensors are not interchangeable and must be specified at time of purchase.
FEATURES
* Compact, robust, lightweight & wearable
* Auto backlit LCD with large numeric digits
* Easy-to-navigate menu with two buttons
* Battery operation 24 hours with pellistor LEL sensor extended time with low-power infrared LEL sensor
* Tri-color status indicators on regular self-diagnosis of sensor, battery and circuit
* Wide angle LED alarms
* 1000 Events log
* Combination charge adapter / micro-USB PC interface cable
* IP-68 weather ingress rating
* Optional BLE wireless connectivity
* Optional MuniDock for convenient bump & calibration
* Up to 4 factory-configured sensors selected from 8 sensor options
* Sensors replaceable but not interchangeable (to save user cost)
PRODUCT PARAMETER
Size
|
4.33 x 2.36 x 1.10 in (110 x 60 x 28 mm)
|
Weight
|
8 oz (230 g)
|
Sensor
|
Standard LEL (Pellistor), O2-LF (Pb-free), CO and H2S
|
Alternatives CH4 (NDIR), O2 (Galvanic), SO2 and HCN
|
|
Replaceable but not interchangeable
|
|
Battery
|
Rechargeable Li-ion pack: ≥ 24 hours (with Pellistor) or extended run time (with NDIR)
|
Direct Readout
|
Real-time reading of gas concentration
|
Visual compliance indicator
|
|
Battery status
|
|
STEL, TWA, peak and minimum values
|
|
Display
|
Segment LCD, 1.75 x 1.25 in (44 x 32 mm) with LED backlight for enhanced readability
|
Keypad
|
2 operation keys
|
Calibration
|
Manual calibration. MuniDock or Calicase allows automatic bump test and calibration
|
Alarm
|
Wireless remote alarm notification, audible (95dB@30cm), vibration, visual (flashing bright red LEDs), and on-screen indication of
alarm conditions Man Down Alarm with pre-alarm and real-time remote wireless notification |
Datalogging
|
1000 Events (Software allows printing of Calibration Certificate)
|
Charging and Communication
|
Charging with AC adapter or cable to PC
|
PC comm for data download, monitor setup & firmware upgrades via cable, optional BLE (Bluetooth Low Energy), or MuniDock
|
|
Temperature
|
-4° to 122°F (-20°C to 50°C)
|
Humidity
|
0% to 95% relative humidity (non-condensing)
|
IP Rating
|
IP-68
|
Safety Certifications
|
UL/cUL: Class I, Div 1, Group A, B, C, D
|
T4, -20°C ≤ Tamb ≤ +50°C
|
|
EMC/RFI
|
|
EMC directive: 2004/108/EC
|
|
ATEX II 1G Ex da ia IIC T4 Ga
|
|
Warranty
|
2-year including sensors
|
3-years with NDIR-LEL/O2-LF/H2S/CO
|
APPLICATION SCENES
* Oil and gas
* Fire ground “Toxic Twins” detection
* Environmental
* Chemical
* Pharmaceutical
* Telecommunications
* Multi-gas leak detection in industries such as chemical, food and beverage, oil and gas (downstream)
