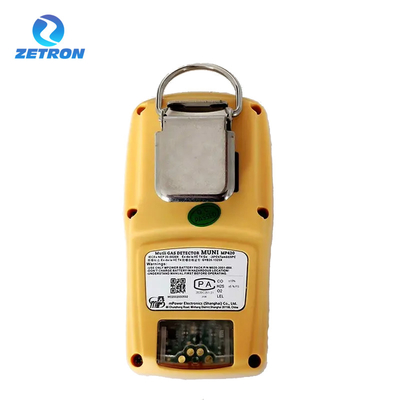

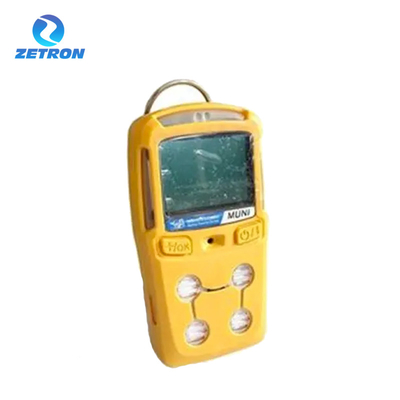

Zetron MUNI MP420 Portable Multi Gas Detector Compact Diffusion Type For Industrial Hygiene

Place of Origin China
Brand Name Zetron
Certification CE
Model Number mPower MUNI MP420
Minimum Order Quantity 1 pcs
Price USD 368/set- 460/set
Packaging Details carton
Delivery Time 14 work days
Payment Terms Western Union, MoneyGram
Supply Ability 1000 Piece/Pieces per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name 4 In 1 Multi Gas Detectors CO/H2S/O2/LEL Gas Analyzer Function Portable Gas Detector
IP Rating IP 68 Size 4.33 X 2.36 X 1.10 In (110 X 60 X 28 Mm)
Weight 8 Oz (230 G) Temperature -4° To 122°F (-20°C To 50°C)
Humidity 0% To 95% Relative Humidity (non-condensing)
High Light

IP 68 portable multi gas detector

,

Compact Diffusion portable multi gas detector

,

IP 68 portable multi gas analyzer

Leave a Message
Product Description
mPower MUNI MP420
4 In 1 Compact Multi-Gas Detectors

OVERVIEW

The MUNI MP420 is a compact and lightweight 4-gas detector for worker safety in hazardous locations with four standard sensors for oxygen (O2), combustibles (LEL), carbon monoxide (CO), and hydrogen sulfide (H2S). Alternative sensors include low power infrared methane (CH4), sulfur dioxide (SO2) and hydrogen cyanide (HCN). The detector is housed in a rugged enclosure with no moving parts. Its battery power provides 24 hours of operation for a standard 4-gas detector and extended run time when using a low power infrared sensor. Simple 2-button operation provides ultimate ease of use and significantly reduces user training time. To save users money, sensors are not interchangeable and must be specified at the time of purchase.

FEATURES

• Various models for basic confined space entry (CSE) compliance, plus SO2 and HCN sensors.
• Diffusion sampling
• Compact, robust, lightweight & wearable
• Auto backlit LCD with large numeric digits
• Easy-to-navigate menu with two buttons
• Up to 4 replaceable sensors out of 8 choices; non-interchangeability reduces monitor cost
• Battery operation 24 hours with pellistor LEL sensor or extended time with low-power infrared LEL sensor
• Two-color status indicators on regular self-diagnosis of sensor, battery and circuitry
• Wide angle LED alarms
• 1000 Events log
• Combination charge adapter / micro-USB PC interface cable
• IP-68 weather ingress rating
• Optional BLE wireless connectivity
• Optional MuniDock for convenient bump & calibration
• Durable double-shot outer case

PRODUCT PARAMETER

Size
4.33 x 2.36 x 1.10 in (110 x 60 x 28 mm)
Weight
8 oz (230 g)
Sensor
Standard LEL (Pellistor), O2-LF (Pb-free), CO and H2S
Alternatives CH4 (NDIR), O2 (Galvanic), SO2 and HCN
Replaceable but not interchangeable
Battery
Rechargeable Li-ion pack: ≥ 24 hours (with Pellistor) or extended run time (with NDIR)
Direct Readout
Real-time reading of gas concentration
Visual compliance indicator
Battery status
STEL, TWA, peak and minimum values
Display
Segment LCD, 1.75 x 1.25 in (44 x 32 mm) with LED backlight for enhanced readability
Keypad
2 operation keys
Calibration
Manual calibration. MuniDock or Calicase allows automatic bump test and calibration
Alarm
Wireless remote alarm notification, audible (95dB@30cm), vibration, visual (flashing bright red LEDs), and on-screen indication of
alarm conditions Man Down Alarm with pre-alarm and real-time remote wireless notification
Datalogging
1000 Events (Software allows printing of Calibration Certificate)
Charging and Communication
Charging with AC adapter or cable to PC
PC comm for data download, monitor setup & firmware upgrades via cable, optional BLE (Bluetooth Low Energy), or MuniDock
Temperature
-4° to 122°F (-20°C to 50°C)
Humidity
0% to 95% relative humidity (non-condensing)
IP Rating
IP-68
Safety Certifications
UL/cUL: Class I, Div 1, Group A, B, C, D
T4, -20°C ≤ Tamb ≤ +50°C
EMC/RFI
EMC directive: 2004/108/EC
ATEX II 1G Ex da ia IIC T4 Ga
Warranty
2-year including sensors
3-years with NDIR-LEL/O2-LF/H2S/CO

Sensor Range Resolution Response Time (t90)

1. Combustible (LEL)

  • Pellistor
  • NDIR
  • 0-100%LEL
  • 0-100% LEL CH4
1%LEL
  • 15 sec
  • 30 sec

2. Oxygen (O2)



  • Lead-free
  • Galvanic
0-30%Vol 0.1%Vol
15 sec

3. Hydrogen Sulfide (H2S) or

Hydrogen Cyanide (HCN)

0-100ppm

0-50ppm

0.1ppm

0.1ppm

15 sec
45 sec

4. Carbon Monoxide (CO) or

Sulfur Dioxide (SO2)

0-1000ppm

0-20ppm

1ppm

0.1ppm

15 sec
30 sec





* Sensors are replaceable but NOT interchangeable (including lead-free and galvanic oxygen). Sensor configuration must be decided at time of purchase because each configuration has a unique circuit board.



APPLICATION SCENES

The detector is widely used in petroleum, chemical industry,environmental protection, metallurgy, refining, gas, biochemical medicine, agriculture, fire protection, Archaeology and other industries and places that need safety monitoring for toxicity and harmfulness, explosion prevention.
