45 Meters Zetron Neo Photoionization Detector Voc Handheld Pid Sensor For Ppb

Place of Origin China
Brand Name Zetron
Certification CE
Model Number mPower NEO
Minimum Order Quantity 1 pcs
Price USD 368/set- 460/set
Packaging Details carton
Delivery Time 14 work days
Payment Terms L/C, T/T
Supply Ability 1000 Piece/Pieces per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Product Name NEO Photo-Ionization Detectors Function Portable Gas Detector
Response Time T90 3 Seconds For VOCs ;45 Seconds With Benzene Filtering Tubes Accuracy ±3% (at Calibration Point)
Keypad 4 Operation Keys Display 128 X 128 Graphical LCD, 1.77 X 1.73 In (45 X 44 Mm)
IP Rating P-66/67 Size 9.06 X 3.15 X 2.36 In (230 X 80 X 60 Mm)
Weight 24.69 Oz (700 G)
High Light

45 meters photoionization detector voc


pid sensor photoionization detector voc


handheld photo ion detector

Leave a Message
Product Description

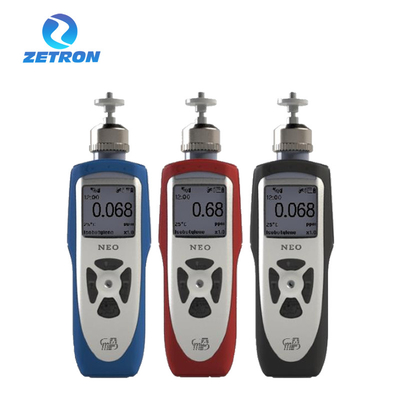

NEO Photo-Ionization Detectors
The NEO is one of the most advanced handheld VOC (Volatile Organic Compound) monitors available for ppb (parts per billion) detection. The NEO offers several models from the most sensitive 1 ppb to a high range up to 15,000 ppm for different applications and a benzene-specific version (NEO BENZ). A novel design of Photo-ionization Detector (PID) and Ultraviolet (UV) lamp reduces interferences due to humidity. Options include real-time data monitoring with a built-in wireless modem using mPower Suite application software.

1. Size: 9.06 x 3.15 x 2.36 in (230 x 80 x 60 mm), Weight: 25 oz (700 g)

2. 1 ppb to 15,000 ppm ranges of VOC

3. 3-second response time

4. Large and intuitive display

5. Integrated Correction Factor list of more than 700 compounds

6. Built-in pump for up to 45 meters sampling distance

7. Man-Down alarm with real-time remote wireless notification

8. Benzene/Butadiene specific version available with filtering tubes for measuring 0.05 to 200 ppm benzene or butadiene (NEO BENZ)

9. ISM wireless connection option

10. Easy service and maintenance

11. Micro-USB charge port

Size 9.06 x 3.15 x 2.36 in (230 x 80 x 60 mm)
Weight 24.69 oz (700 g)
Sensor Photo-ionization sensor with standard 10.6 eV lamp (9.8 eV lamp in MP186 NEO BENZ)
Response Time t90
  • 3 seconds for VOCs
  • 45 seconds with Benzene filtering tubes
Accuracy ±3% (at calibration point)
Battery / Run Time Rechargeable Lithium-Ion battery with 24 hours typical operation
Keypad 4 operation keys
Sampling pump Built-in pump @ 450 cc/min, settable to low flow of 250 cc/min
Sample from up to 150 ft (45 m) horizontally or vertically
Display 128 x 128 graphical LCD, 1.77 x 1.73 in (45 x 44 mm), with LED backlight for enhanced display readability
Direct Readout Real-time reading of gas concentration (ppb, ppm, mg/m3, μg/m3)
PID measurement gas and correction factor, lamp on/off, Man-Down alarm on/ off, battery status, pump status, datalogging on/off, wireless on/off, temperature and time
Alarm Audible (90 dB @ 30 cm), visual (flashing bright red LEDs), and on-screen indication of alarm conditions plus wireless remote alarm notification
High, Low, STEL, TWA alarms
Over range alarm, battery low alarm
Man-Down alarm with pre-alarm and real-time remote wireless notification
EMI/RFI Highly resistant to EMI/RFI
Compliant with EMC Directive 89/336/EEC
IP Rating P-66/67
Datalogging Standard 12 months at one-minute intervals
Storage interval: 1 to 3,600 seconds (adjustable)
Calibration Two/three-point calibration
Charging and Communication Charging, data download, instrument setup and firmware upgrades on PC or laptop via Micro USB
Wireless data and alarm status transmission via built-in RF modem
Wireless Range 1,000 ft (300 m) typical
Correction Factors Integrated Correction Factor list of more than 700 compounds
Safety Certifications UL/cUL: Class I, Div 1, Group A, B, C, D
T4, -20°C ≤ Tamb ≤ +50°C (pending)
Temperature -4° to 113°F (-20°C to 50°C)
Humidity 0% to 95% relative humidity (non-condensing)
Attachments Durable rubber boot, color coded for different models; Tube holder for MP186 NEO BENZ
Warranty 2-year warranty including 10.6eV lamp and sensor; 1-year on 9.8eV lamp



1.Industrial Hygiene

2.Oil & Gas

3.Benzene-Specific Measurements

4.Environmental Testing

5.Fire & Hazmat

6.Paints, Adhesives & Printing



9.Heat Transfer Fluids

10.Industrial Solvents


12.Pulp Mills

13.Indoor Air Quality (IAQ)
