Wireless Bluetooth Pid Photoionization Detector With Accessories Hard Case
Product Details
| Product Name | NEO Photo-Ionization Detectors | Function | Portable Gas Detector |
|---|---|---|---|
| Response Time T90 | 3 Seconds For VOCs ；45 Seconds With Benzene Filtering Tubes | Accuracy | ±3% (at Calibration Point) |
| Keypad | 4 Operation Keys | Display | 128 X 128 Graphical LCD, 1.77 X 1.73 In (45 X 44 Mm) |
| IP Rating | P-66/67 | Size | 9.06 X 3.15 X 2.36 In (230 X 80 X 60 Mm) |
| Weight | 24.69 Oz (700 G) | ||
| Highlight | wireless pid photoionization detector,bluetooth pid photoionization detector,photo ionization detector with accessories |
||
Product Description

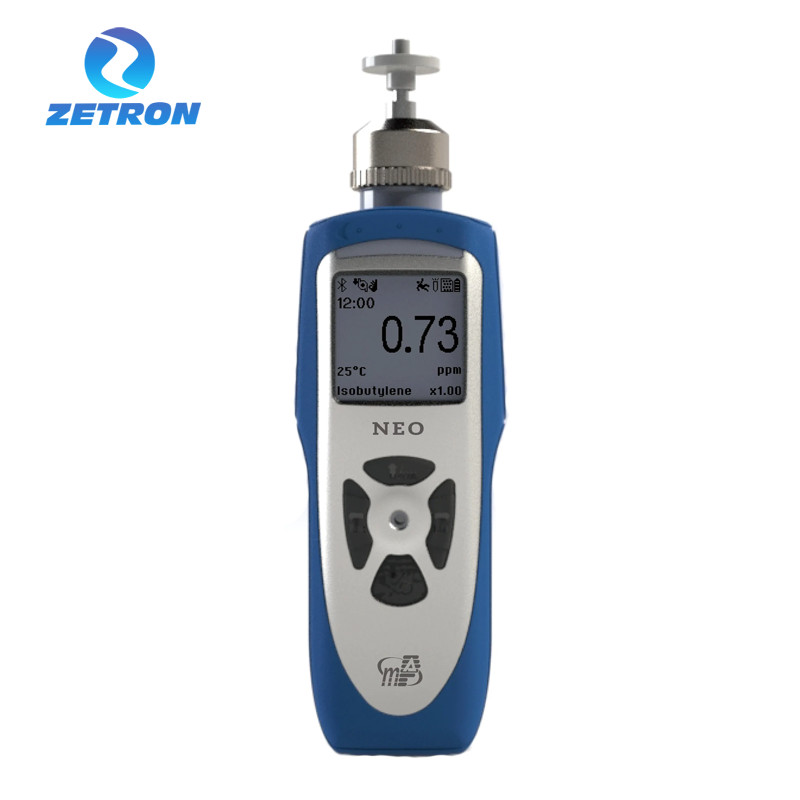

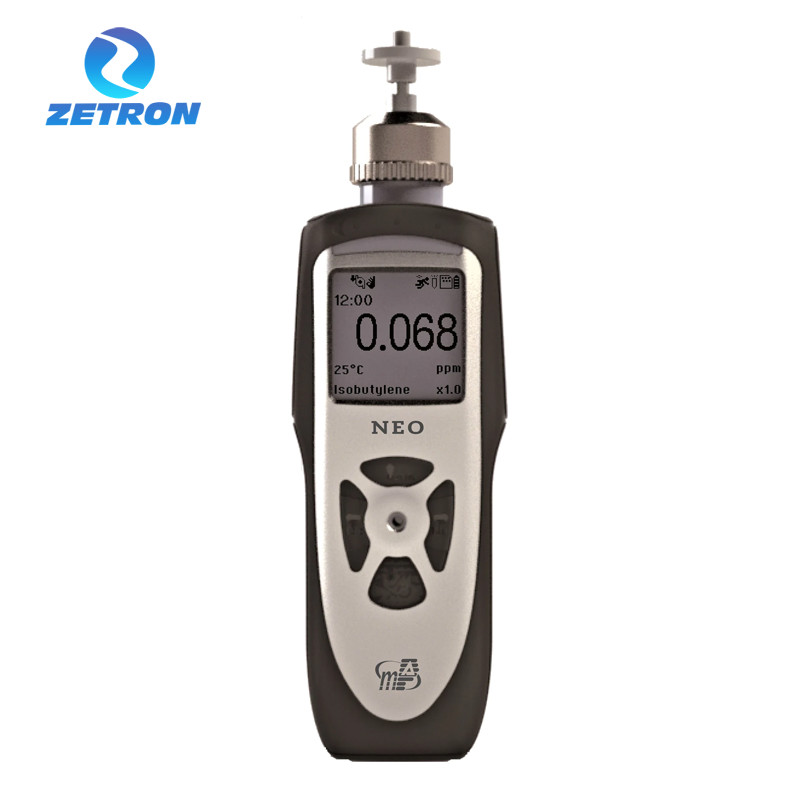

NEO Photo-Ionization Detectors
OVERVIEW
The NEO is one of the most advanced handheld VOC (Volatile Organic Compound) monitors available for ppb(parts per billion) detection. VOCs include a variety of chemicals such as benzene, alcohols, fuels, paint thinners,industrial solvents and many others, which can have short and long-term adverse health effects. Measuring these compounds is essential for worker protection in industries like oil & gas, fire & hazmat, pharmaceuticals, paints & adhesives, and many others. In addition, VOC monitoring is useful chemical process control, detecting leaks and other releases to the environment, and in measuring indoor air quality. The NEO offers several models from the most sensitive 1 ppb to a high range up to 15,000 ppm for different applications, and a filter tube version (NEO BENZ) for benzene-specific or butadiene-specific measurements. In addition to the standard continuous read-out, a Leak Detection and Repair (LDAR) mode is included. Novel designs of the Photo-ionization Detector (PID) and Ultraviolet (UV) lamp provide outstanding sensitivity, stability and reproducibility. Includes real-time data monitoring using mPower Suite software via cable to a PC or via Bluetooth to an Android phone or tablet.
FEATURES
• Smaller and lighter weight than comparable PIDs
• Most stable ppb-level PID on the market
• Outstanding linearity over full measurement range
• Easy charging on laptop or other USB port
• USB Micro Charger; combination USB-m charging and communications cable
• Powerful battery (run time 24 hours)
• Bluetooth Low Energy (BLE) connectivity standard
• Search Mode for LDAR Sampling
• Filter tube version for benzene- or butadiene-selective measurements
• Large backlight graphic display
• Lamp glow indicator
• Rugged, stainless-steel housing with rubber outer boot
PRODUCT PARAMETER
| Size | 9.06 x 3.15 x 2.36 in (230 x 80 x 60 mm) |
| Weight | 24.69 oz (700 g) |
| Sensor | Photo-ionization sensor with standard 10.6 eV lamp (9.8 eV lamp in MP186 NEO BENZ) |
| Response Time t90 |
|
| Accuracy | ±3% (at calibration point) |
| Battery / Run Time | Rechargeable Lithium-Ion battery with 24 hours typical operation |
| Keypad | 4 operation keys |
| Sampling pump | Built-in pump @ 450 cc/min, settable to low flow of 250 cc/min Sample from up to 150 ft (45 m) horizontally or vertically |
| Display | 128 x 128 graphical LCD, 1.77 x 1.73 in (45 x 44 mm), with LED backlight for enhanced display readability |
| Direct Readout | Real-time reading of gas concentration (ppb, ppm, mg/m3, μg/m3) PID measurement gas and correction factor, lamp on/off, Man-Down alarm on/ off, battery status, pump status, datalogging on/off, wireless on/off, temperature and time |
| Alarm | Audible (90 dB @ 30 cm), visual (flashing bright red LEDs), and on-screen indication of alarm conditions plus wireless remote alarm notification High, Low, STEL, TWA alarms Over range alarm, battery low alarm Man-Down alarm with pre-alarm and real-time remote wireless notification |
| EMI/RFI | Highly resistant to EMI/RFI Compliant with EMC Directive 89/336/EEC |
| IP Rating | P-66/67 |
| Datalogging | Standard 12 months at one-minute intervals Storage interval: 1 to 3,600 seconds (adjustable) |
| Calibration | Two/three-point calibration |
| Charging and Communication | Charging, data download, instrument setup and firmware upgrades on PC or laptop via Micro USB Wireless data and alarm status transmission via built-in RF modem |
| Wireless Range | 1,000 ft (300 m) typical |
| Correction Factors | Integrated Correction Factor list of more than 700 compounds |
| Safety Certifications | UL/cUL: Class I, Div 1, Group A, B, C, D T4, -20°C ≤ Tamb ≤ +50°C (pending) |
| Temperature | -4° to 113°F (-20°C to 50°C) |
| Humidity | 0% to 95% relative humidity (non-condensing) |
| Attachments | Durable rubber boot, color coded for different models; Tube holder for MP186 NEO BENZ |
| Warranty | 2-year warranty including 10.6eV lamp and sensor; 1-year on 9.8eV lamp |
| Model Numbers | VOC Range (ppm) | Resolution (ppb) |
|---|---|---|
| MP181 (NEO PPM) | 5000 | 10 |
| MP182 (NEO EXT) | 15000 | 10 |
| MP184 (NEO PPB) | 15000 | 1 |
| MP185 (NEO SEMI) (w/o MicroUSB) | 15000 | 1 |
| MP186 (NEO BENZ) (w/9.8 eV Lamp & Tube Holder) |
200 Benzene or Butadiene | 50 |
| 10,000 VOC | 5 |
APPLICATION SCENES
1.Industrial Hygiene
2.Oil & Gas
3.Benzene-Specific Measurements
4.Environmental Testing
5.Fire & Hazmat
6.Paints, Adhesives & Printing
7.Degreasers
8.Fumigants
9.Heat Transfer Fluids
10.Industrial Solvents
11.Ammonia
12.Pulp Mills
13.Indoor Air Quality (IAQ)
