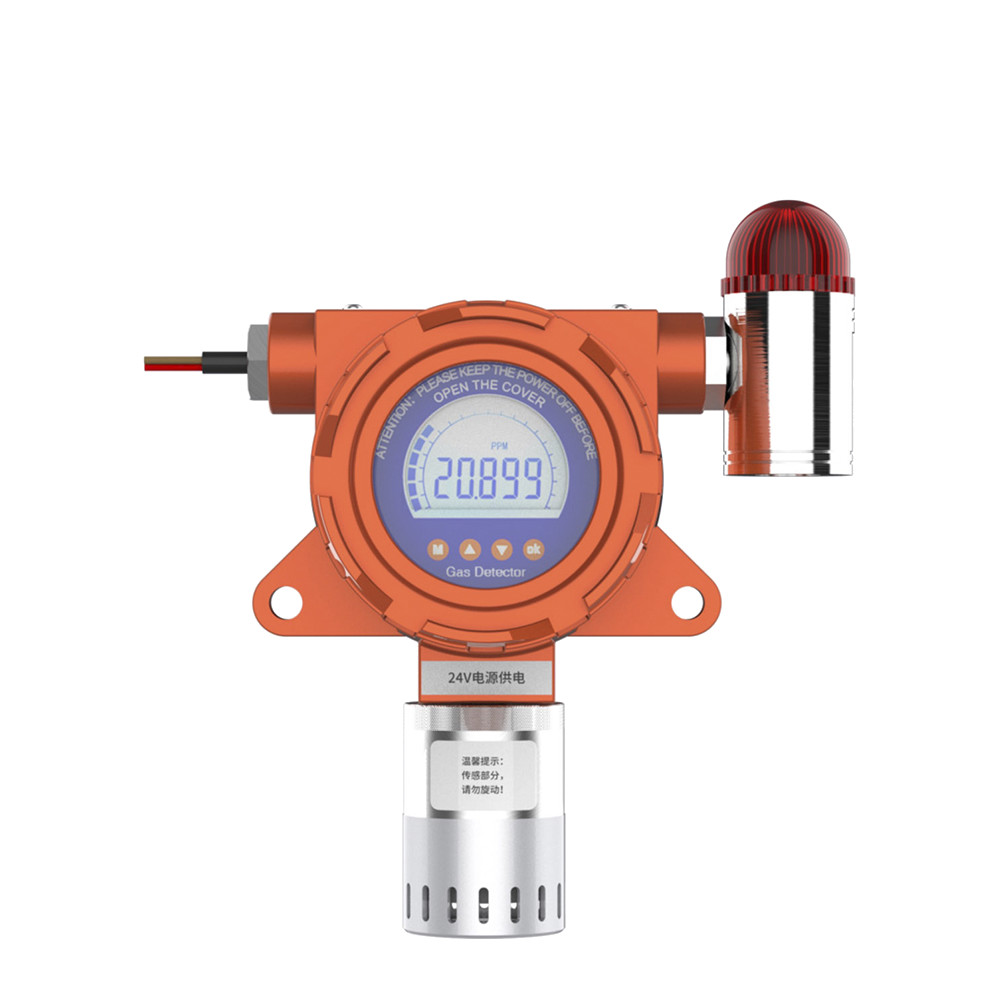

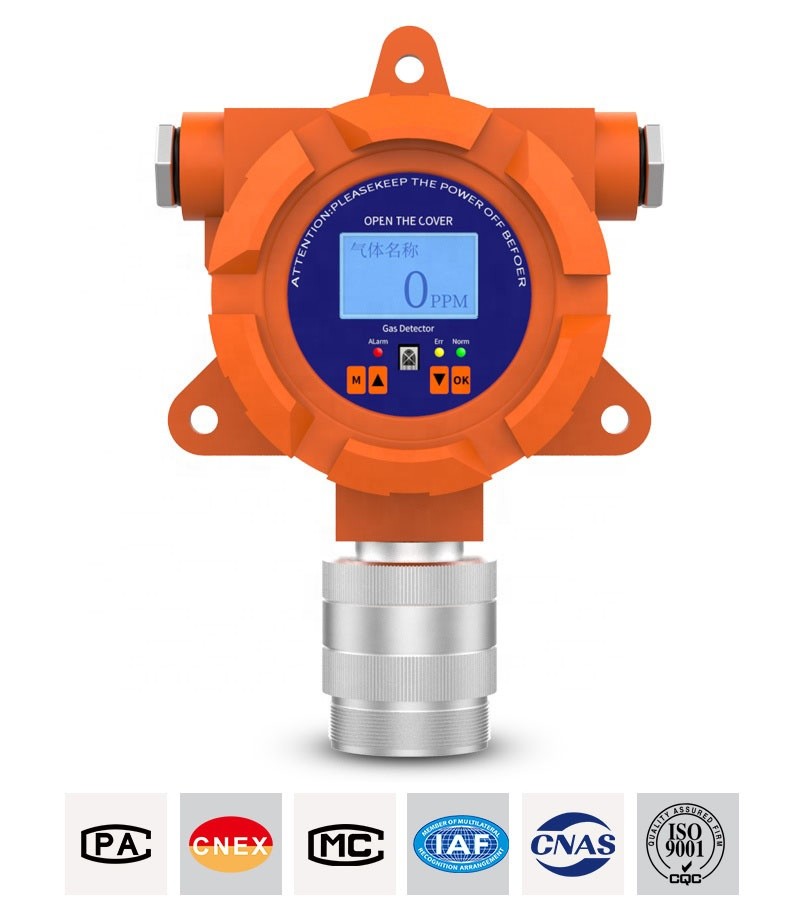

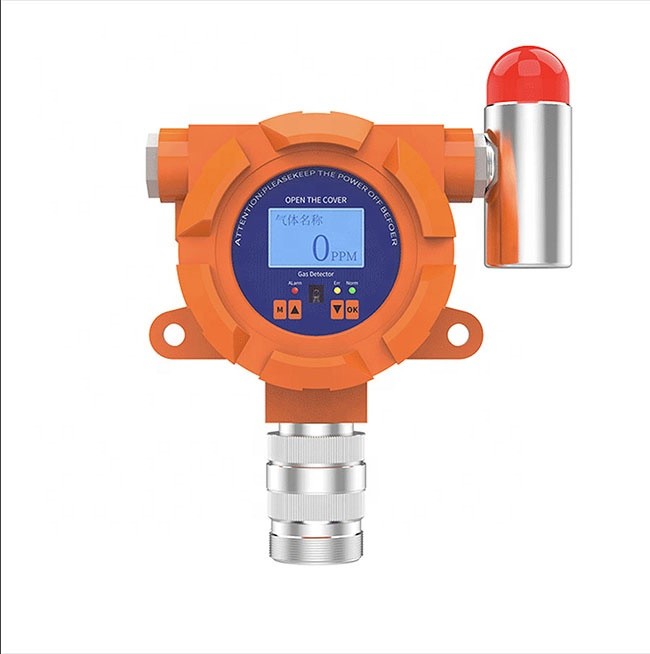

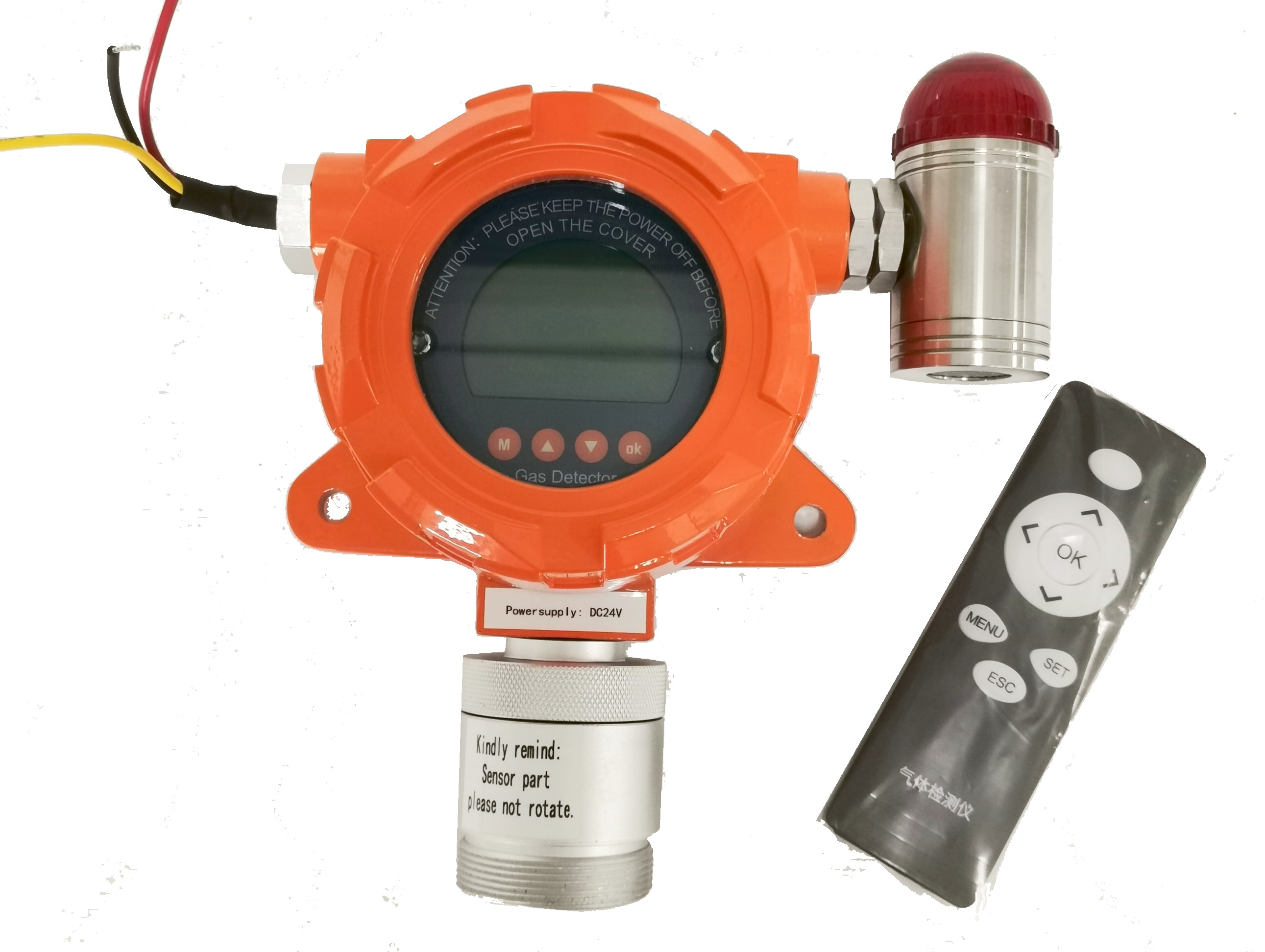

Zetron MIC100 Gas Ecological Monitoring System Supporting Custom Made

Place of Origin China
Brand Name Zetron
Certification CE
Model Number MIC100
Minimum Order Quantity 1
Price 6,500USD
Packaging Details outer packaging box
Delivery Time 14 work days
Payment Terms L/C, D/A, D/P, T/T
Supply Ability 200 pieces per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Alarm Level High/Low Alarm Type Audible, Visual And Vibration
Battery Life Up To 24 Hours Calibration Automatic
Display LCD Display Product Name Multi Gas Detector
Response Time Less Than 10s Sensor Types CO, O2, H2S, SO2, NO2
Size Compact And Portable Warranty One Year
Weight Less Than 1kg
High Light

Lcd Display Gas Ecological Monitoring System

,

Custom Made Gas Ecological Monitoring System

Leave a Message
Product Description

Zetron MIC100 best selling Online Gas Monitoring System

Industrial Carbon Monoxide Fixed CO Gas Monitor

OVERVIEW

MIC100 Series gas detector can be used in 24 hours continuous online monitoring of concentrations of single gas in the filed.The types for detection are more than 500 types. With an output, can be simply integrated into a Distributed Control System (DCS) to provide warnings and enable control of high levels in the working environment.



FEATURES

With an output, can be simply integrated into a Distributed Control System (DCS) to provide warnings and enable control of high levels in the working environment.



Simple to install service and calibrate, MIC100 Series require no hot work permit and the PID sensor is accessible and changeable in a matter of seconds.



Strong, durable and explosion-proof shell and fluorocarbon surface treatment process are suitable for the use at a variety of hazardous places and corrosive environments, it is wear-resistant.





All the cases which requires the fixed installation, and online detection of gas concentrations such as petroleum, chemical, pharmaceutical, environmental protection, combustion gas distribution, warehousing, smoke gas analysis, air governance, and so on.

APPLICATION



1. Places inaccessible to personnel such as overhead pipelines and narrow spaces;

2. Indoor places with windows, such as residential kitchens and laboratories that use gas, can be detected directly through the windows;

3. Finding leaks of buried pipelines.



Zetron MIC100 Gas Ecological  Monitoring System Supporting Custom Made 0Zetron MIC100 Gas Ecological  Monitoring System Supporting Custom Made 1

Gas Carbon Monoxide Sensor Electrochemical
Range 0-500,1000,2000ppm

Can be customized
Resolution 0.1 ppm;Can be customized
Smapling Method diffusion/pump Control Method Controller/Infrared remote control
Allowable error ≤±3%FS;Can be customized Work Method 24-hour continuously monitoring
Response time T90≤20 seconds;Can be customized Recovery time ≤10 seconds;Can be customized
Working Temp -20 ℃~+70 ℃;(Standard Values)
-40 ℃~+80 ℃;(Limit Value)
Humidity 10~95%RH
Voltage ≤2.5 W(DC24V) Power 12~30VDC
Protection level IP65 Explosion-proof Exd Ⅱ CT6
Alarm Audible;Light(option Display LCD/without LCD Display
Cable PVVP3*1.0mm 2 Transmission Distance ≤1000m
