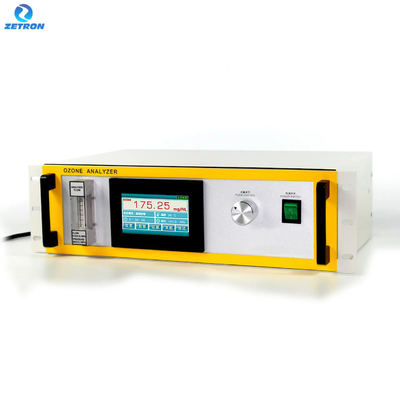

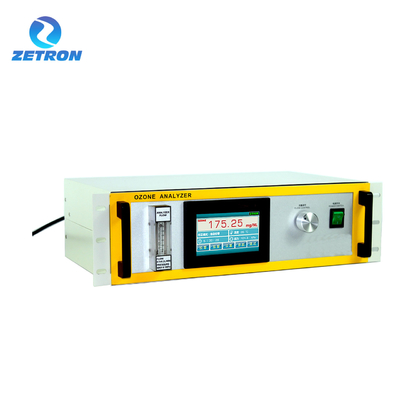

Zetron UVOZ-3000 Ozone Analyzer Automatic Zero Point Calibration O3 Concentration Analyzer Imported Sensor

  • Zetron UVOZ-3000 Ozone Analyzer Automatic Zero Point Calibration O3 Concentration Analyzer Imported Sensor
  • Zetron UVOZ-3000 Ozone Analyzer Automatic Zero Point Calibration O3 Concentration Analyzer Imported Sensor
Place of Origin China
Brand Name Zetron
Certification CE, ISO13485, ISO9001
Model Number UVOZ-3000
Minimum Order Quantity 1
Packaging Details paper carton
Delivery Time 3-7 days
Payment Terms T/T,
Supply Ability 1000 set/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Ozone Analyzer Model UVOZ-3000
Measure The Range 0-300g/Nm3 Optional Range 0-400g/Nm3；0-200g/Nm3；0-100g/Nm3；0-50g/Nm3；0-10000ppm；
Light Source Life About 30,000-50,000 Hours Display Unit Option Of G / Nm 3, Mg / NL,% WT;
Reaction Time Signal 0.03 Seconds, Display 0.3 Seconds; Communication Mode RS-485
Instrument Size 133mm (height) 482mm (width) 300mm (deep), 19-inch 3U Chassis; (Note 1 Mg/L = 1 G/m3 = 467 PPM)
High Light

O3 Zetron UVOZ-3000 Ozone Analyzer

,

Zetron Ozone Analyzer

,

Automatic Zero Point Ozone Analyzer
Leave a Message
Product Description

UVOZ-3000 Ozone Detector

OVERVIEW



UVOZ-3300C Ozone Concentration Analyzer is designed and manufactured in accordance with Lambert-Beer law, GB/T37397-2019 Ozone Calibration Analyzer, HJ 590-2010 Determination of Ozone in Ambient Air - Ultraviolet Photometry, GB/T37894-2019 Technical Requirements for Ozone Generators for Water Treatment, and the testing and calibration methods. The current ozone concentration value is calculated by measuring the change of light signal intensity before and after ozone absorption of UV light.



FEATURES



Intelligent Compensation: Built-in temperature and pressure compensation with display and automatic compensation of light source.


Operation mode: users can choose manual calibration and automatic calibration according to the operation status, and the time of automatic calibration can be set.


Display unit: g/Nm3, mg/NL, WT% can be customized optional.


Data display: color touch screen, high concentration range setting into the gas mass flow, real-time display output (optional).


Output function: 4-20mA, RS485 communication, two groups of alarm point output, electronic flow meter input.


Standard configuration: anticorrosive flow meter, ozone tail gas destroyer, ozone inlet filter.





PARAMETER





model UVOZ-3300C
Measure the range 0-300g/Nm3
Optional range 0-400g/Nm3；0-200g/Nm3；0-100g/Nm3；0-50g/Nm3；0-10000ppm；
Light source life About 30,000-50,000 hours;
Sampling method Positive pressure sampling, negative pressure sampling (optional);
Display interface 4.3-inch touch screen operation interface;
Content interface Ozone concentration, temperature, pressure; (yield calculation and data recording can be customized)
additional function Temperature compensation, pressure compensation;
Display unit Option of g / Nm 3, mg / NL,% WT;
display resolution 0.01g/Nm3；
gas-flow rate 0.5L±0.2L/min；
input pressure <0.1MPa；
Concentration error ≤0.5％FS；
linear error ≤0.5％FS；
precision ≤±3%
zero drift <±0.3%.FS；
reaction time Signal 0.03 seconds, display 0.3 seconds;
ambient temperature -20～50℃
Pipe interface mode Quick twist (stainless steel);
Tandem sample caliber Φ 8 (8mm * 6mm) (optional);
Bypass sampling caliber Φ6(6mm*4mm)；
communication mode RS-485；
Output method 4-20 mA (active);
Following the electrical signal High alarm point following the electrical signal, low alarm point following the electrical signal;
source AC 110-220V；
size

133mm (height) 482mm (width) 300mm (deep), 19-inch 3U chassis;

(Note 1 mg/L = 1 g/m3 = 467 PPM);
Free warranty 24 months (host sensor);





APPLICATION



Ozone generator users include manufacturers, the municipal water sector, the industrial wastewater sector, the fine chemical sector, the food and drinking water sector, the space disinfection sector, the swimming pool disinfection sector, the flavor synthesis sector, and other industries.
