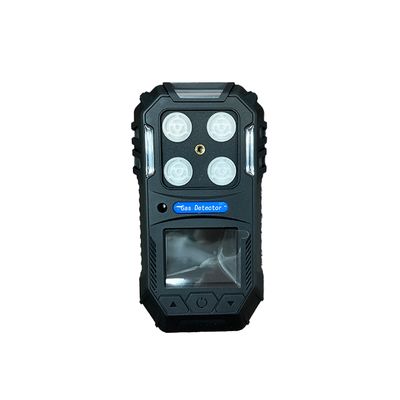

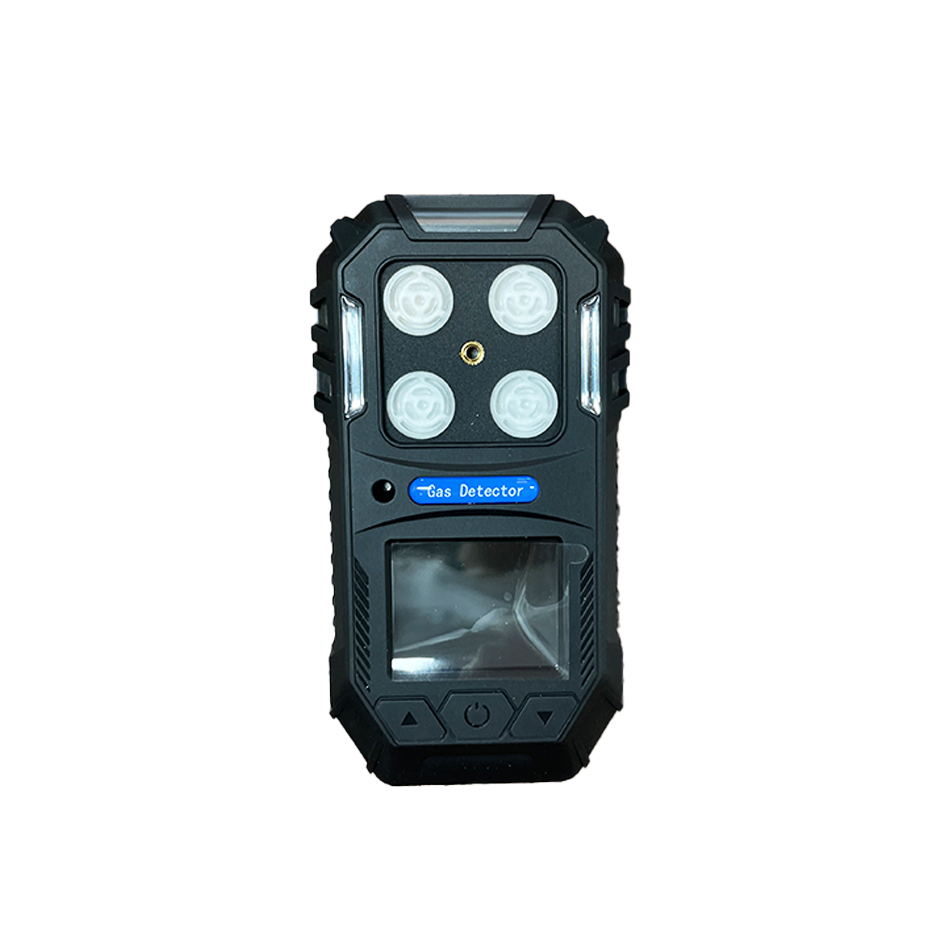

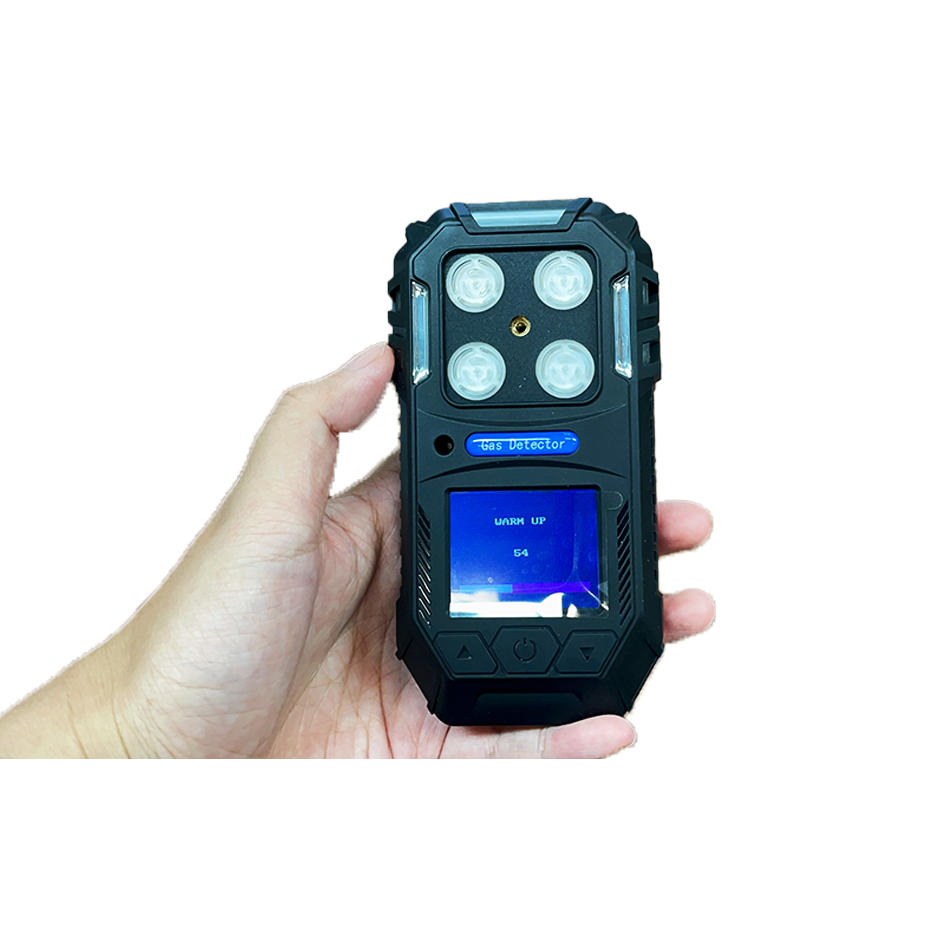

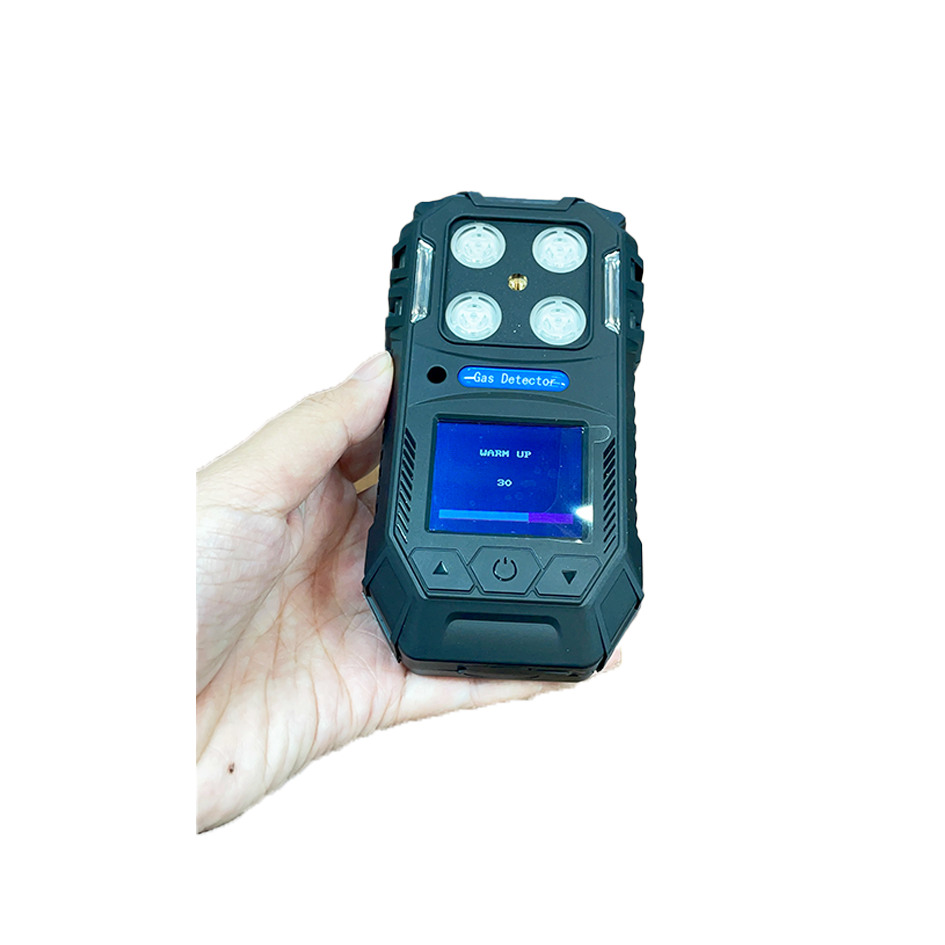

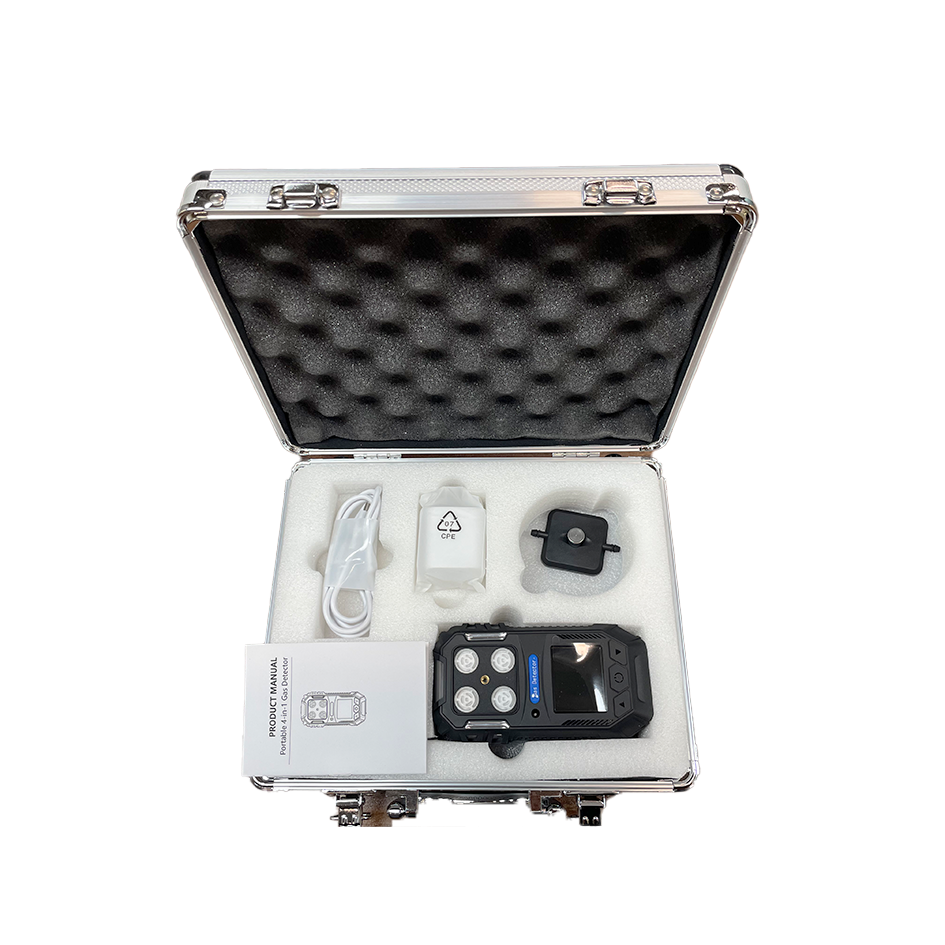

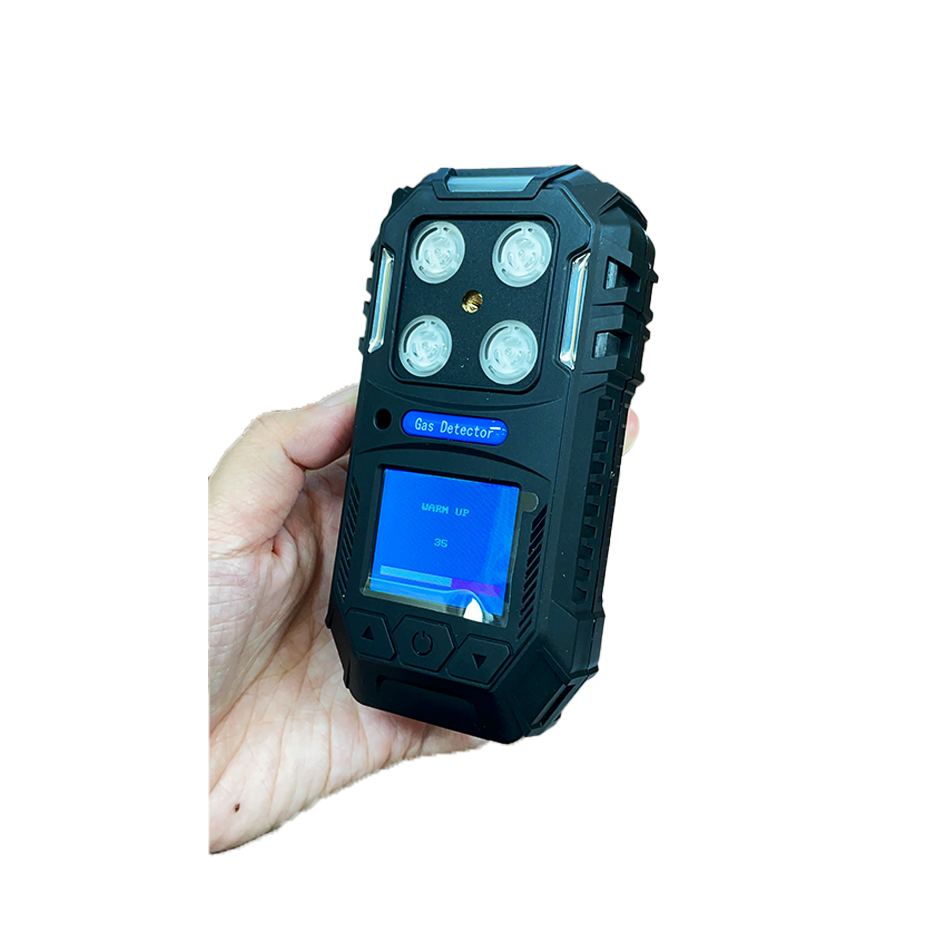

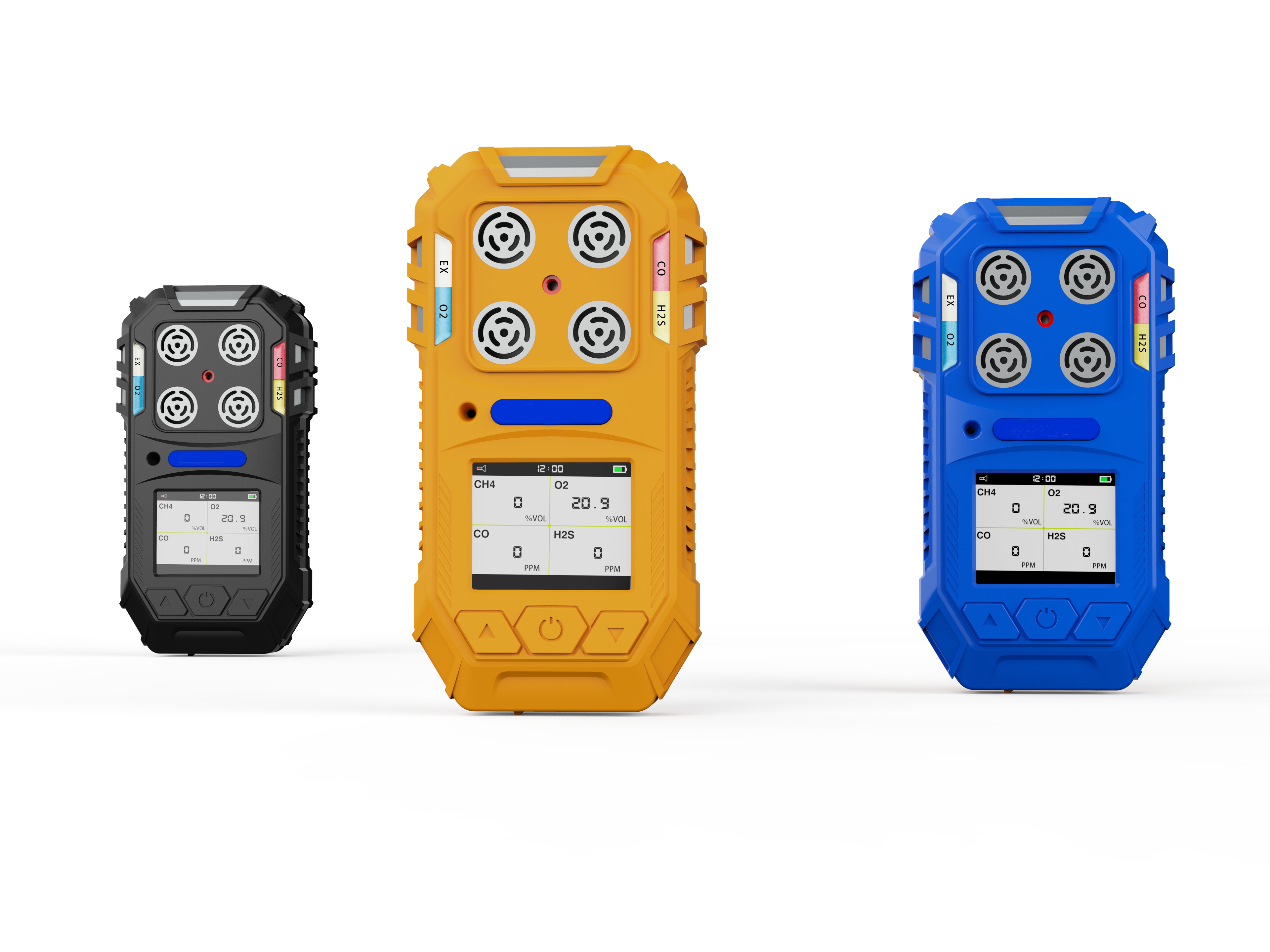

MS104K Handheld Multi Gas Detector For Industrial Safety Hazardous Gas Detection
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Display Mode | TFT Color LCD Display | Weight | About 189g |
|---|---|---|---|
| Explosion-Proof Mark | Ex Ia Iic T4 Ga | Protection Level | IP65 |
| Highlight | Hazardous Gas Detection,Industrial Safety Gas Detector,Handheld Multi Gas Detector |
||
Product Description

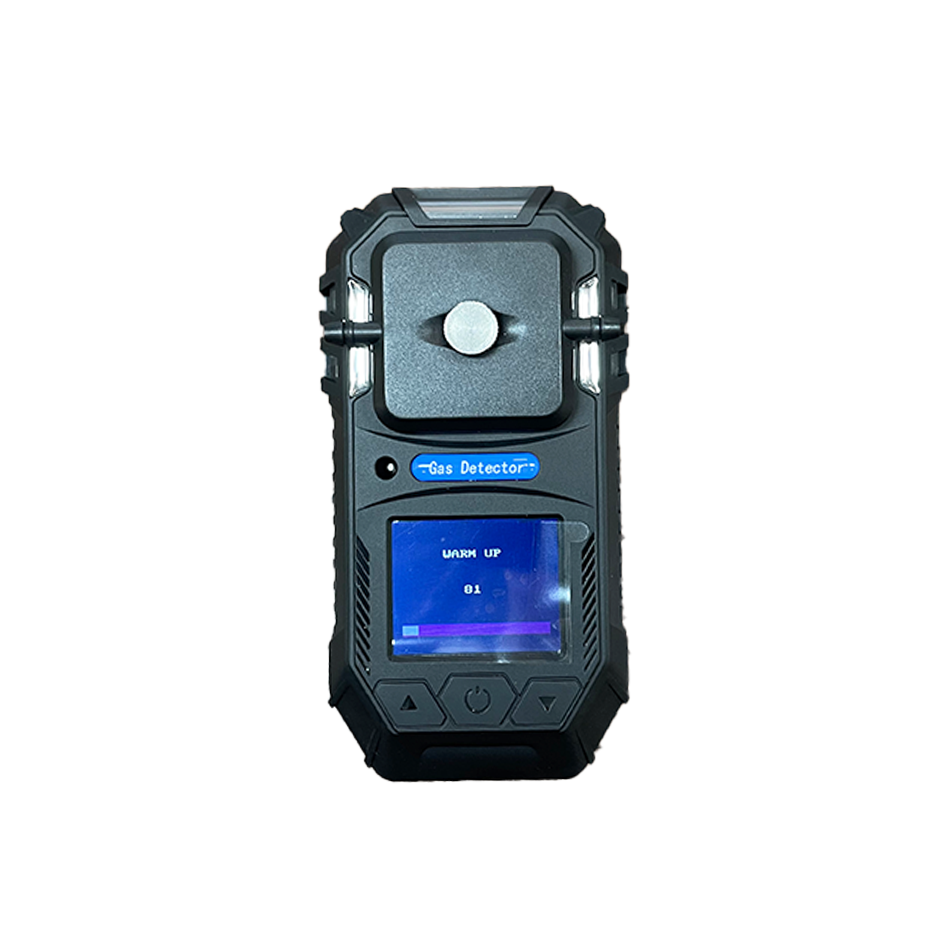

MS104K Handheld Multi Gas Detector for Industrial Safety and Hazardous Gas Detection
OVERVIEW
MS104K portable four-in-one gas detector. TFT color LCD display, three-button operation, buzzer, vibration motor, alarm light form sound, light, vibration triple alarm mode. The display content is rich, clear and beautiful, the operation is convenient and fast, and it uses high-precision sensors with high sensitivity and short response time. It can detect up to four gases at the same time, supports Chinese and English bilingual switching, graphic and text interface operation styles, and stainless steel back buckle for easy carrying.
FEATURES & BENEFITS
Bionic design, owl shape, beautiful and good feel;
MS104K four-in-one gas detector can detect combustible gas, oxygen and toxic gas at the same time; each unit can be installed with a combustible gas sensor, an oxygen sensor, and two toxic gas sensors (CO, H2S, SO2, NH3, NO2, PH3, CL2, etc.); users can select sensors according to the gas to be measured to form a two-in-one, three-in-one, or four-in-one gas detector;
TFT color LCD display, clear screen;
Triple alarm function of sound, light, and vibration;
1000 alarm records and inquiries;
Support Chinese and English dual language interface;

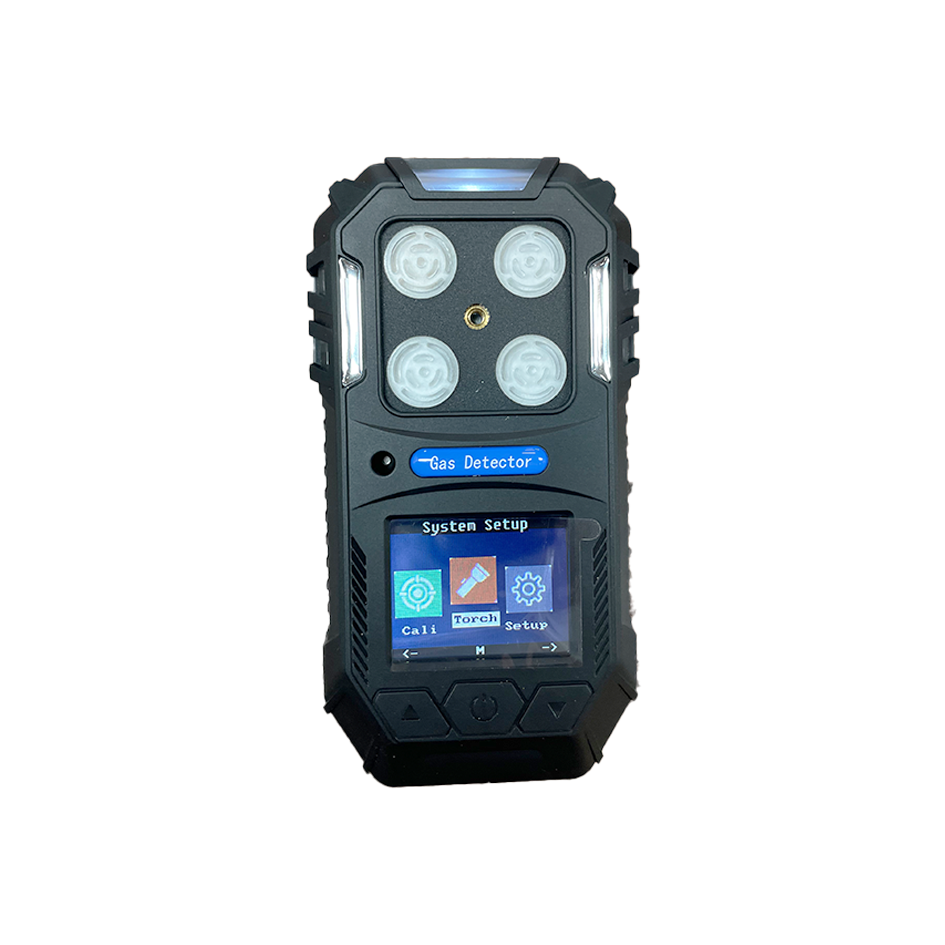

Support icon text dual menu interface;
Restore factory settings to prevent misoperation;
Trend chart function display, view the recent data change trend;
Working indicator light, when the TFT backlight is off, it flashes regularly to indicate that the instrument is working normally;
TYPC charging port, you can charge anywhere;
SPECIFICATION
| Product Name: | Portable four-in-one gas detector; |
| Detection principle: | Electrochemical, catalytic combustion (NDIR infrared sensor version optional); |
| Display mode: | TFT color LCD display; |
| Backlight: | LED backlight; |
| Display units: | %VOL, %LEL, ppm, mg/m3; |
| Alarm method: | Sound and light alarm (sound ≥75dB@25cm), vibration alarm; |
| Accuracy: | ±3%FS; |
| Main Material: | PC+TPU (antistatic) |
| Working method: | Diffusion type; |
| How to operate: | Three-button operation; |
| Operating Temperature: | -20℃ ～ +50℃; |
| Operating humidity: | 10%RH ~ 95%RH (no condensation) ; |
| Operating Voltage: | Built-in high-performance lithium battery, nominal voltage: 3.7VDC; |
| Charger: | Travel charger with USB TYPC interface, USB power supply DC5V ; |
| Charging time: | ≤8 hours; |
| Working hours: | >16 hours (at room temperature, no alarm); NDIR version >20 hours |
| Power consumption: | ≤0.7W; |
| Work Pressure: | 86kPa ～ 106kPa; |
| Weight: | About 189g; |
| Explosion-proof mark: | Ex ia IIC T4 Ga; |
| Protection level: | IP65; |
APPLICATION
Petroleum, chemical, pharmaceutical, environmental protection, gas distribution, flue gas analysis,air treatment and all other occasions that need to detect and analyze gas concentration.
