Zetron MS104K Owl-Inspired Portable Four In One Gas Detector With Color Display Explosion-Proof IP65 For Industrial Gas Detection
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | 4 In 1 Gas Detector | Type | Electrochemical/catalytic Combustion/IR Sensor Gas Detector |
|---|---|---|---|
| Function | Flammable Gases, Oxygen, And Toxic Gas Detection | Gas Unit | %VOL, %LEL, Ppm, Mg/m3 |
| Sampling Method | Diffusion Type | Alarm Type | Light+Sound+Vibration |
| Display | TFT Color LCD Display | Gas | O2, CO, H2S, SO2, NH3, NO2, PH3, CL2, Ex (optional) |
| Highlight | Owl Inspired Gas Detector,IP65 Gas Detector,Color Display Gas Detector |
||
Product Description

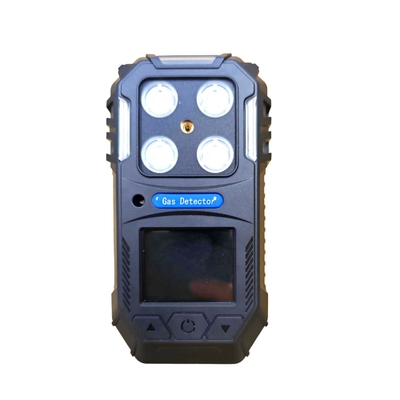

MS104K Portable 4-1 Gas Detector
OVERVIEW
The Zetron MS104K is a portable 4-in-1 gas detector, featuring an owl-inspired design and a vibrant TFT color display. Engineered for industrial safety, it simultaneously detects combustible gases, oxygen, and various toxic gases with high precision. Its robust, explosion-proof (Ex ia IIC T4 Ga) and IP65-rated construction ensures durability in harsh environments. The device offers triple alarm modes (audible, visual, vibration) for immediate alerts. With a long-lasting battery and user-friendly Type-C charging, the MS104K provides reliable, continuous monitoring, making it an essential tool for comprehensive industrial gas detection.
FEATURES
1. Multi-Gas Detection, Flexible Configuration, Portable and Compact
The MS104K Portable Four-in-One Gas Detector can simultaneously detect 1-4 gases and supports customized sensors, allowing for two-in-one, three-in-one, or four-in-one detection. Its compact size, coupled with a stainless steel belt clip, makes it easy to carry.
2. Bionic Design, Easy Operation, Robust and Durable
The MS104K adopts an owl-inspired bionic design, combining aesthetics with a comfortable grip. It features a three-button operation that allows easy one-handed control. The TFT color LCD screen offers clear and intuitive information display. Made from PC+TPU anti-static materials and with an IP65 protection rating, it is sturdy and can withstand harsh environments.
3. Alarm Records and Trend Display, Convenient Data Management
The MS104K has the ability to store up to 1,000 alarm records and supports trend graph displays, making it easy for users to view recent data changes. The device supports both English and Chinese language options, and features an intuitive dual-menu interface with icons and text for user-friendly operation.
4. Clear Signal Alarm Design
The MS104K’s alarm system is based on a clear alert mode: it includes audible, visual, and vibration alarms. The sound is loud (≥75dB @ 25cm), ensuring that users are promptly alerted in various environments.
SPECIFICATION
| Gas |
CO, H2S, SO2, EX
|
||||
| Range | 0 ~ 1, 10, 100, 1000, 5000, 50000, 100000ppm and other ranges can be customized. | ||||
| Resolution | 0.01ppm or 0.001ppm (0 ~ 10 ppm); 0.01ppm (0 ~ 100 ppm), 0.1ppm (0 ~ 1000 ppm), 1ppm (0 ~ 10000 ppm or more) |
||||
| Detection principle | Electrochemical, catalytic combustion, infrared, thermal conductivity, and so on, depending on the type of gas, range, field environment and user demand. | ||||
| Sensor service life | Electrochemical principle: 2 ~ 3 years; Oxygen gas: 2 years or 6 years can be selected; infrared principle: 5 ~ 10 years; catalytic combustion: 3 years. | ||||
| Allowable error | ≤±3% F.S (higher precision levels can be customized) | ||||
| Linearity | ≤±2% | Repeatability | ≤±2% | Uncertainty | ≤±2% |
| Response time | T90≤30 seconds | Recovery time | ≤30 seconds | ||
| Working environment | Temperature: -20 ℃ ~ + 50 ℃, humidity: 10 ~ 95% RH | ||||
| Power supply |
Built-in high-performance lithium battery, nominal voltage: 3.7VDC;
|
||||
| Display mode | TFT color LCD display; | ||||
| Alarm mode | It is possible to set as sound & light alarm, vibration alarm. | ||||
| Charger | Travel charger with USB TYPC interface, USB power supply DC5V ; | ||||
| Protection level | IP65 | ||||
| Explosion-proof mark | Exia II CT4 Ga | ||||
| Exterior dimensions | 126×66×47mm (L×W×H) | ||||
| Weight | 189g | ||||
APPLICATION
All the cases which requires the portable rapid detection of gas concentrations such as petroleum, chemical, pharmaceutical, environmental protection, combustion gas distribution, warehousing, smoke gas analysis, air governance, and so on.
