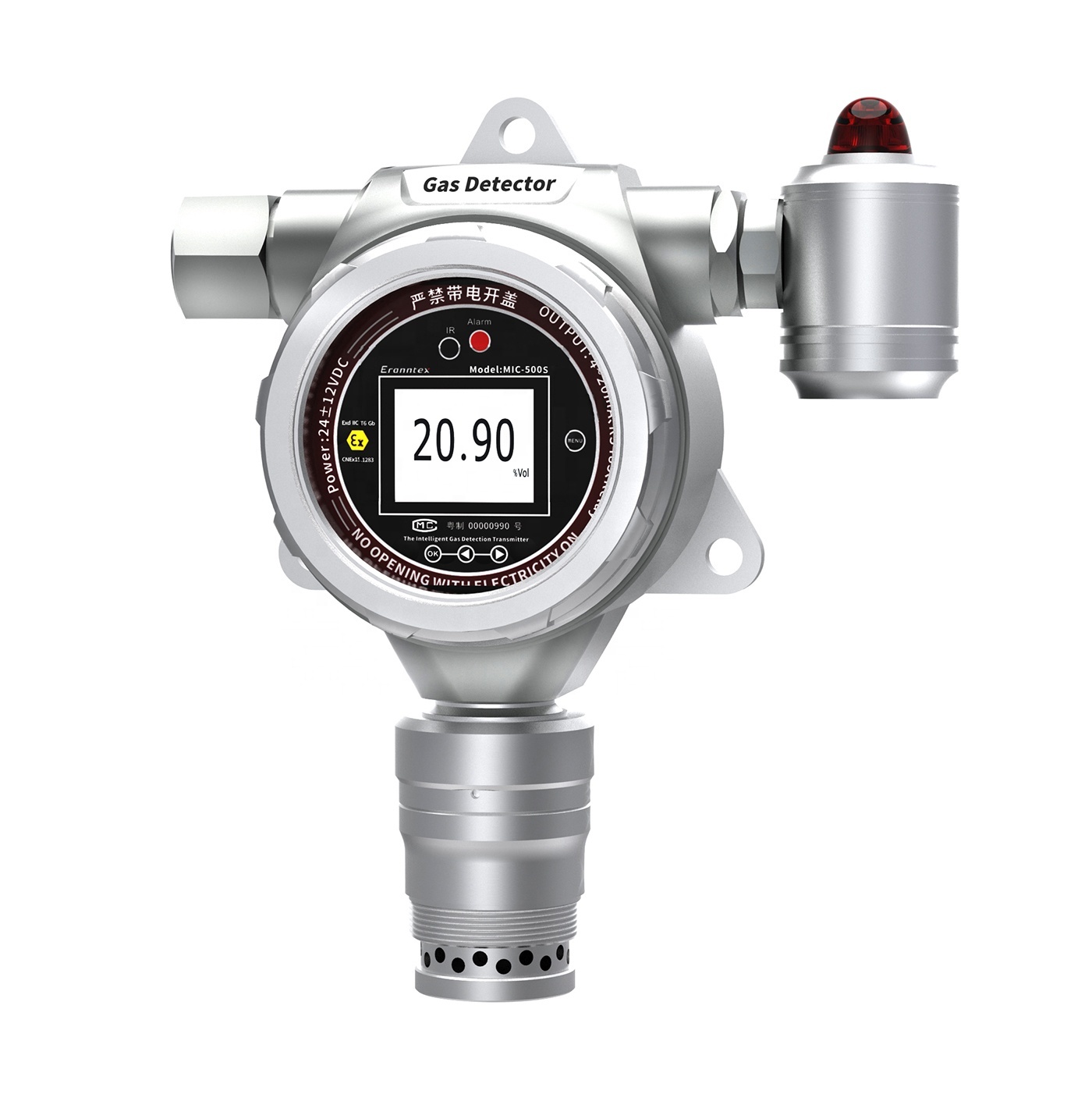

MIC500S LPG Gas Leakage Detector Methane Hydrogcarbon Industrial Gas Leak Detector

  • MIC500S LPG Gas Leakage Detector Methane Hydrogcarbon Industrial Gas Leak Detector
  • MIC500S LPG Gas Leakage Detector Methane Hydrogcarbon Industrial Gas Leak Detector
Place of Origin China
Brand Name Zetron
Certification CE ATEX SIL
Model Number MIC500S
Minimum Order Quantity 1 set
Price USD 890/set - 7298/set
Packaging Details 260x170x100 mm
Delivery Time 3-5 work days
Payment Terms T/T,Western Union,MoneyGram,D/P,D/A
Supply Ability 3000 SET / month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name MIC500S Function Measure Gas Leakage And Concentration
Detecting Gas Combustible Gas/H2S/CO/O2/H2S/H2/VOC Output Signal 4-20mA, RS485, Hart, Relay
Customized Support OEM, ODM, OBM Weight 2.5kg
Class Of Protection IP65/IP66/IP67 Humidity 0-95%RH (no Dew)
Detection Mode Diffused/Pipeline/Pump Suction Power Supply 12-30V
Alarm Type Sound+Light Alarm Display LCD Display
Usage Industrial Production,Personal,Gas Probe Controller-bus Type,industrial Combustible Gas Toxic Gas Leak Alarm,Commercial Sampling Method Diffusion,Internal Pump,fixed
Size 230*152*90mm
Highlight

LPG gas leak detector

,

industrial methane gas detector

,

fixed hydrocarbon gas detector
Leave a Message
Product Description

MIC500S LPG Gas Leakage Detector Methane Hydrogcarbon Industrial Gas Leak Detector

OVERVIEW


MIC500S single gas detector

Explosion-proof, lightning-proof, anti-static, reverse polarity-proof, resistant to EMI, EMC, and pulse surge current.


Complies with latest national standards and holds the CMC Measuring Instrument Production License and explosion-proof certification.


Three-wire or two- or four-wire 4-20mA standard signal output, voltage output, and two relay switches.


Also features a standard RS485 bus output (RTU format) and an optional integrated audible and visual alarm.


Optional wired transmission, LAN, Internet, or wireless transmission (2 km, 5 km, or unlimited distance).


Wireless transmission options include 433, GPRS, Wi-Fi, and other methods.


The standard infrared remote control allows for operation without opening the cover in hazardous locations, with a range of 15 meters. It's simple and practical.


Interchangeable units, automatic zero tracking to prevent drift, and multi-level calibration are available. OEM and ODM customization is supported.


Compatible with a computer for real-time monitoring of concentrations at the on-site probes via a host computer, and data can be stored, analyzed, and printed.


MIC500S LPG Gas Leakage Detector Methane Hydrogcarbon Industrial Gas Leak Detector 0
MIC500S LPG Gas Leakage Detector Methane Hydrogcarbon Industrial Gas Leak Detector 1

MIC500S LPG Gas Leakage Detector Methane Hydrogcarbon Industrial Gas Leak Detector 2
MIC500S LPG Gas Leakage Detector Methane Hydrogcarbon Industrial Gas Leak Detector 3
MIC500S LPG Gas Leakage Detector Methane Hydrogcarbon Industrial Gas Leak Detector 4
MIC500S LPG Gas Leakage Detector Methane Hydrogcarbon Industrial Gas Leak Detector 5
MIC500S LPG Gas Leakage Detector Methane Hydrogcarbon Industrial Gas Leak Detector 6

MIC500S LPG Gas Leakage Detector Methane Hydrogcarbon Industrial Gas Leak Detector 7


SPECIFICATION



Detection Gas EX,Toxic gases, oxygen, carbon dioxide, flammable and explosive gases, TVOC, etc.
Range 0~1, 10, 100, 1000, 5000, 50000 ppm (mg/m³); 0~100% LEL; 0~200 mg/L; 0~20%, 50%, 100% VOL; Other ranges customizable.
Size 210×170×85mm (L×H×W) Weight 1.8 Kg
Installation method Pipeline Type
Wall Mounting Type
 Display 1.7-inch high-definition color screen
Environment Temperature: -40 ℃ ~ + 70 ℃
Humidity: ≤10 ~ 95% RH (regular)
 Approvals IP65; Exd Ⅱ CT6

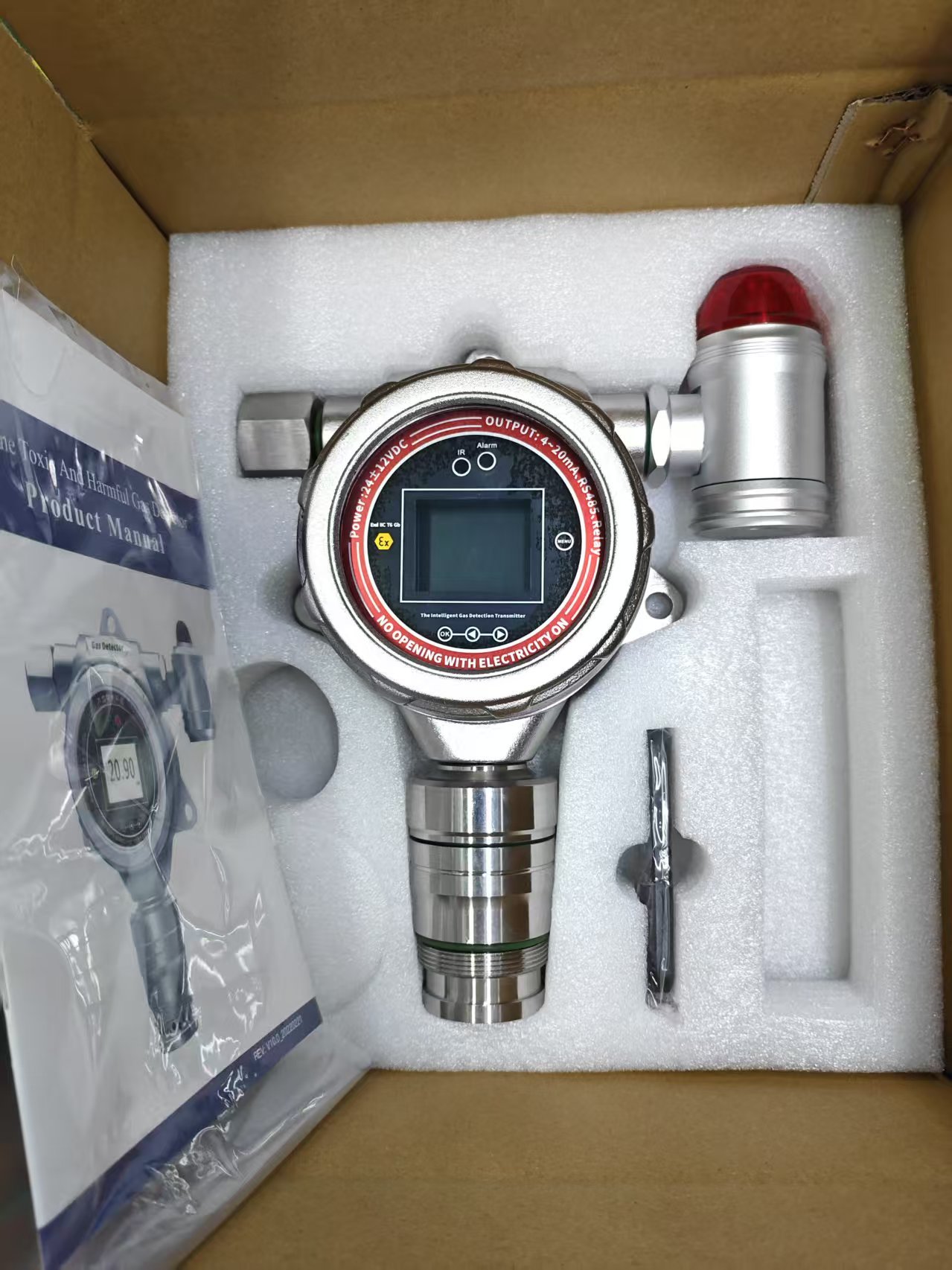

Accessories Manual, qualification certificate, warranty card, outer packaging box
Working Voltage 12 ~ 30VDC direct current, the standard power supply for single equipment is 24V, DC stabilized voltage switching power supply of 1A or greater than 1A
Working Method Fixed type installation, online detection, diffusion type measurement; and it is possible to select the measurement of pipeline type, flow-through type, and pump-suction type.
Connecting Cable Adopted 4 ~ 20mA three-core shielding cable, adopted four-core for RS485, when the distance exceeded 100 meters, the single wire diameter ≥1.5mm; and the shielding layer will be connected to the earth.
Optional items Alarms; Wireless Transmission; Pretreatment System; SD Card;
Temperature and Humidity Measurement;
Accessory for connection with computer for monitoring.
Installation Type Accessories
(Optional configuration)
 Wall mounting bracket, mounting clips for fixation on the pipes (1/2", 3/4" pipe),
stainless steel threaded welding seat or flange to be installed on the pipeline (it is necessary to mark the flange or pipe size, such as DN50, DN15 ...),
rain cover, 24VDC or 220AC sampling pump (sampling distance is 10 m),
vacuum pump (sampling distance is 40 m),
24V switching power supply, pressure reducing valve, flow meters




APPLICATION


MIC500S LPG Gas Leakage Detector Methane Hydrogcarbon Industrial Gas Leak Detector 8
