MIC500S Gas Detector 12-30V with LCD Display for Combustible Toxic Gases
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | MIC500S | Function | Measure Gas Leakage And Concentration |
|---|---|---|---|
| Detecting Gas | Combustible Gas/H2S/CO/O2/H2S/H2/VOC | Output Signal | 4-20mA, RS485, Hart, Relay |
| Customized Support | OEM, ODM, OBM | Weight | 2.5kg |
| Class Of Protection | IP65/IP66/IP67 | Humidity | 0-95%RH (no Dew) |
| Detection Mode | Diffused/Pipeline/Pump Suction | Power Supply | 12-30V |
| Alarm Type | Sound+Light Alarm | Display | LCD Display |
| Usage | Industrial Production,Personal,Gas Probe Controller-bus Type,industrial Combustible Gas Toxic Gas Leak Alarm,Commercial | Sampling Method | Diffusion,Internal Pump,fixed |
| Size | 230*152*90mm | ||
| Highlight | MIC500S gas detector with LCD display,fixed gas detector for combustible gases,toxic gas detector 12-30V |
||
Product Description

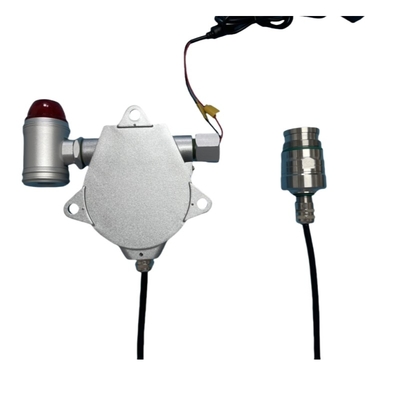

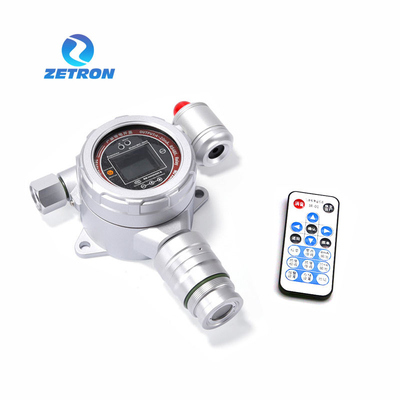

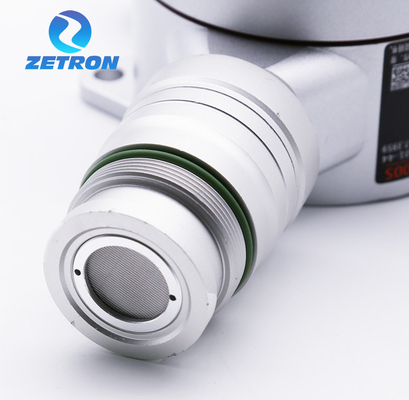

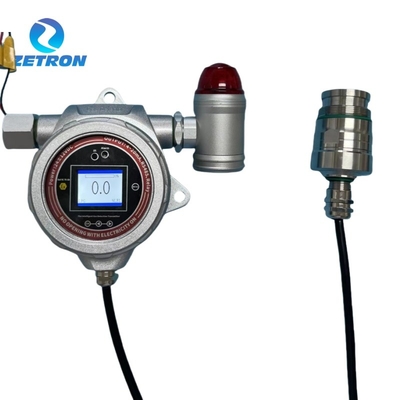

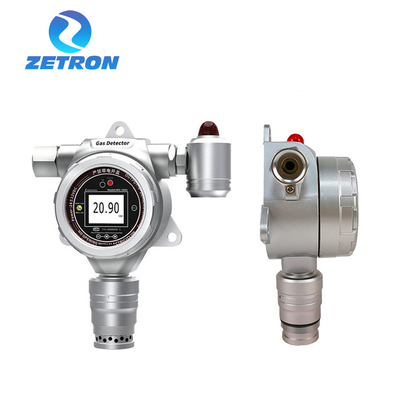

MIC500S CLO2 Gas Leak Detector CH3Br Gas Alarm Detector Tester
Professional-grade gas detection system with LCD display for continuous monitoring of over 500 gas types. Ideal for industrial safety applications.
Key Features
- Comprehensive Gas Detection: 24-hour continuous monitoring capability for over 500 gas types
- Flexible Measurement Units: Switch between 7 display units (PPM, mg/m3, Vol%, LEL%, PPHM, ppb, mg/l)
- Advanced Interface: 1.7-inch high-definition color screen showing real-time concentration and alarm status
- Multiple Communication Options: Wired or wireless remote monitoring with various output signals (4-20mA, RS485, frequency output, HART protocol)
- System Integration: Compatible with secondary instruments, PLCs, DCS systems and other industrial control equipment
Technical Specifications
| Detection Gas | EX, Toxic gases, oxygen, carbon dioxide, flammable and explosive gases, TVOC, etc. |
|---|---|
| Range | 0~1, 10, 100, 1000, 5000, 50000 ppm (mg/m³); 0~100% LEL; 0~200 mg/L; 0~20%, 50%, 100% VOL; Custom ranges available |
| Dimensions | 210*170*85mm (L*H*W) |
| Weight | 1.8 Kg |
| Installation | Pipeline Type or Wall Mounting |
| Display | 1.7-inch high-definition color screen |
| Environment | Temperature: -40℃ ~ +70℃ Humidity: ≤10 ~ 95% RH (regular) |
| Approvals | IP65; Exd Ⅱ CT6 |
| Power Supply | 12-30VDC (standard 24V), DC stabilized voltage switching power supply of 1A or greater |
| Accessories | Manual, qualification certificate, warranty card, outer packaging box |
| Optional Items | Alarms, Wireless Transmission, Pretreatment System, SD Card, Temperature/Humidity Measurement, Computer monitoring accessories |
