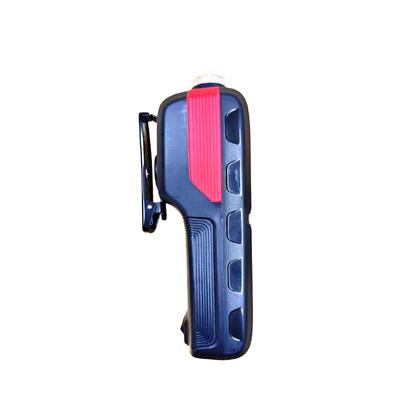

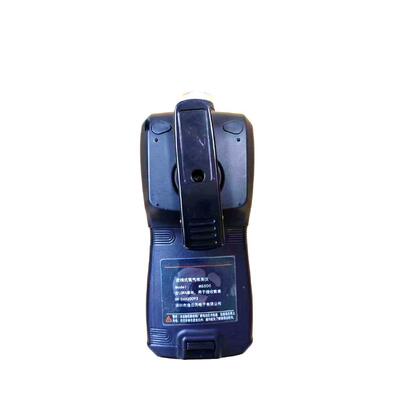

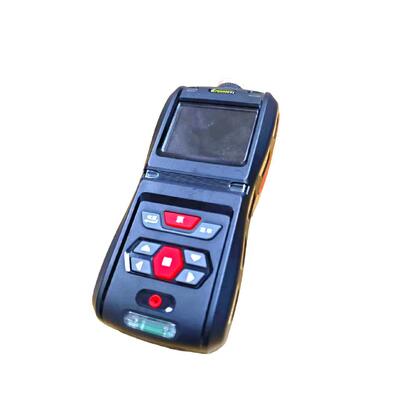

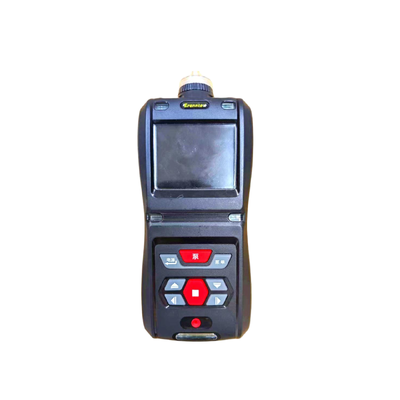

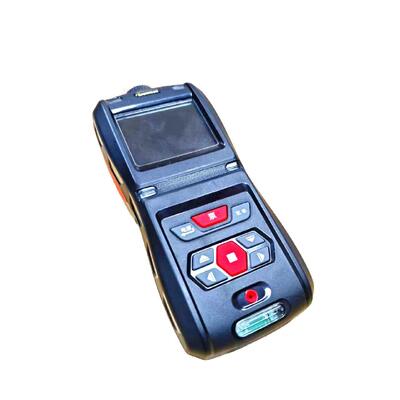

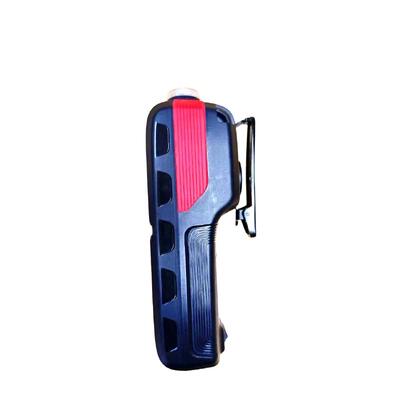

Zetron MS500 Multi-Gas Personal Protection Detector (H2S/O2/LEL/CO/CO2) - Portable, Rapid Response, High Precision
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Portable Gas Analyzer | Model Number | MS500 |
|---|---|---|---|
| Gas Unit | PPM, Mg/m3, Vol%, LEL%, PPHM, Ppb, Mg/l. | Type | Portable Multi Gas Detector, Infrared |
| Warranty | 12 Months | Color | Black |
| Protection Level | IP66 | Customized Support | OEM, ODM, OBM |
| Weight | 350g | Size | 180*78*33mm |
Product Description
MS500 Portable Gas Detector
OVERVIEW
MS500 combines precision engineering with rugged functionality, offering comprehensive and simultaneous monitoring of up to five atmospheric hazards, including flammable, toxic, and oxygen gases. It is ideal for environments that require strict safety compliance and proactive risk management.
PARAMETERS
|
Measuring gas
|
CO/H2S/LEL/O2/CO2
|
|
Measuring range
|
0-1000,2000,5000ppm
Other ranges can be customized
|
|
Resolution
|
0.1 ppm
1 ppm
Other ranges can be customized
|
|
Sensor type
|
Other Sensor: Infrared, Electrochemical, catalytic combustion, thermal conductivity, PID photoionization, and so on.
Other Sensor can be customized
|
|
Measuring type
|
Built-in pump-suction type
|
|
Response time
|
T90<20s
|
|
Display
|
2.5-inch high-definition color screen
|
|
Alarm method
|
sound & light + vibration alarm
|
|
Battery
|
DC3.7V, 3000mA high capacity rechargeable polymer battery
|
|
Data storage
|
Standard capacity is 100,000 entries.
|
|
Working temperature
|
-40 ℃ ~ + 70 ℃
|
|
Working humidity
|
0 ~ 95% RH
|
|
Housing
|
Rubber enclosure
|
|
Standard accessories
|
Manual, qualification certificate, warranty card, USB charger (including the data cable), high-grade aluminum instrument case,
belt clip, humidity dust filter |
|
Dimension (L×W×H)
|
180×78×33mm
|
|
Weight
|
350g
|
|
Ex grade
|
Ex ia IIC T4 Ga Intrinsically safe type
|
|
Ingress protection
|
IP66
|
PARAMETERS
Simultaneous Gas Monitoring: Can monitor 1 to 5 gases at once.
Gas Library: Supports over 500 types of gases.
Imported, High-Sensitivity Sensors: Guarantees stable, accurate, and long-lasting performance.
Rapid Response: Response time of ≤20 seconds, ensuring quick intervention.
Accuracy: ±2% Full Scale, delivering high precision for regulatory compliance.
Data Logging: Stores up to 100,000 data entries with customizable storage modes (real-time or fixed intervals).
Multi-Port Data Transfer: USB and RS232 ports for easy, high-speed data extraction.
Wireless Reporting: Built-in Bluetooth for direct connection to a wireless printer for real-time report printing on-site.
Display: 2.5-inch color screen with three viewing modes: Single-channel concentration, Multi-channel overview, and Real-time concentration curve.
Advanced Alarm System: Multi-layered, with sound, light, vibration, visual cues, concentration, under-voltage, and failure alerts.
Configurable Alarms: Customizable low/high concentration thresholds and alarm settings (TWA/STEL).
APPLICATION
MS500 Multi-Gas Personal Protection Detector is a state-of-the-art portable gas analyzer designed to provide continuous, real-time monitoring of hazardous gases including H2S, O2, LEL, CO, and CO2. Engineered for personal safety in high-risk environments, the MS500 offers rapid response times and high precision, ensuring immediate detection and protection against toxic or explosive gases. Featuring advanced, imported sensors and a user-friendly interface, this device allows workers to monitor multiple gases simultaneously while maintaining compliance with stringent safety standards. With a durable, explosion-proof design, an IP65 rating for dust and water resistance, and wireless reporting capabilities, the MS500 is the ideal solution for ensuring personal safety in confined spaces, industrial plants, and environments with high gas exposure risks.
