Product Details
Product Name Fixed Gas Detector Gas Unit PPM
Place Of Origin Beijing, China Alarm Audible+Visual
Weight 1.6(kg) Size 180*140*92mm (L*H*W)
High Light

mic 100 fixed gas detection system

,

mic 100 fixed detector

,

carbon monoxide fixed detector

Leave a Message
Product Description

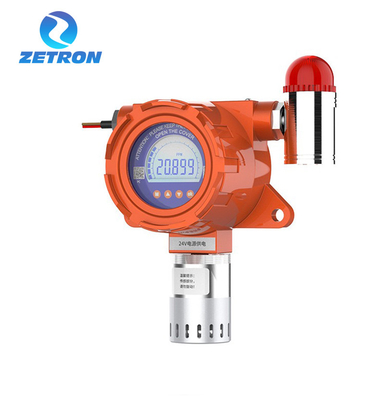

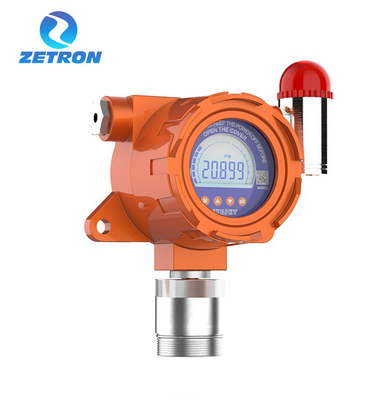

MIC100 Series
Online Toxic and Harmful Gas Detector



OVERVIEW


MIC100 Series gas detector can be used in 24 hours continuous online monitoring of concentrations of single gas in the field. The gas types for detection are more than 500 types.
Output can be simply integrated into a Distributed Control System (DCS) to provide warnings and enable control of high levels in the working environment.
The strong, durable, and explosion-proof shell and fluorocarbon surface treatment process is suitable for use in a variety of hazardous places and corrosive environments, it is wear-resistant.

Industrial Carbon Monoxide Fixed Detector Co Gas Monitor Online Gas Monitoring System 0Industrial Carbon Monoxide Fixed Detector Co Gas Monitor Online Gas Monitoring System 1Industrial Carbon Monoxide Fixed Detector Co Gas Monitor Online Gas Monitoring System 2Industrial Carbon Monoxide Fixed Detector Co Gas Monitor Online Gas Monitoring System 3Industrial Carbon Monoxide Fixed Detector Co Gas Monitor Online Gas Monitoring System 4Industrial Carbon Monoxide Fixed Detector Co Gas Monitor Online Gas Monitoring System 5Industrial Carbon Monoxide Fixed Detector Co Gas Monitor Online Gas Monitoring System 6Industrial Carbon Monoxide Fixed Detector Co Gas Monitor Online Gas Monitoring System 7Industrial Carbon Monoxide Fixed Detector Co Gas Monitor Online Gas Monitoring System 8Industrial Carbon Monoxide Fixed Detector Co Gas Monitor Online Gas Monitoring System 9



FEATURES



◆ Imported Sensors, Accurate, Fast and Stable
①It can be used in 24 hours continuous online monitoring of gas concentration, and the types for detection are more than 500 types.
②The gas units can be customized: Normally PPM, %Vol, %LEL, other: mg/m3, PPHM, ppb, mg/l.

◆ Diversified Data Communication Methods
① It is possible for real-time monitoring via the wired or remote wireless transmission and network transmission.
② Three-wire system 4 ~ 20mA standard signal and standard bus RS485 (mod bus-RTU) simultaneous output.
③ It is possible to select frequency output 200-1000Hz, Hart protocol signal, 1 ~ 5V output, SMS alarm, wireless transmission.



◆ Infrared Remote Control
Standard configuration includes the infrared remote control, it is possible for one-key operation via an infrared remote control function key, which can achieve the operation without opening the cover in hazardous situations. such as the functions like modification of the alarm point, density calibration, zero-point calibration and so on.



SPECIFICATION



Gas
Carbon Monoxide
Sensor
Electrochemical
Range
0-500,1000,2000ppm
Can be customized
Resolution
0.1 ppm; Can be customized
Sampling Method
diffusion/pump
Control Method
Controller/Infrared remote control
Allowable error
≤±3% FS; Can be customized
Work Method
24-hour continuously monitoring
Working Temp
-20 ℃ ~ + 70 ℃;(Standard Values)
-40 ℃ ~ + 80 ℃;(Limit Value)
Humidity
10 ~ 95% RH
Voltage
≤2.5 W(DC24V)
Power
12~30VDC
Protection level
IP65
Explosion-proof
Exd Ⅱ CT6
Cable
PVVP3 * 1.0mm 2
Transmission Distance
≤1000m
Installation
Wall-mounted;Ceiling-mounted;Vertical pipe-mounted; Horizontal pipe-mounted
Size(mm)
180*140*92
Weight(Kg)
1.6
Kit
Manual, qualification certificate, warranty card, outer packaging box

APPLICATION



All the cases require the fixed installation, and online detection of gas concentrations such as petroleum, chemical, pharmaceutical, combustion gas distribution, warehousing, smoke gas analysis, air governance, and so on.
