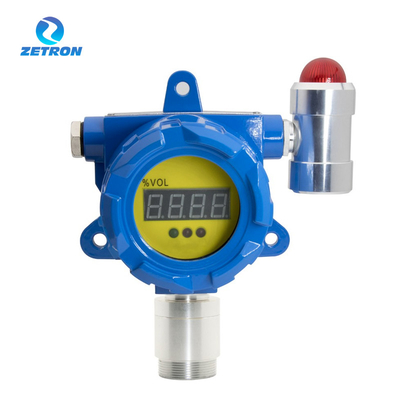

BH-60 Zetron Toxic Gas Leakage Detector Wall Mounted For Industrial Scene

  • BH-60 Zetron Toxic Gas Leakage Detector Wall Mounted For Industrial Scene
Place of Origin China
Brand Name Zetron
Certification CE
Model Number BH-60
Minimum Order Quantity 1 set
Packaging Details 160*70*28mm
Delivery Time 1-10 work days
Payment Terms T/T, Western Union, MoneyGram, D/P, D/A, L/C
Supply Ability 1000 SET / week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Fixed Gas Detector Installation Method Wall-mounted
Response Time T＜60s Shell Material Aluminum
Exterior Dimensions 190x150x95mm（L×W×H） Explosion Proof Grade Exd ⅡC T6 Gb
Highlight

Zetron Toxic Gas Leakage Detector

,

Toxic Gas Leakage Detector Wall Mounted
Leave a Message
Product Description

BH-60 Fixed Gas Detector

OVERVIEW


BH-60 fixed gas detector adopts an advanced catalytic gas sensor or electrochemical sensor, which can translate the gas concentration in the air to the digital signal output. The detector working with the gas controller can be used to detect gas in refineries, chemical plants, LPG stations, boiler rooms, painting plants and other places with gas exists.



PARAMETER

Product type BH-60 fixed gas detector/transmitter
Explosion-proof grade Exd ⅡC T6 Gb
Response time ≦30S
Power supply DC24V±10%
Working temperature -20℃～50℃
Output current 4-20mA
Working humidity 0-95%RH
Contact output Free contact output, max power 1kW
Single input 4~20mA and RS485
Installation method Wall-mounted
Shell material Aluminum
Dimensions 190x150x95mm(L×W×H)

Model Range Resolution L-alarm H-alarm
CO 0-1000ppm 1ppm 50ppm 150ppm
O2 0-30%vol 0.1%vol 19.5%vol 23.5%vol
H2 0-1000ppm 1ppm 50ppm 150ppm
H2S 0-100ppm 0.1ppm 10ppm 20ppm
CH4 0-100%LEL 1%lel 20%LEL 50%LEL
C2H4O 0-100ppm 1/0.1ppm 20ppm 50ppm
EX 0-100%LEL 1%lel/1%vol 20%LEL 50%LEL
C3H8 0-100%LEL 1%lel/1%vol 20%LEL 50%LEL
C2H5OH 0-100%LEL 1%lel/1%vol 20%LEL 50%LEL
NH3 0-100ppm 0.1/1ppm 20ppm 50ppm
CL2 0-20ppm 0.1ppm 5ppm 10ppm
O3 0-10ppm 0.1ppm 2ppm 5ppm
SO2 0-20ppm 0.1/1ppm 5ppm 10ppm
PH3 0-20ppm 0.1ppm 5ppm 10ppm
CO2 0-5000ppm 1ppm/0.1%vol 1000ppm 2000ppm
NO 0-250ppm 1ppm 50ppm 150ppm
NO2 0-20ppm 0.1ppm 5ppm 10ppm
HCN 0-50ppm 0.1/0.01ppm 10ppm 20ppm
HCL 0-20ppm 0.001/0.1ppm 5ppm 10ppm
CH2O 0-20ppm 1/0.1ppm 5ppm 10ppm
HF 0-100ppm 0.01/0.1ppm 2ppm 5ppm
C7H8/C8H10 0-20ppm 0.01/0.1ppm 5ppm 10ppm



Note: Not all gases and ranges are listed, if you need more information, please contact us.
