Product Details
Product Name Gas Analyzer Portable Model Number MS500
Gas Unit PPM, Mg/m3, Vol%, LEL%, PPHM, Ppb, Mg/l. Type Portable Multi Gas Detector, Infrared
Warranty 12 Months Color Black
Protection Level IP66 Customized Support OEM, ODM, OBM
Weight 350g Size 180*78*33mm
Highlight

odm carbon monoxide gas leak detector

,

iso carbon monoxide gas leak detector

Leave a Message
Product Description

MS500 Multi Gas Detector



OVERVIEW


In some specific places there are often gas emissions, such as petrochemical, coal, metallurgy, chemical, municipal gas, environmental monitoring and many other places. And some of these gases may be dangerous, such as flammable, explosive or contaminated, then you need to use the gas detector to detect them.



MS500 portable toxic and hazardous gas detector is used for portable and rapid detection of toxic and hazardous gas concentration, temperature and humidity measurement and alarm. It adopts 2.5-inch HD color screen to display the concentration in real time, and selects imported brands (Honeywell, Japan fundamental, UK City, UK Alpha, UK Dynament, Switzerland Membrapor, etc.) gas sensors, the main detection principles are: electrochemical, infrared, catalytic combustion, thermal conductivity, PID light ion. The MS500 can detect gas concentrations in pipelines or confined spaces, atmospheric environments, gas leaks or various background gases such as ammonia or oxygen with high concentrations of single gas purity, and more than 500 types of gases.



FEATURES



1. Fast and efficient gas detection function

①It is possible to simultaneously detect 1 ~ 5 types of gases, and the types for detection are more than 500 types.
②There are 7 gas units to display, and the units can be switched freely. Units that can be selected: PPM, mg/m3, Vol%, LEL%, PPHM, ppb, mg/l.



2. Rich human-machine interface

①2.5-inch high-definition color screen, display the information such as real-time concentration, alarm, time, temperature, humidity, storage, and so on; the menu interface adopted high definition simulation graphics to display the function name of each menu.
②Graphical display, and use the form of curve to reflect the trend of gas concentration changes in a certain period of time.
③Simultaneously display the concentrations of five types of gases, repeatedly display the concentration of single-channel gases in large font, and display the real-time curve. And it is possible to switch among three display modes.



3. Large data storage & multi storage moeds

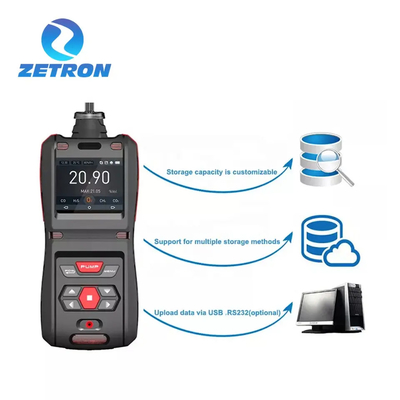

①Standard configuration is the data storage capacity for 100, 000 entries; real-time storage and fixed time storage are supported, or only the data of the alarm concentration will be stored. Large capacity can be customized.
②It is supported to use the local host to view, and delete data, and upload the data via USB, RS232 interface or infrared communication to the computer for data analysis or printing.



4. Powerful and convenient humanized function

①Built-in humidity dust filter, preliminary treatment of the detection gas, so as to protect the equipment.
②Multiple alarm modes, and multi-directional and three-dimensional indication alarm states. It includes sound & light alarm, vibration alarm, display screen visual alarm.
Alarm types include: concentration alarm, under-voltage alarm, and failure alarm.
Multiple alarm mode settings: low alarm, high alarm, interval alarm, and weighted average alarm.
③Zero-point automatic tracking; long-term use will not be affected by the zero drift.
④Multi-level calibration for target points, can ensure the linearity and accuracy of the measurements.



5. Muktiple optional functions, meet the personalized needs

· Temperature and humidity measurement function
· 1.2 m retractable sampling handle (1-10 meter hose, and the standard length is 1 meter)
· 0.4 meter stainless steel sampling handle (with dust filter, not retractable)
· high temperature sampling and cooling filter handle
· high temperature humidity pretreatment system
· multiple humidity dust filter
· hanging rope
· CD-ROM (upper level computer communication software)
· External mini wireless infrared printer



APPLICATION



The detector is widely used in petroleum, chemical industry,environmental protection, metallurgy, refining, gas, biochemical medicine, agriculture, fire protection, Archaeology and other industries and places that need safety monitoring for toxicity and harmfulness, explosion prevention.



PARAMENTERS



Gases to be detected
Arbitrary combination of 1 ~ 5 types of gases such as toxic gases, oxygen gas, carbon dioxide, inflammable and explosive gases,
TVOC, and so on.
Optional configuration: temperature and humidity measurements.



Application scenarios

All the cases which requires the portable rapid detection of gas concentrations such as petroleum, chemical, pharmaceutical,
environmental protection, combustion gas distribution, warehousing, smoke gas analysis, air governance, and so on.



Detection range

0 ~ 1, 10, 100, 1000, 5000, 50000, 100000ppm, 200 mg/L, 100%LEL, 20%, 50%, 100%Vol, can be selected; and other ranges can be customized.
Resolution
0.01ppm or 0.001ppm (0 ~ 10 ppm);
0.01ppm (0 ~ 100 ppm),
0.1ppm (0 ~ 1000 ppm),
1ppm (0 ~ 10000 ppm or more),
0.01 mg/l (0 ~ 200 mg/l),
0.1% LEL,
0.01%,
0.001% Vol
Detection principle



Electrochemical, catalytic combustion, infrared, thermal conductivity, PID photoionization, and so on, depending on the type of gas, range, field environment and user demand.
Sensor service life
Electrochemical principle: 2 ~ 3 years; Oxygen gas: 2 years or 6 years can be selected; infrared principle: 5 ~ 10 years; catalytic combustion: 3 years; thermal conductivity: 5 years; PID photoionization: 2 ~ 3 years.



Allowable error
≤±2% F.S (other or higher precision levels can be customized)
Linearity
≤±2%
Repeatability
≤±2%
Uncertainty
≤±2%
Response time
T90≤20 seconds
Recovery time
≤30 seconds
Working environment
Temperature: -40 ℃ ~ + 70 ℃, humidity: ≤10 ~ 95% RH, and built-in filters can be used in high humidity or high dust environment.

Sample gas temperature

-40 ℃ ~ + 70 ℃, and the optional configuration of high-temperature sampling and cooling filter handle will be possible to detect
the smoke gas at the temperature of 800 ℃ or higher.
Temperature and humidity measurement
Optional configuration: temperature at -40 ℃ ~ + 70 ℃, accuracy level at 0.5 ℃; humidity at 0 ~ 100% RH, precision level at 3 % RH
Power supply
3.6VDC, 5500mA high capacity rechargeable polymer battery
Detection mode

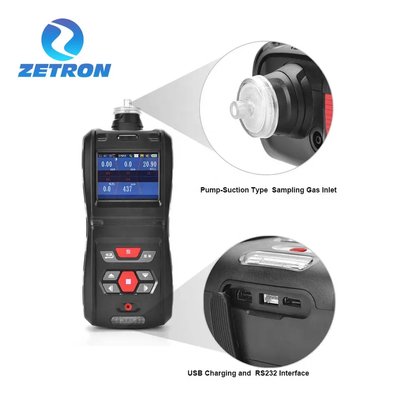

Built-in pump-suction type measurement, and flow rate at 500 ml / min. Calibration flow rate should be greater than 500 ml / min,
three-way pipe should be connected, so as to ensure that the excessive gas will be discharged from the bypass
Alarm mode
It is possible to set as sound & light alarm, vibration alarm, sound & light + vibration alarm, Turning off the alarm.
Communication interface
USB (charging and communication), optional: RS232, infrared communication, automatic recognition
Data storage
Standard configuration is the data storage capacity for 100, 000 entries
Protection level
IP66
Explosion-proof type
Intrinsically safe type
Explosion-proof mark
Exia II CT6
Exterior dimensions
180×78×33mm (L×W×H)
Weight
350g
Standard accessories
Manual, qualification certificate, warranty card, USB charger (including the data cable), high-grade aluminum instrument case,
belt clip, humidity dust filter



Optional items
Temperature and humidity measurement function, 1.2 m retractable sampling handle (1-10 meter hose, and the standard length is 1
meter), 0.4 meter stainless steel sampling handle (with dust filter, not retractable), high temperature sampling and cooling
filter handle, high temperature humidity pretreatment system, multiple humidity dust filter, hanging rope, CD-ROM (upper level
computer communication software), external mini wireless infrared printer
