MIC500S Fixed Gas Detector with LCD Display 4-20mA Output IP65

  • MIC500S Fixed Gas Detector with LCD Display 4-20mA Output IP65
  • MIC500S Fixed Gas Detector with LCD Display 4-20mA Output IP65
Place of Origin China
Brand Name Zetron
Certification CE ATEX SIL
Model Number MIC500S
Minimum Order Quantity 1 set
Price USD 890/set - 7298/set
Packaging Details 260x170x100 mm
Delivery Time 3-5 work days
Payment Terms T/T,Western Union,MoneyGram,D/P,D/A
Supply Ability 3000 SET / month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name MIC500S Function Measure Gas Leakage And Concentration
Detecting Gas Combustible Gas/H2S/CO/O2/H2S/H2/VOC Output Signal 4-20mA, RS485, Hart, Relay
Customized Support OEM, ODM, OBM Weight 2.5kg
Class Of Protection IP65/IP66/IP67 Humidity 0-95%RH (no Dew)
Detection Mode Diffused/Pipeline/Pump Suction Power Supply 12-30V
Alarm Type Sound+Light Alarm Display LCD Display
Usage Industrial Production,Personal,Gas Probe Controller-bus Type,industrial Combustible Gas Toxic Gas Leak Alarm,Commercial Sampling Method Diffusion,Internal Pump,fixed
Size 230*152*90mm
Leave a Message
Product Description

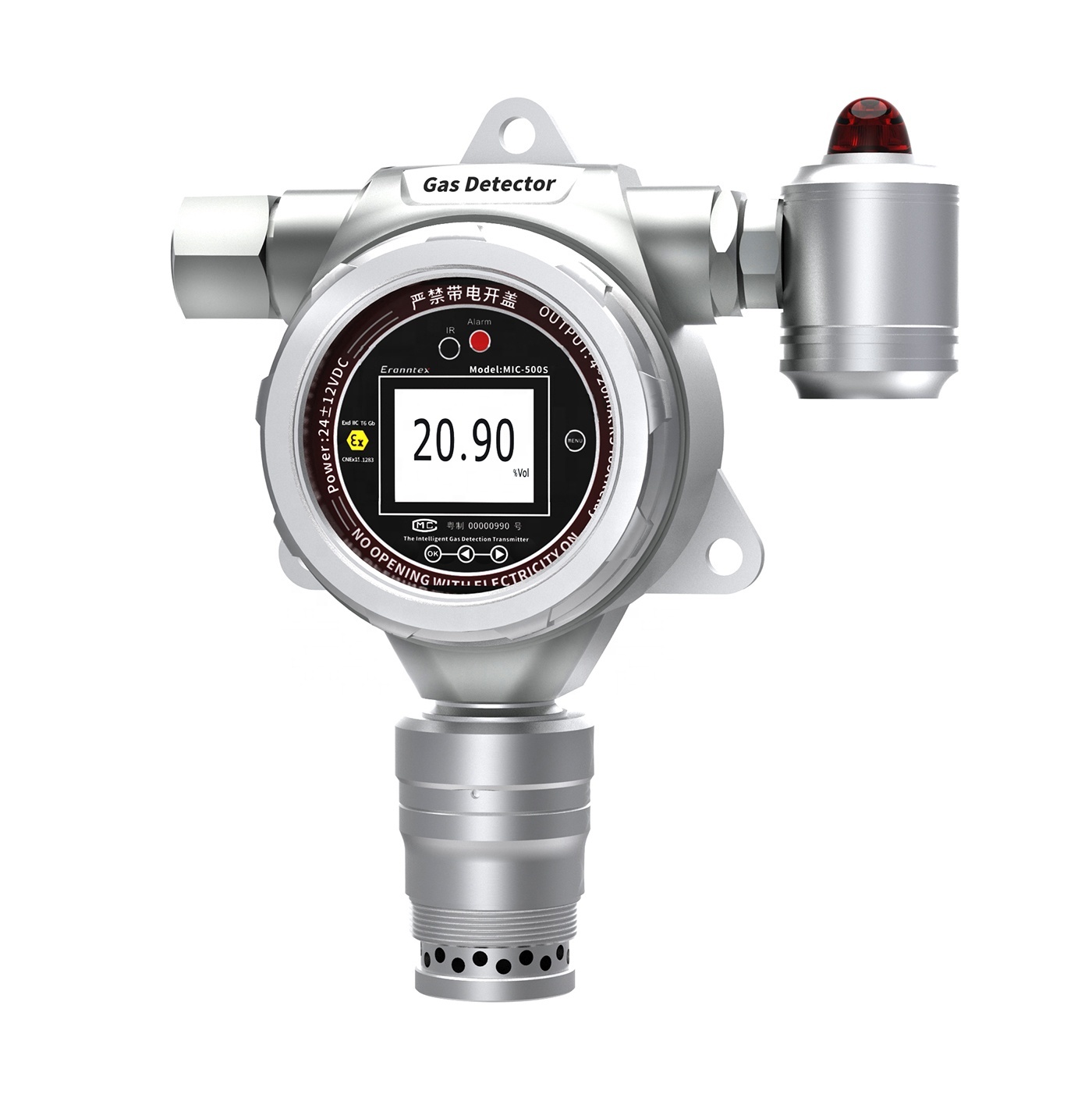

MIC500S LCD Display Multi-functional Fixed Gas Analyzer Detector
LPG Gas Leakage Detector Methane Hydrocarbon Industrial Gas Leak Detector
Overview

The MIC500S single gas detector provides continuous 24-hour online monitoring of concentrations for over 500 types of gases in industrial environments.

  • 4-20 mA analogue output for integration with Distributed Control Systems (DCS)
  • Simple installation, service, and calibration with no hot work permit required
  • Quick-change PID sensor accessible in seconds
  • Durable explosion-proof shell with fluorocarbon surface treatment
  • Wear-resistant design suitable for hazardous and corrosive environments
  • Straightforward calibration procedure
  • Easy integration with control systems
MIC500S Fixed Gas Detector with LCD Display 4-20mA Output IP65 0 MIC500S Fixed Gas Detector with LCD Display 4-20mA Output IP65 1 MIC500S Fixed Gas Detector with LCD Display 4-20mA Output IP65 2 MIC500S Fixed Gas Detector with LCD Display 4-20mA Output IP65 3 MIC500S Fixed Gas Detector with LCD Display 4-20mA Output IP65 4 MIC500S Fixed Gas Detector with LCD Display 4-20mA Output IP65 5 MIC500S Fixed Gas Detector with LCD Display 4-20mA Output IP65 6 MIC500S Fixed Gas Detector with LCD Display 4-20mA Output IP65 7
Specifications
Detection Gas EX, Toxic gases, oxygen, carbon dioxide, flammable and explosive gases, TVOC, etc.
Range 0~1, 10, 100, 1000, 5000, 50000 ppm (mg/m³); 0~100% LEL; 0~200 mg/L; 0~20%, 50%, 100% VOL; Other ranges customizable
Size 210×170×85mm (L×H×W)
Weight 1.8 Kg
Installation method Pipeline Type Wall Mounting Type
Display 1.7-inch high-definition color screen
Environment Temperature: -40℃ ~ +70℃ Humidity: ≤10 ~ 95% RH (regular)
Approvals IP65; Exd Ⅱ CT6

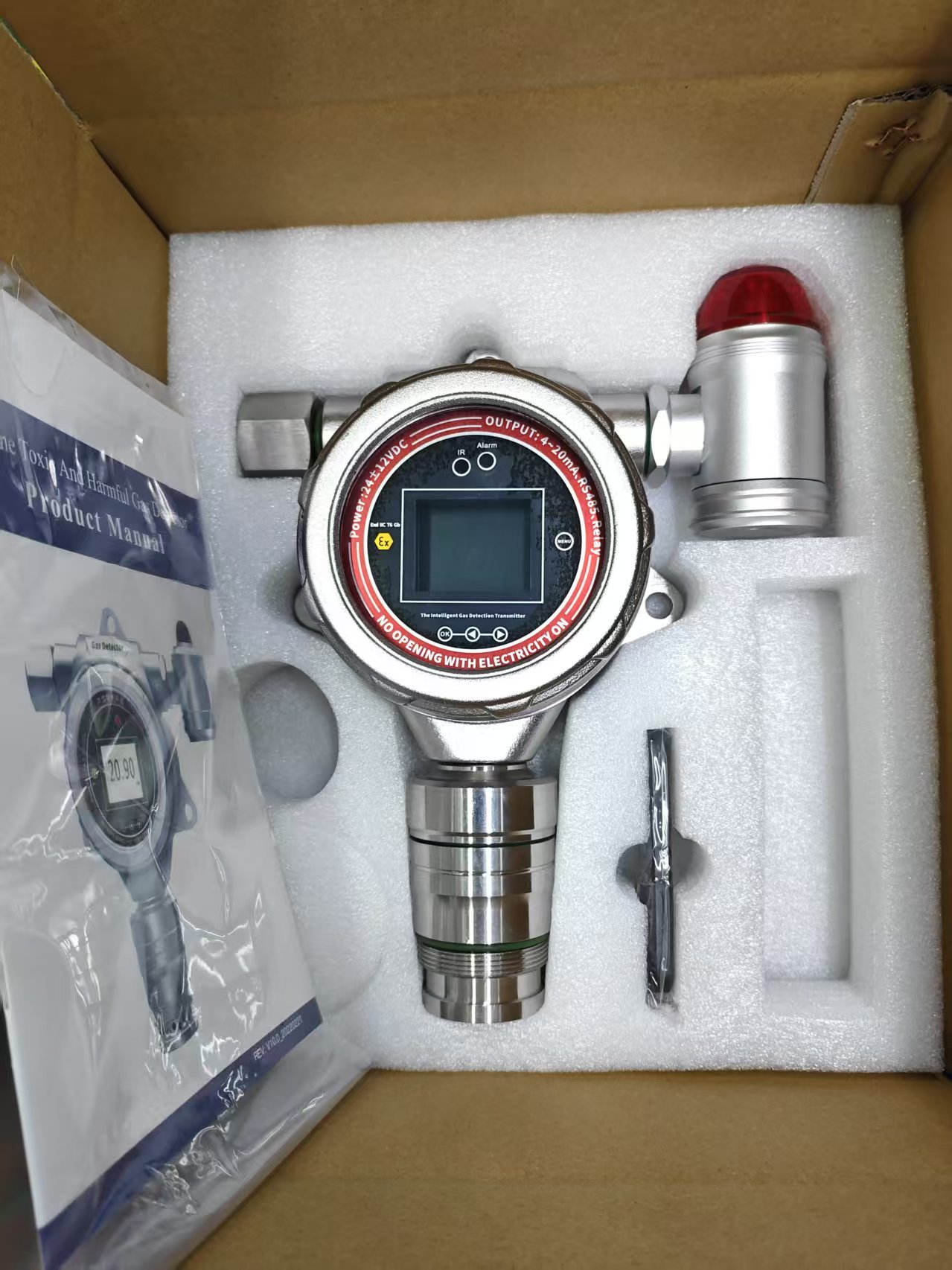

Accessories Manual, qualification certificate, warranty card, outer packaging box
Working Voltage 12 ~ 30VDC direct current, standard power supply 24V, DC stabilized voltage switching power supply of 1A or greater
Working Method Fixed type installation, online detection, diffusion type measurement; optional pipeline type, flow-through type, and pump-suction type
Connecting Cable 4 ~ 20mA three-core shielding cable, four-core for RS485 (single wire diameter ≥1.5mm for distances over 100 meters)
Optional items Alarms; Wireless Transmission; Pretreatment System; SD Card; Temperature and Humidity Measurement; Computer monitoring accessories
Installation Type Accessories (Optional) Wall mounting bracket, pipe mounting clips (1/2", 3/4"), stainless steel threaded welding seat/flange, rain cover, sampling pumps (10m/40m), power supplies, pressure reducing valve, flow meters
Applications
MIC500S Fixed Gas Detector with LCD Display 4-20mA Output IP65 8
